Product Details:
- Supply voltage : 18-32 VDC
- Power consumption : Nominal 6 W
- Maximum 7.5 W
- Operating temperature : –15°C to +70°C
- Storage temperature : -25°C to +70°C
- Max rel. humidity : 96% non-condensing
- IP Code : IP20
- ENV properties : IACS E10
- IEC 60945
- Vibration : 4 G

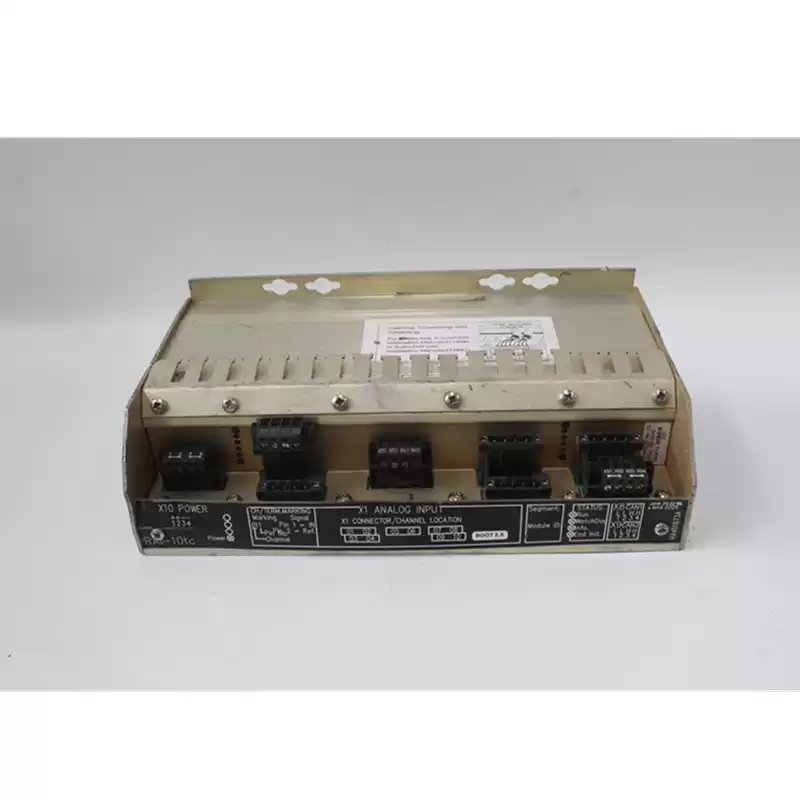

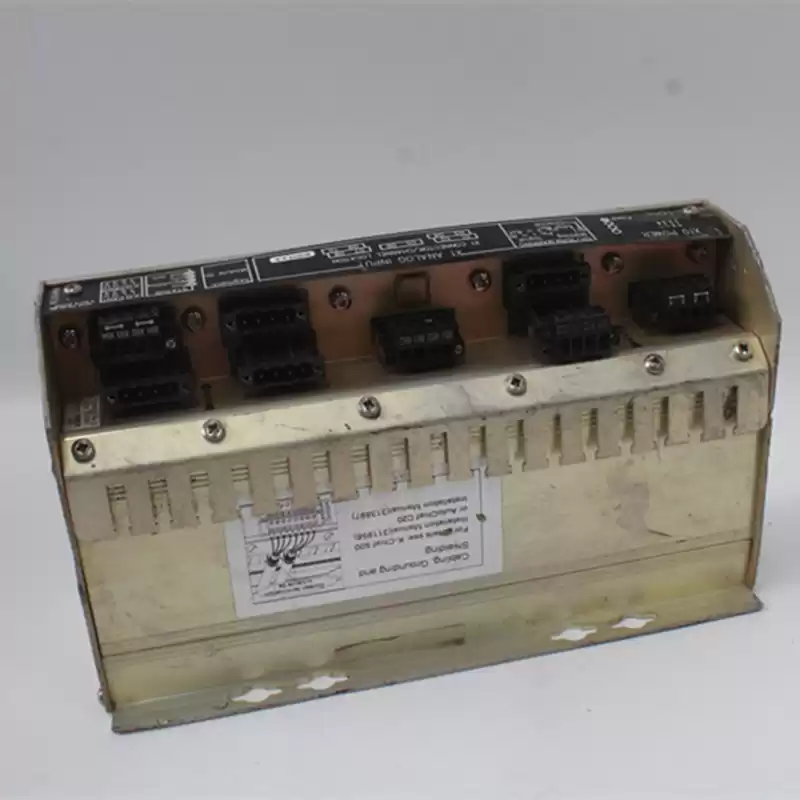

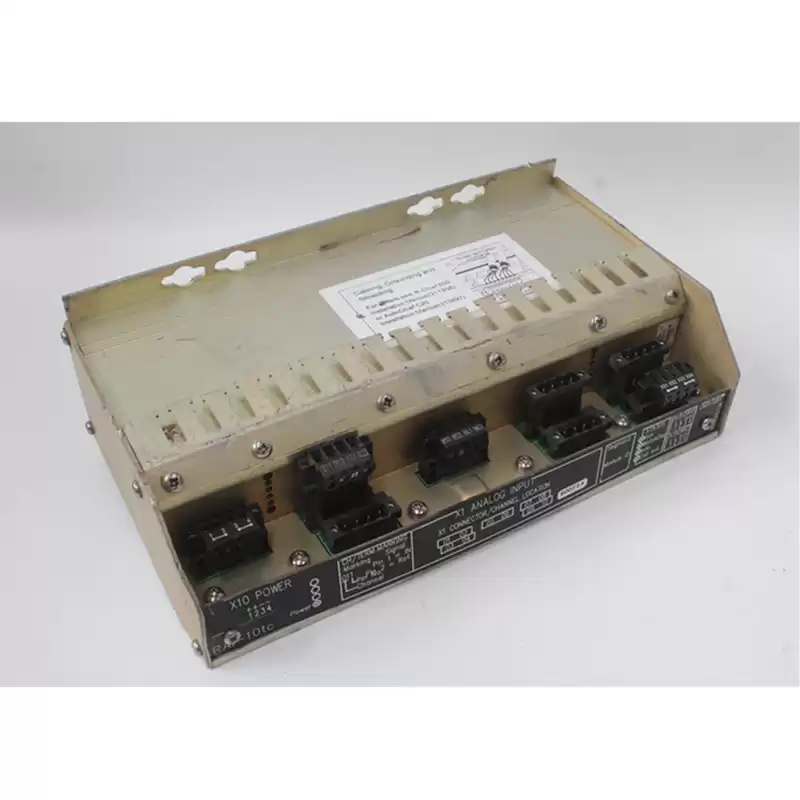

- Connections, pluggable screw terminals : I/O 2 terminals 2.5 mm2
- Power 4 terminals 2.5 mm2
- CAN bus 4 terminals 2.5 mm2
- Signal types: Thermocouples with CJC = Cold
- Junction compensation According to IEC 584 : Element: R/S/J/E/N 0-200, 0-600ºC
- Element: B 0-600ºC
- Element: T 0-200ºC
- Element: K 0-200, 0-600, 0-1200ºC
- Input: Differential CMV 10 [ V ]
- Accuracy : ± 0.5 [%] (Calibration required)
- Communication Interfaces : 2 CAN ports for communication with host.
- Isolation: Power: Complete isolated (DC/DC converter):
- I/O: No isolation between channels. Chassis used as 0 Volt reference.
- CAN: Complete isolated (opto coupler).
- BIST (Built In Self Test): Module temperature and power
- Type approval: DNV, LRS, BV, GL, RINA, NK, ABS, KR, PRS, RMR, CCS (allows direct mounting on engines, compressors, etc. in suitable cabinets)
