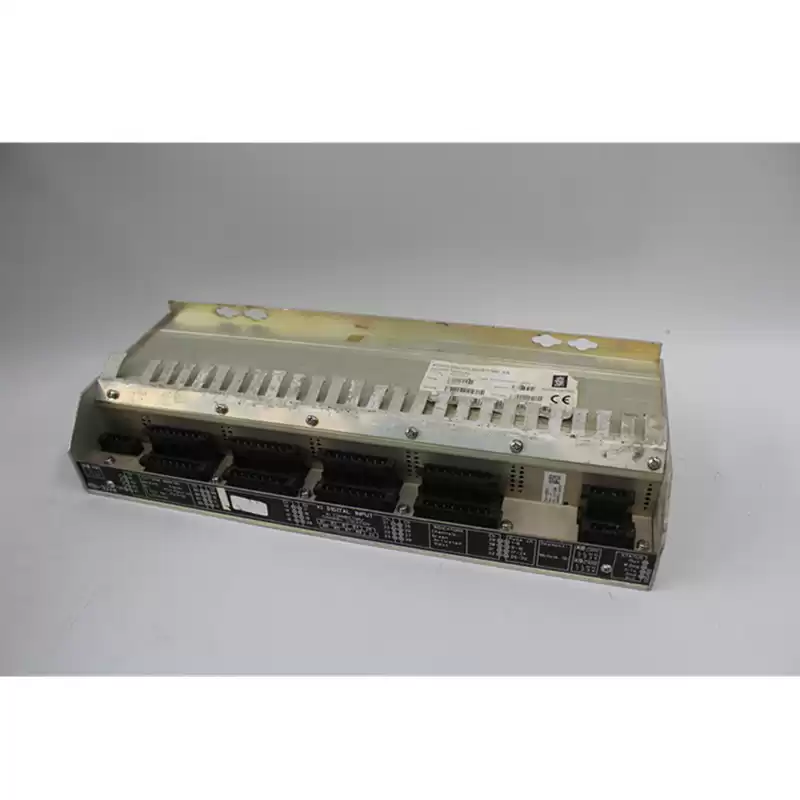

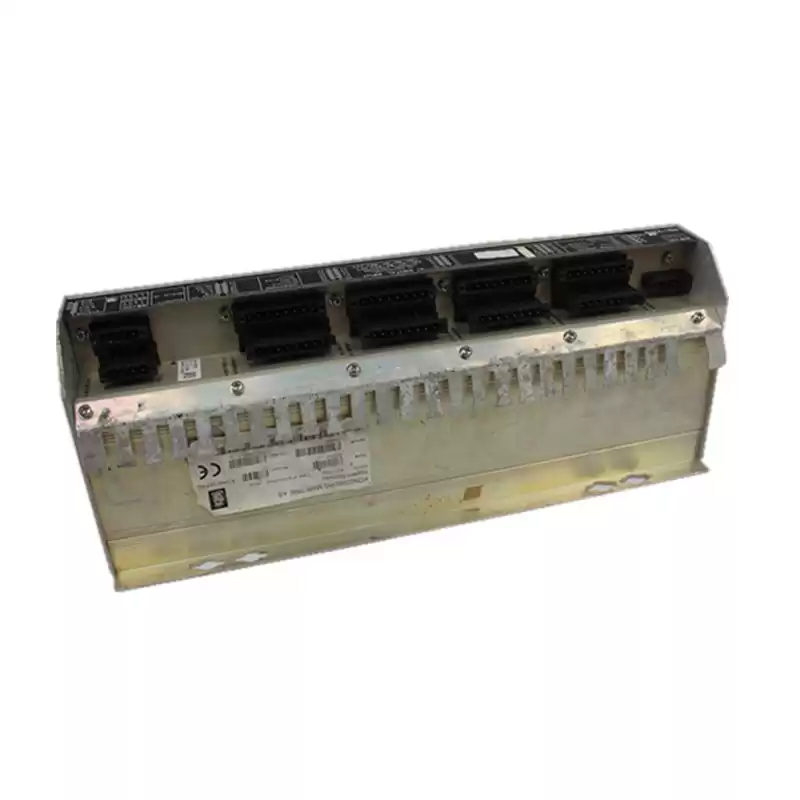

Product Details:
- Supply voltage: 18 - 32 VDC

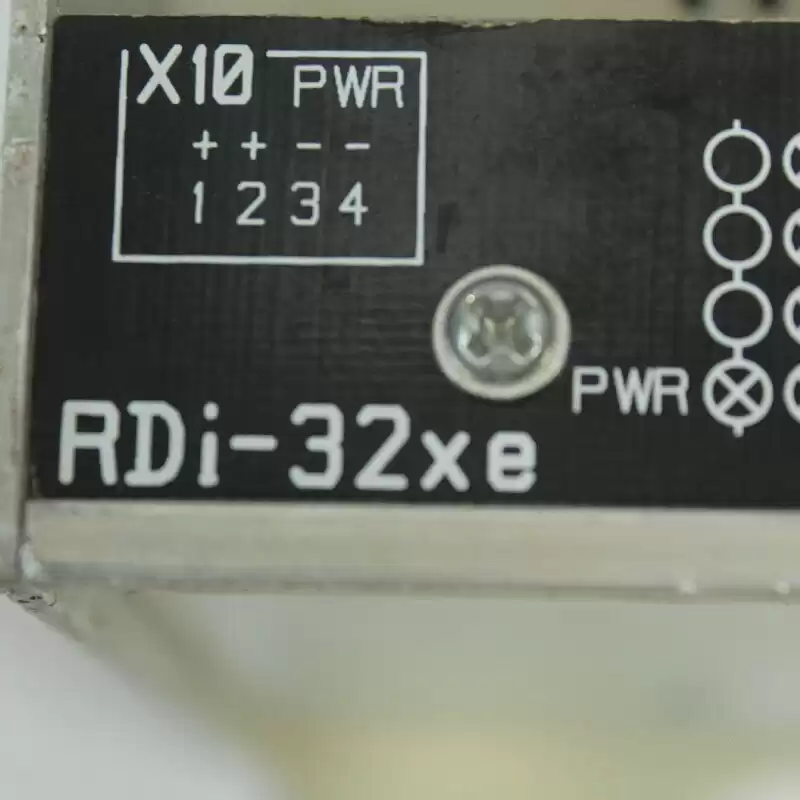

- Power consumption: 16W for RDi-32xe (With all inputs active)
- 8W for RDi-32Axe (With all inputs active)
- Operating temperature: –15°C to +70°C
- Storage temperature: -25°C to +70°C
- Max rel. humidity: 96% non-condensing
- IP Code: IP20
- ENV properties: IACS IEC 60945
- Vibration: 4 G
- Weight of unit: 1.8 kg
- Mounting: Screws (4 pcs M5)
- Connections, pluggable screw terminals
- I/O 2 terminals 2.5 mm2
- Power 4 terminals 2.5 mm2
- CAN bus 4 terminals 2.5 mm2
- Signal types: ON / OFF, normally open, normally closed.
- Specification: RDi-32xe: Dry contact (switching level approx 1.5 mA)
- RDi-32Axe: Active signal 24 VDC or AC (50-70 Hz)
- Sensor exitation voltage and current: Only for RDi-32xe, 8 mA @ 24VDC nominal.
- Communication interfaces: 2 CAN ports for communication with host.
- Isolation :
- Power: Isolated/floating from module chassis.
- Input: Supplied from 24 VDC module supply.
- CAN: Individually isolated
- Type approval: DNV, LRS, BV, GL, RINA, NK, ABS, KR, RMR, CCS (allows direct mounting on engines, compressors, etc. in suitable cabinet
