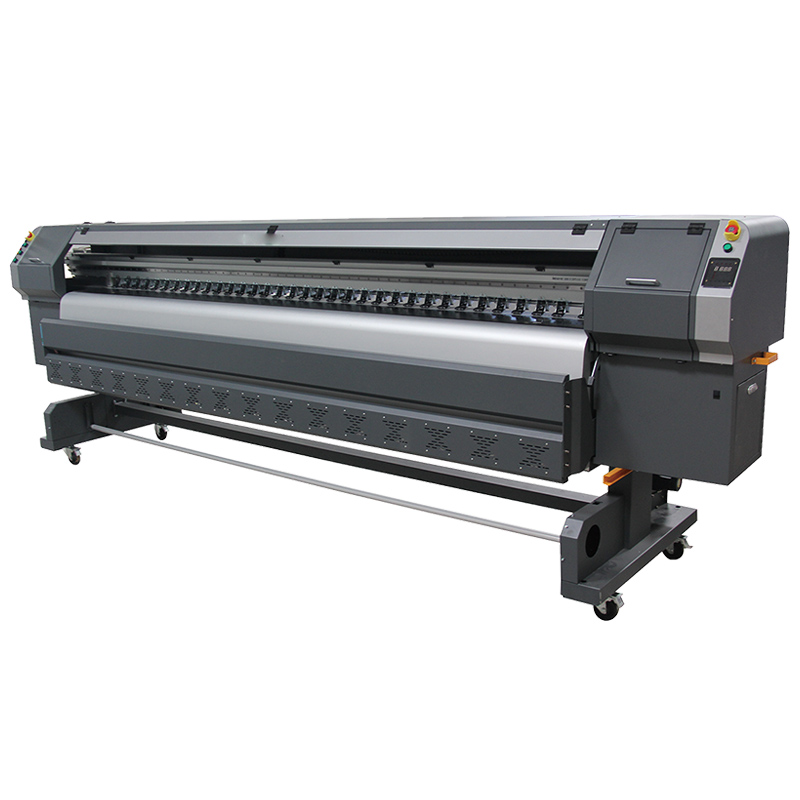

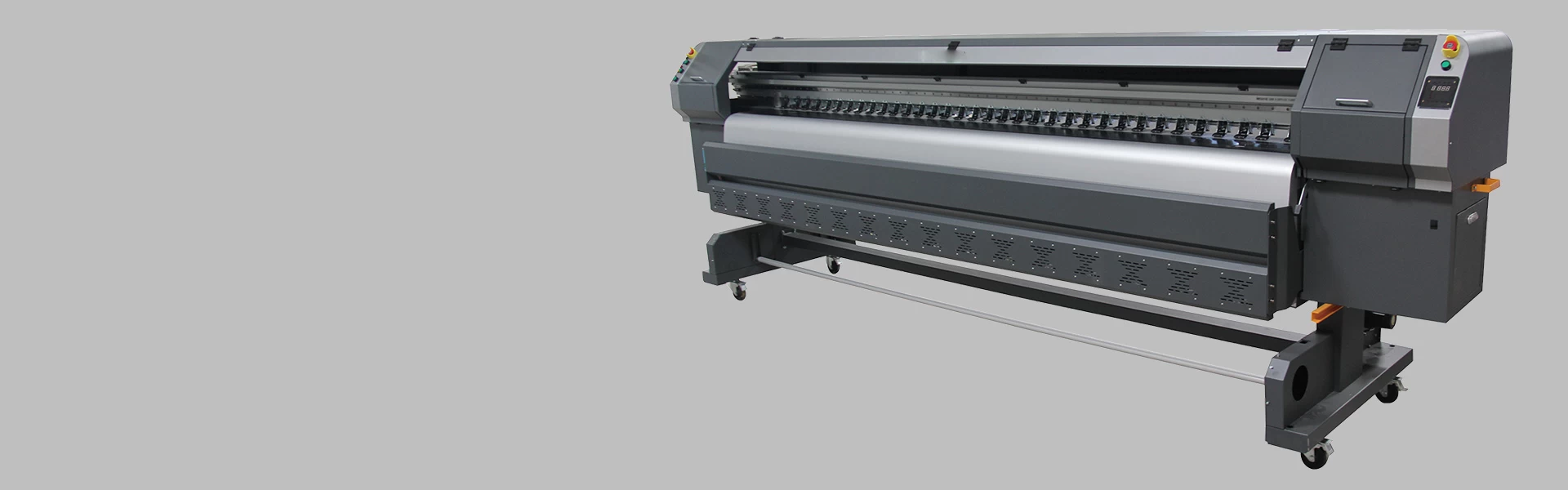

10 feet / 3.2m wide large format printer with konica minolta 512i print head
Konica print heads is one of the most steady printing heads, and also the printing system is satisfied by clients
It is not effected by working environment, such as temperature, power supply and humidity.
Technical parameters
|
|
Printer parameters
|
Konica512i Solvent Printer CK8
|
|
Printer head
|
KM512i-30pl-4H/8H
|
|
Head height
|
1-10mm
|
|
Printing width
|
3200mm
|
|
Ink
|
solvent ink
|
|
Color
|
CMYK
|
|
Printing material
|
type
|
height
|
automatic feeding
|
Drying system
|
|
PVC Flex/vinyl
|
1-10mm
|
yes
|
Infrared+fan
|
|
Ignite Frequency
|
20kHz
|
|
Print speed 8H
|
2pass
|
3pass
|
6pass
|
8pass
|
|
260㎡/h
|
180㎡/h
|
90㎡/h
|
70㎡/h
|
|
Resolution
|
480x360dpi
|
480x540dpi
|
720x1080dpi
|
720x1440dpi
|
|
File format
|
PSD/DWG/HPG/HGL/PS/EPS/JPG/TIF/BMP
|
|
RIP Software
|
PP/Maintop/Ultrprint
|
|
Auto-cleaning
|
yes
|
|
Operating environment
|
temperature：20-27°C humidity：45-75%CH
|
|
Power
|
AC220/1000W(Print),2000W(Dry)
|
|
Operate system
|
Windows XP/Win7
|
|
ComputerConfiguration
|
Windows XP SP2CPU:Intel quad core i5 memory: KST 4 GBHard disk: WD 500 g hard disk format: NTFS graphics: ATI alone
1 GB of memory drives, DVD drive C disk space: minimum 100 G
|
|
Packing Size/APP Size
|
L/W/H 5000x1200x1700mm
|
|
Weight
|
950kg
|
Applications
Outdoor billboards, flex banner, vinyl, sign display, promotions, etc.
