Korea Doosan 750kva Diesel Generator 600kw Power Generator With Engine DP222LC

Korea Brand Doosan Generator DP222LC 750kva

Facebook Twitter Pinterest LinkedIn 分享
Product Description

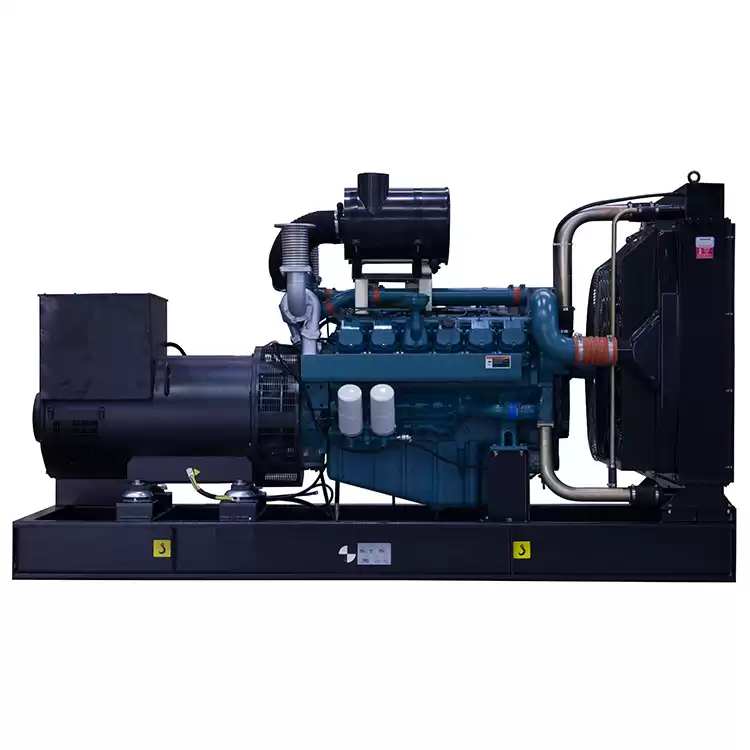

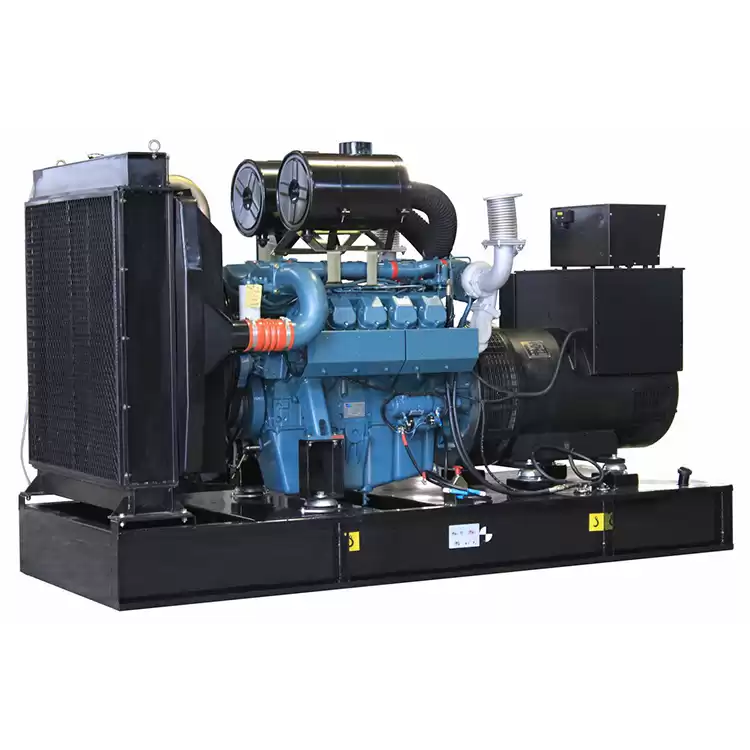

Korea Doosan 750kva Diesel Generator 600kw Power Generator With Engine DP222LC



TECHNOLOGY FEATURES:

1. Adopt the unit pump structure tested for 12 years in European markets, stable performance, reliable and average heavy repair mileage is 100,000 kilometers higher than other kind products, with 30 days more attendance in a year.
2. Adopt structures off the unit pump with the highest injection pressure and top built intake duct, short and high pressure pipe, met the emission standard, save 2 to 3 liters fuel per one hundred kilometers compared with other kind products.
3. Unique single injection pump fuel supplying system, low requirements for fuel quality, adaptable to Chinese fuel quality and guaranteed the reliability of the complete engine.
4. Noise lower than 96 decibels, the only one engine met the standard without assistant approaches in China.
5. Integrated design, compact structure, smaller and lighter than kind products by 100 to 150 kilograms.
6. Simple structure and easy to maintenance, all the repair point are on the same side with the engines; Series 2012 adopted non cylinder liner and none valve guide structure.




Engine
GENERAL ENGINE DATA
Engine manufacture
Doosan Infracore Co., Ltd
Engine brand
Doosan
Engine model
DP222LC
Engine speed (rpm)
1500
Engine output(kWm)
Standby Power
723
Prime Power
657
Engine Type
4-Cycle, V-type, 12-Cylinder, Turbo charged & intercooled (air to air)
Bore x Stroke (mm)
128 x 142
Displacment (litre)
21.927
Compression Ratio
15:1
FUEL SYSTEM
Type
Bosch type in-line pump with integrated, electromagnetic actuator
Governor
Electric type ( all speed control )
Fuel Consumption (litre/hour)
25% prime load
42.1
50% prime load
79.3
75% prime load
119.1
100% prime load
161
EXHAUST SYSTEM
Maximum Back Pressure (kPa)
5.9
Exhaust gas temp. after turbo. (prime/standby power) (°C)
478/502
Exhaust Gas Flow(prime/standby power) (m3/min)
100/108
AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (kPa)
with Clean Filter Element
2.16
with Dirty Filter Element
6.23
Intake Air Flow(prime/standby power) (m3/min)
41.8/45
COOLING SYSTEM
Cooling method
Fresh water forced circulation
Coolant capacity
Engine Only : Approx. 23 lit., With Radiator : Approx 114 lit.(standard)
Water Temperature
Maximum for standby and Prime (°C)
103
Before start of full load (°C)
40
Thermostat Type and Range
Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C
LUBRICATION SYSTEM
Lub. Method
Fully forced pressure feed type
Oil pan capacity
Max. 40 liters , Min. 27 liters
Lub oil pressure (kPa)
Idle Speed Min.
100
Governed Speed Min.
250
Maximum Oil Temperature (°C)
120
ELECTRICAL SYSTE
Battery Charging Alternator
27.5V x 45A alternator
Starting motor
24V x 7.0 kW
Battery Voltage
24V
Battery Capacity
2 x 200 Ah (recommended)
ALTERNATOR
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA49.3M65
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
750/600
----------------Standby-27°C
825/660
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single

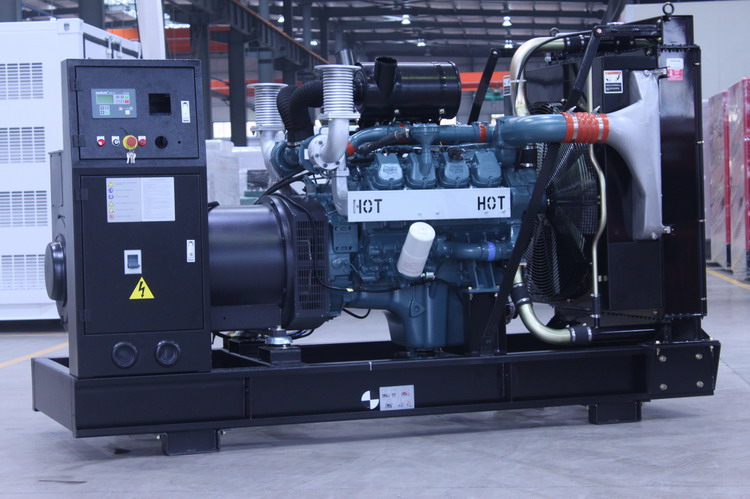

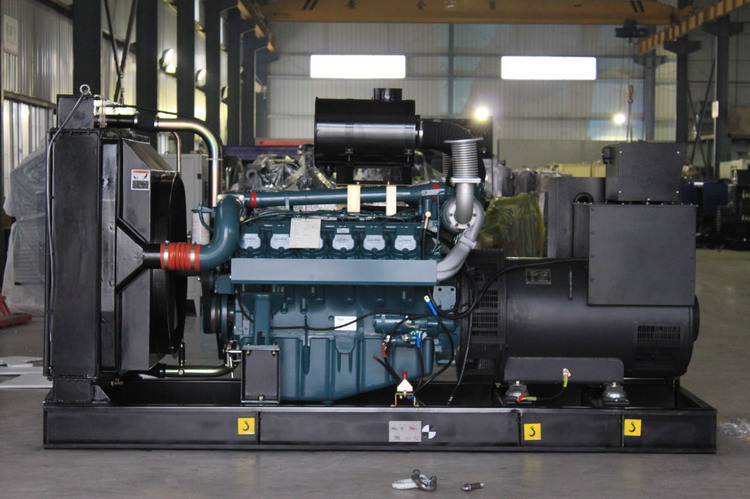

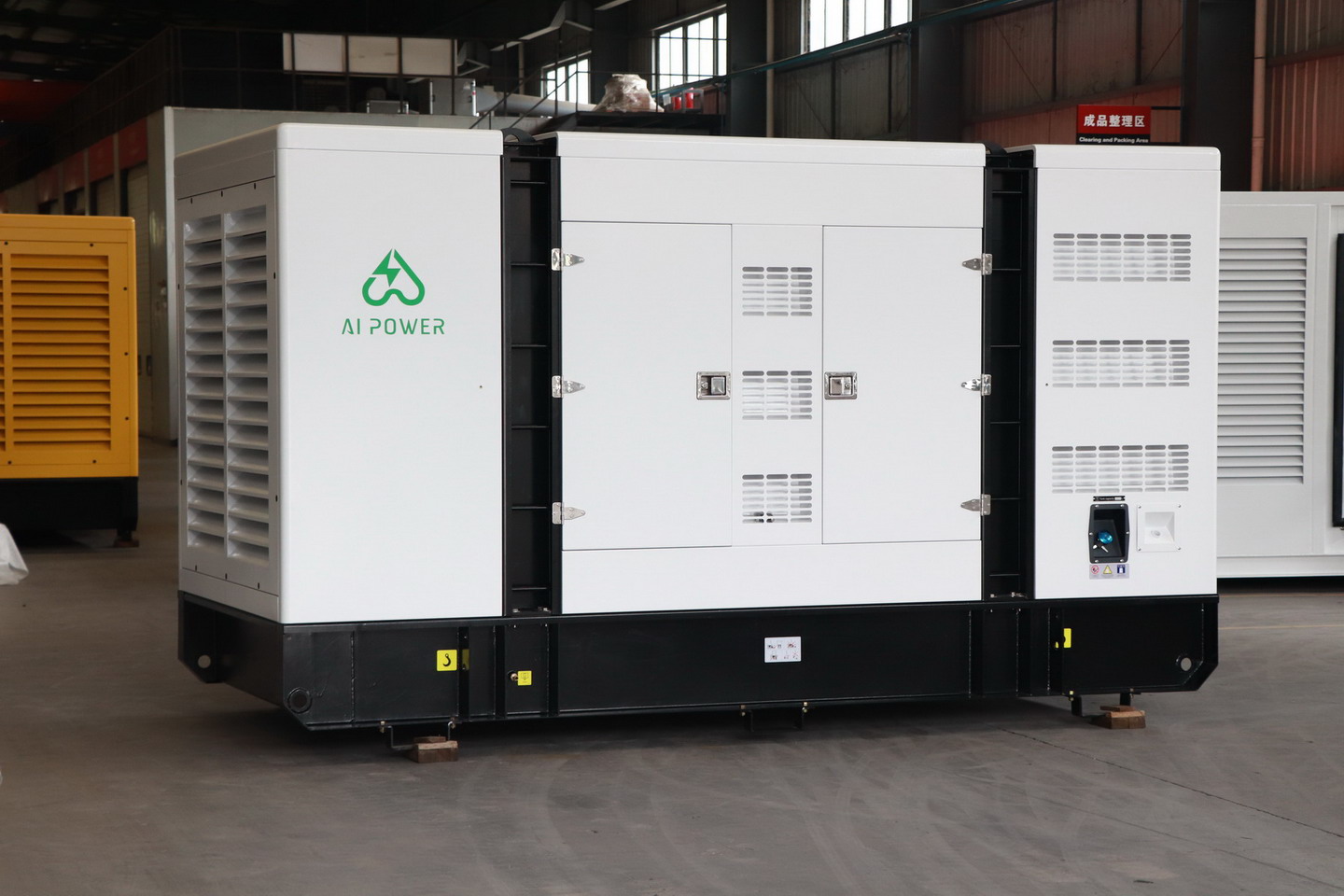

Products Show






Ai Power Company

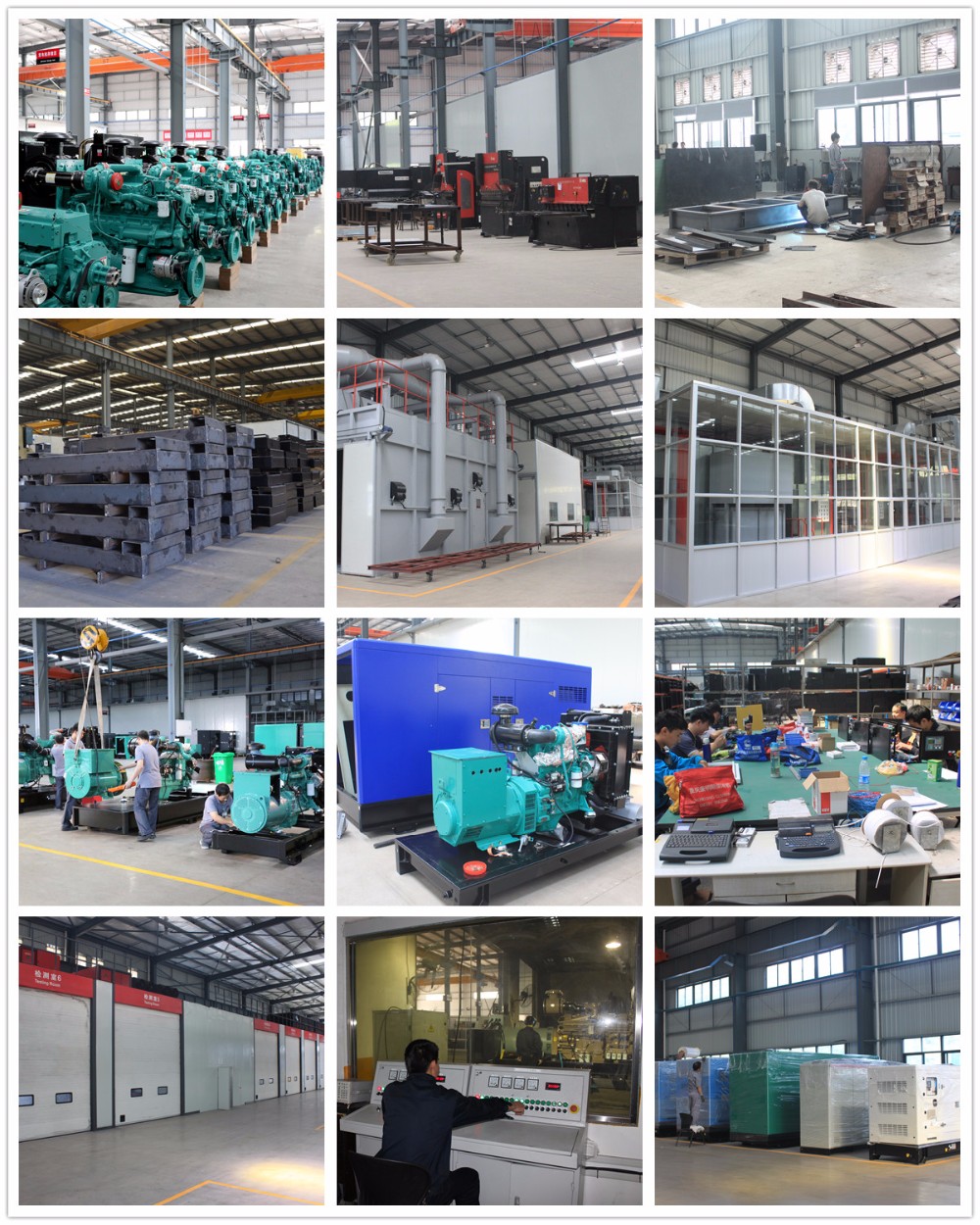

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

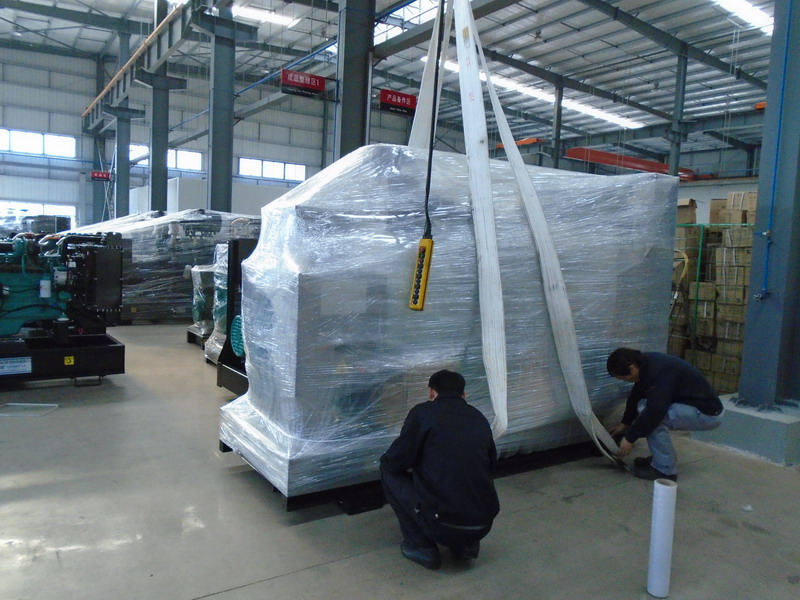

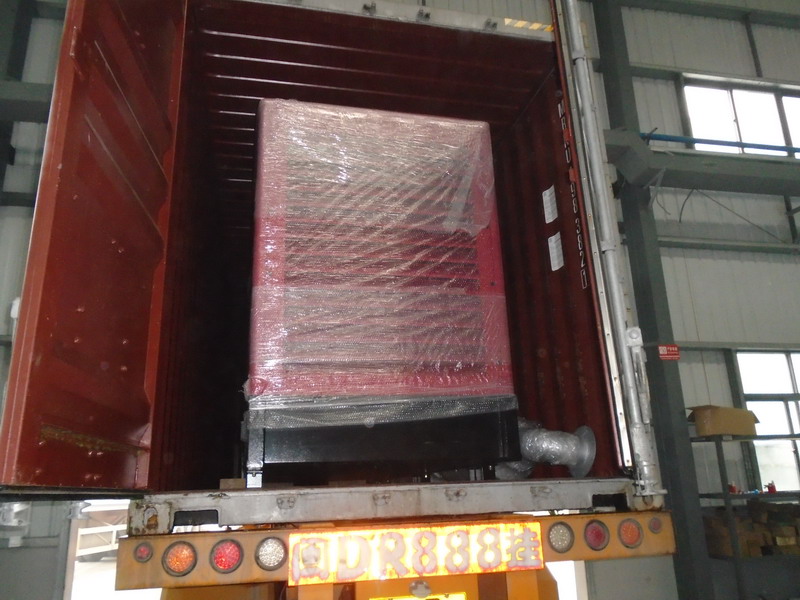

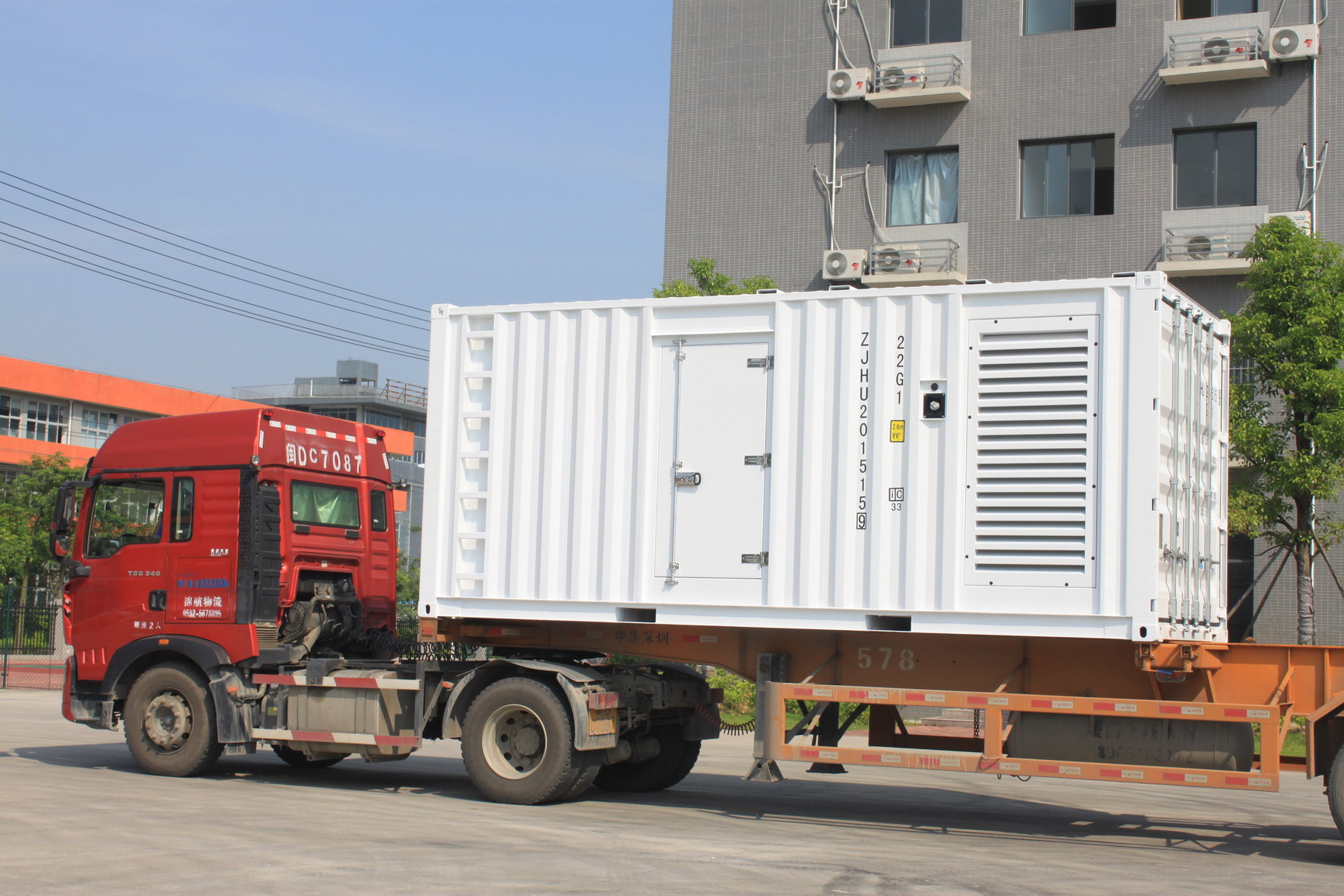

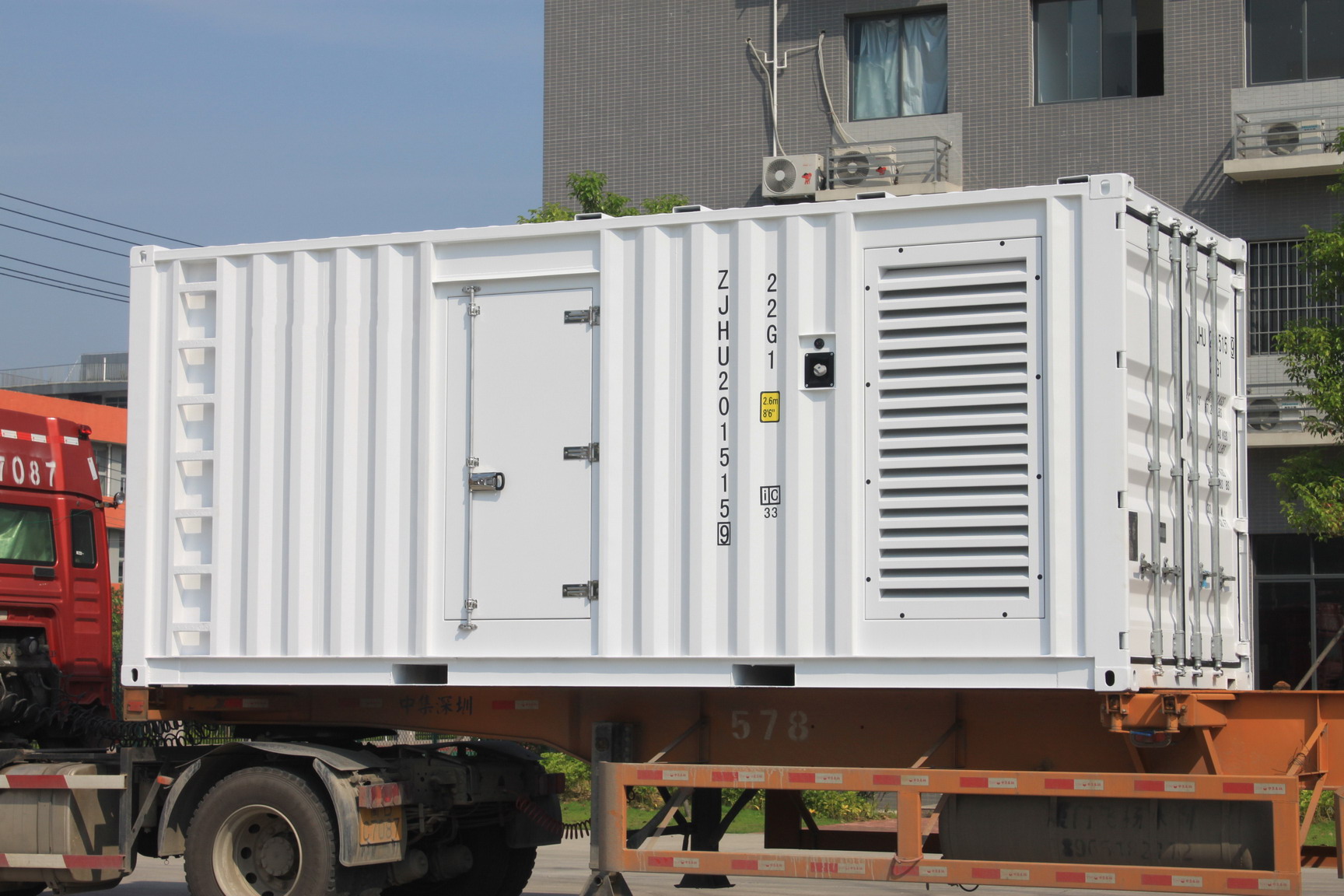

Packing & Delivery
FAQ


1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?

Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?

Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7.What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
