KP-247 58mm width Kiosk Receipt Printer

DC24V,RS232/TTL+USB interface. Full and partial cut

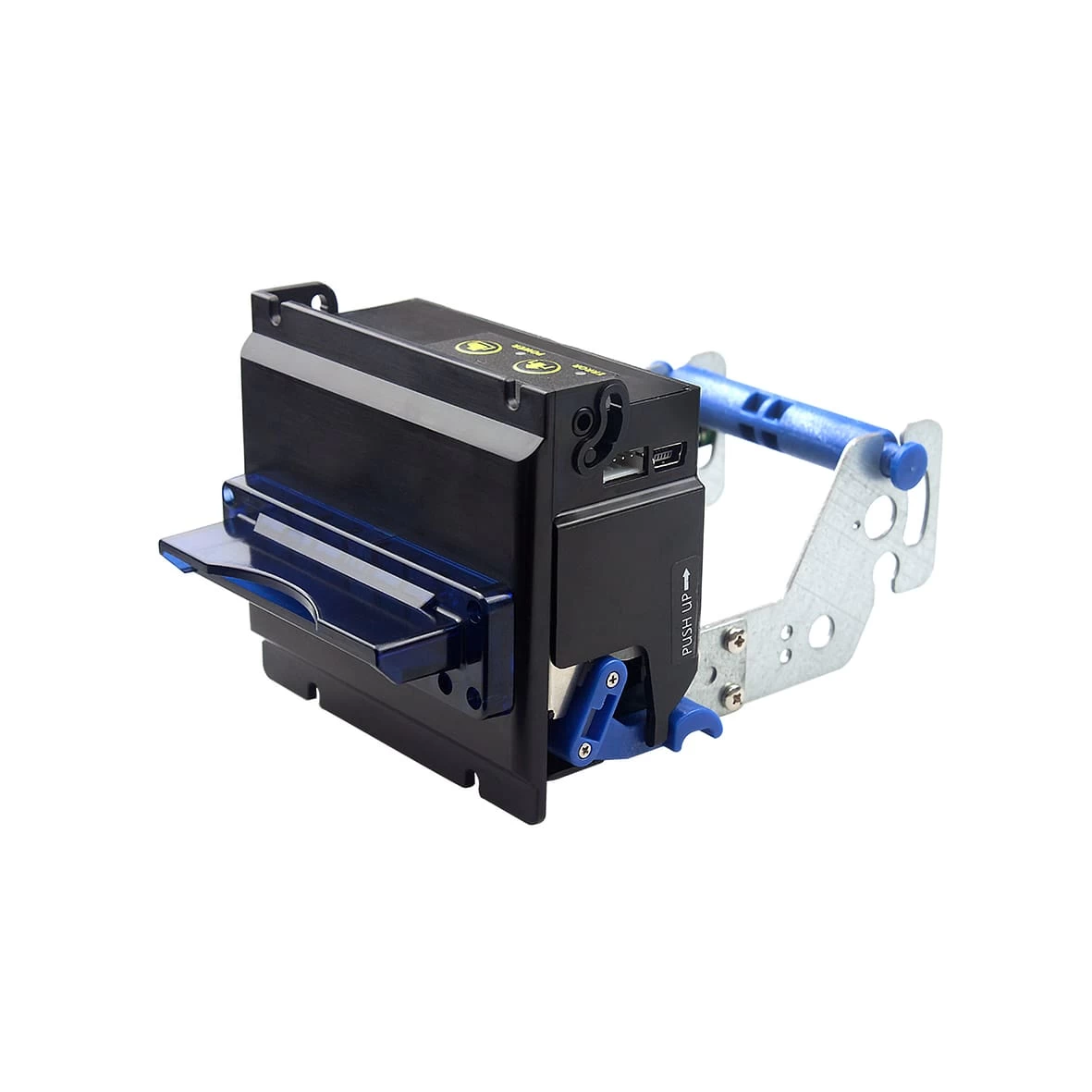

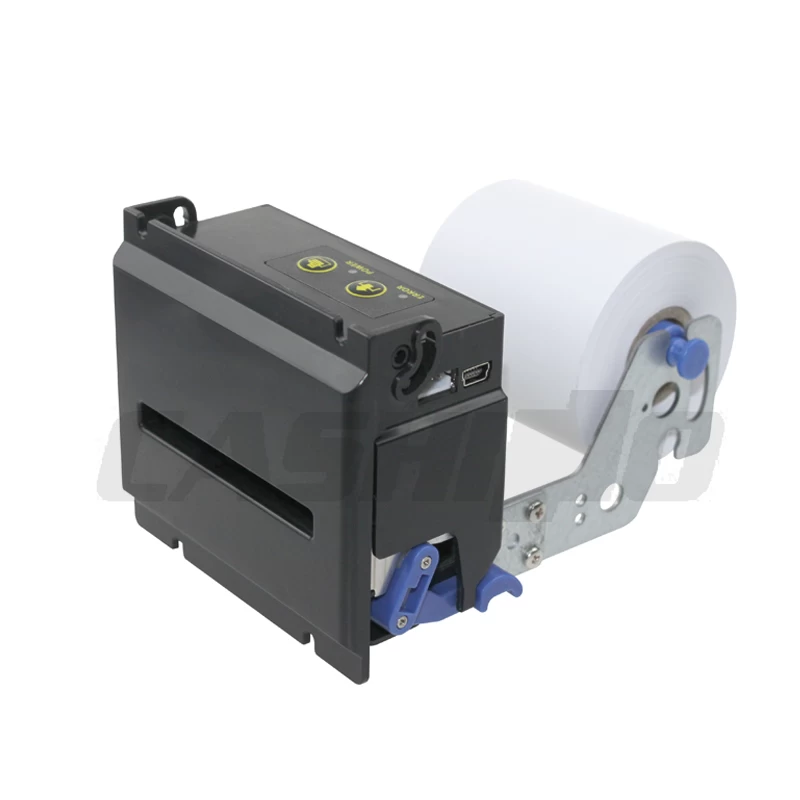

KP-247 58mm Kiosk Receipt Printer


KP-247 is an ideal solution to meet your 58mm printing needs. It allows you to print from tickets to receipts. This 58mm kiosk printer is easy to install, so they are perfect for many fields of application, such as bank agencies, kiosk terminal, etc. We also supply 80mm kiosk thermal printer.


Feathure:

1. Low cost compact kiosk printer

2. Easy operation by drop-in paper holder

3. Auto-loading

4. Support 80mm diameter paper roll

5. USB&Serial interface

6. High printing speed: 150mm/sec.


Specification:

Model No. KP247-H80/V80
Print Method Thermal line printing
Print Speed 150mm/sec
Resolution 8dots/mm (203dpi)
Number of dots/line 432dots/384dots
Paper Width 58 mm
Print Width 48/54 mm
Paper Diameter Max. 80mm
Paper Thickness 0.055~0.090mm
Character International, English, Chinese, Korean and Japanese etc.
Barcode UPC-A,UPC-E,JAN13(EAN13),JAN8(EAN8),CODE39,ITF,CODABAR,CODE128;QRcode
Interface USB+ Serial, Cash drawer port as optional
Sensor Paper end,paper near ending
LED bezel  as optional
Auto-Cutter Full cut and Partial cut by command
Operating voltage DC24V,2.5A
Temperature Operating:0°C~50°C
Storage:-20°C ~ 60°C
Humidity Operating:10%RH~80%RH
Storage:10%~90%RH
Printer Driver Windows XP / Vista / 7 /8 /10, Linux (CUPS),Android SDK, Windows SDK
External Dimensions KP247-H80: 88.7W x 120.0D x 80.0H mm
KP247-V80: 88.7W x 122.0D x 75.4H mm
Usage Kiosk terminal, self-service machine etc.




Application:

1. ATM

2. Queuing machine

3. Vending machine

4. GAS (Gas station)
5. Power charging pile


Company Information:

We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer

Our Services:

portable bluetooth printer



FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
