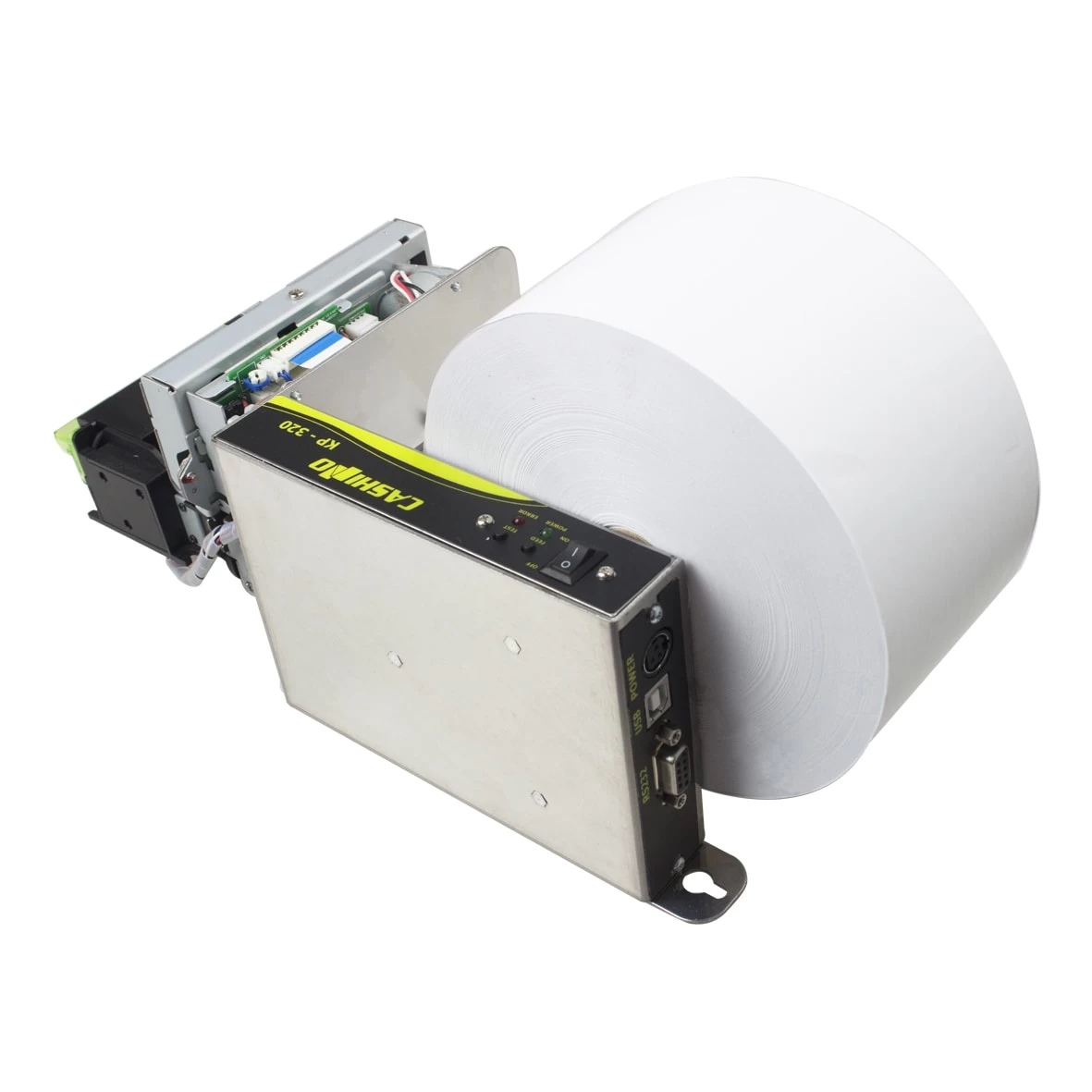

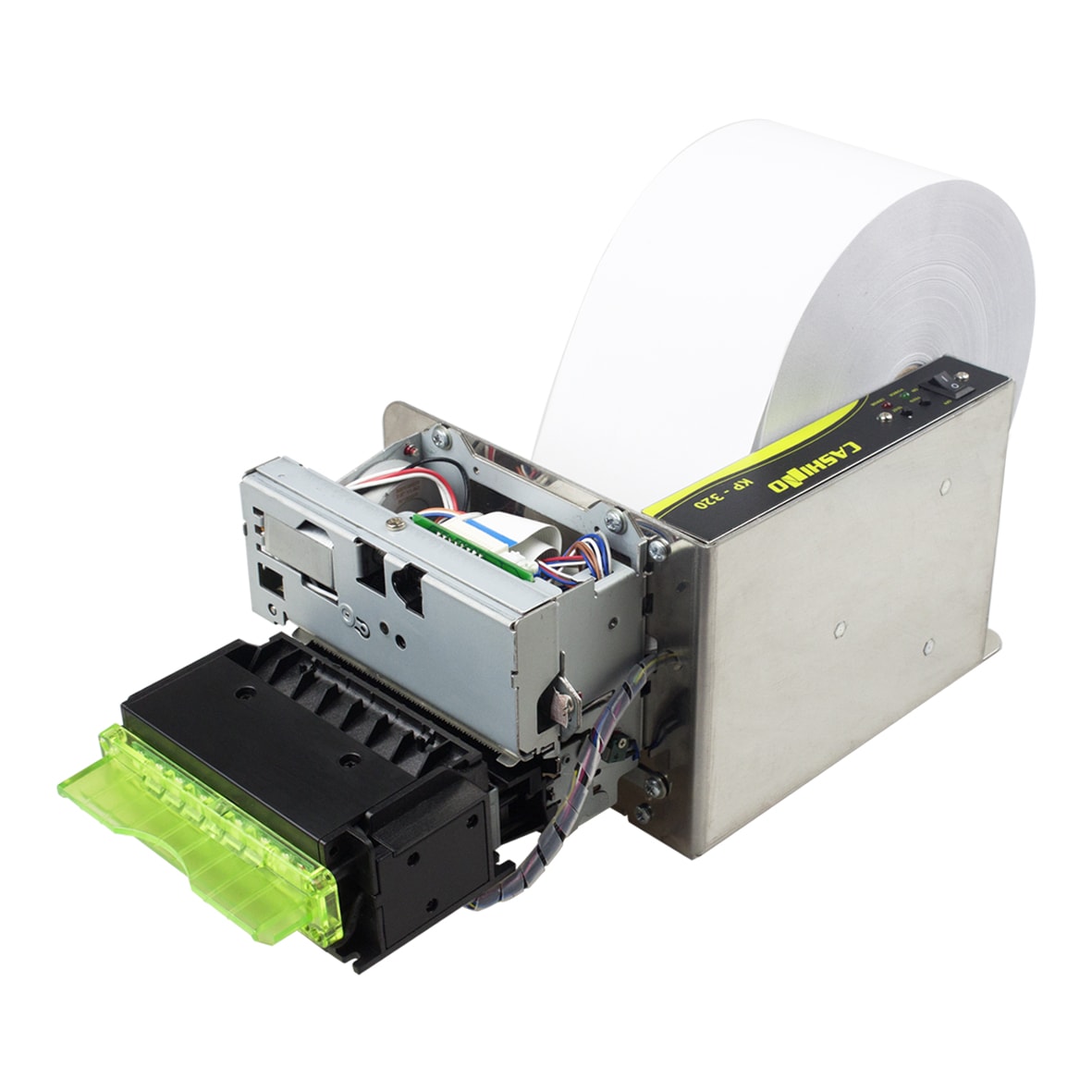

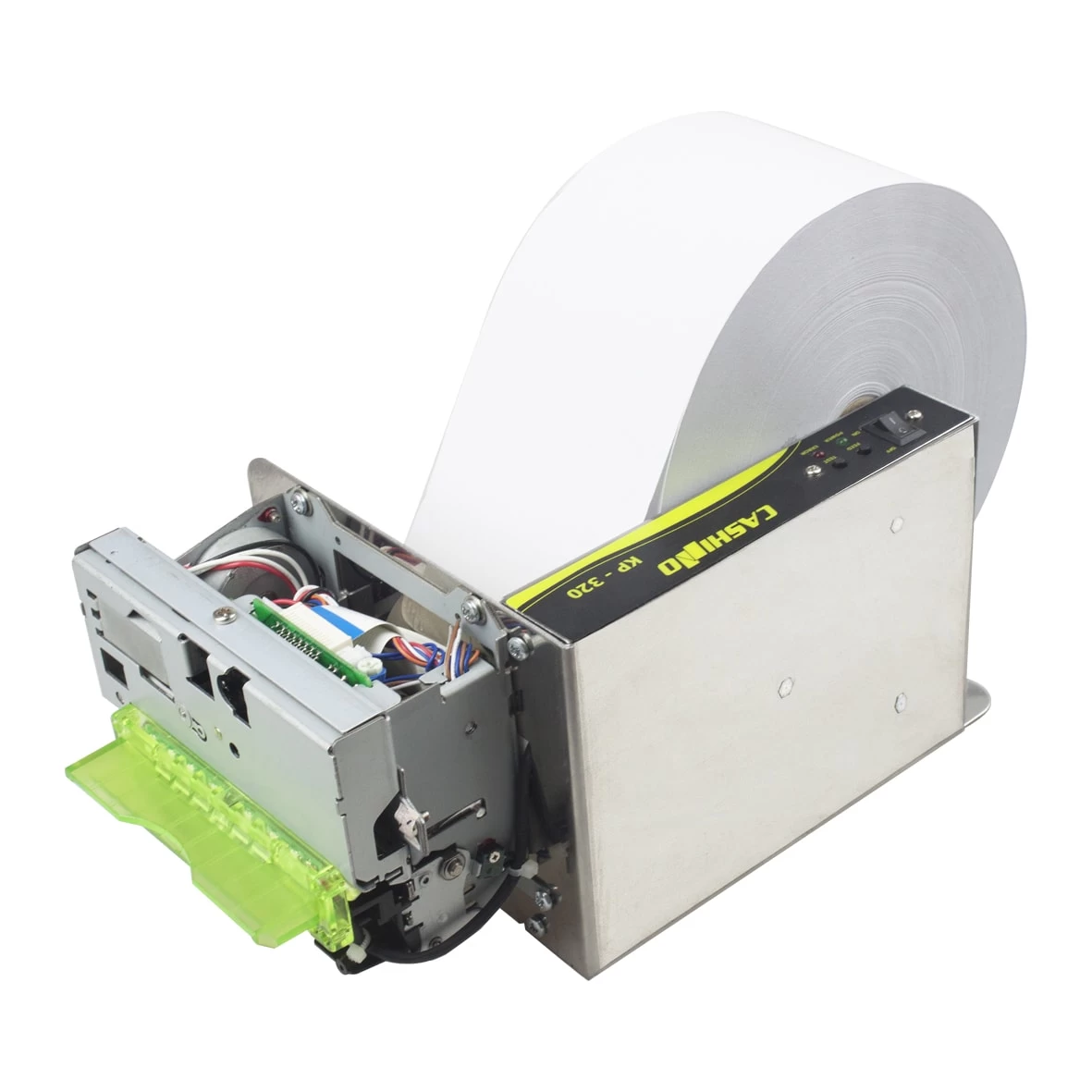

KP-320 80MM Kiosk Thermal Receipt Printer with Auto Cutter
Basis information:
80MM kiosk thermal printer KP-320 is one of our idea printing solutions for self service kiosks, Available in 2" and 3" widths. This kiosk printer offers high quality 203 dpi printing speeds up to 150 mm/s for kiosk terminals. With a large paper roll capacity, the kiosk receipt/ticket printer offers up to 180mm paper roll diameter. The thermal kiosk printer comes with dual USB and serial interface, also Ethernet for your option.
Feature:
1. High printing speed up to 150mm/s
2. High printing speed quality at 203 DPI
3. Ticket width: from 58 to 82 mm
4. Auto Feeding/easy-paper loading
5. Full or partial cutter
6. Sensors: paper near end sensor, ticket
presence sensor.
Specification:
| Model No.
|
KP-320
|
| Print
|
print mode
print width max.
print resolution
print speed max.
|
Thermal line printing
72mm/80mm
203 dpi
150mm/s(max.)
|
| Character
|
Character set
|
GBK(24x24);
ASCⅡ:9x17,9x24,16x18,12x24
|
| Font
|
Font A(12x24):32;
Font B(9x17):42; GBK:16
|
| Paper spec.
|
Paper Type
|
Thermal paper / Label paper
|
| Paper Diameter
|
180mm(Max.)
|
| Paper Thickness
|
55-200μm
|
| Paper Width
|
57.5±0.5mm/79.5±0.5mm/81.5±0.5mm
|
| Roll Core Inner Diameter
|
18mm(min)
|
| Paper supply method
|
Automatic feed (straight in & out)
|
| Reliability
|
TPH
|
100km
|
| Cutter
|
1,000,000 cuts or more
|
| Detection
|
No paper detection
Paper near end detection
Paper presence
Black mark detection
|
| Barcode
|
1D
|
EAN-13, EAN-8, CODE39, CODE93,
CODE128, CODEBAR, ITF, UPC A, UPC-E
|
| 2D
|
QR CODE
|
| Text and graphic support
|
Figure, symbol, graph, curve,
icon, multi-languages
|
| Command
|
Compatible with ESC/POS command set
|
| Driver/SDK
|
Windows Driver, Linux Driver, Android SDK, Windows SDK
|
| Interface
|
RS232+USB+Ethernet/RS232+USB
|
| Power
|
24VDC , 2A
|
| Temperature
|
Operating:-10°C~50°C
Storage:-20°C ~ 60°C
|
| Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH
|
| Profile Size
|
137.5(W)x225.9(D)x109.5(H)mm
|
Applications:
1. Bank ATMs
2. Gaming/lottery machines
3. Self service kiosks
4. Info and multimedia kiosks
5. Currency change
6. Information stands
FAQ:
Q: Can I get samples for testing?
A: Yes, samples are available.
Q: What is the delivery date?
A: The delivery date for samples is within 3 days after payment received. Approximately 2 weeks for bulk order.
Q: How can I do the payment?
A: Via T/T, Paypal and Western Union.
Q: What is the warranty on my products?
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with reasonable price to the customer.
