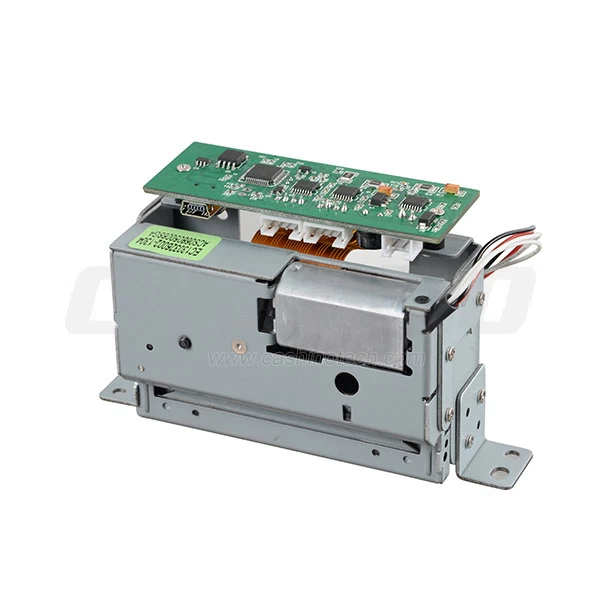

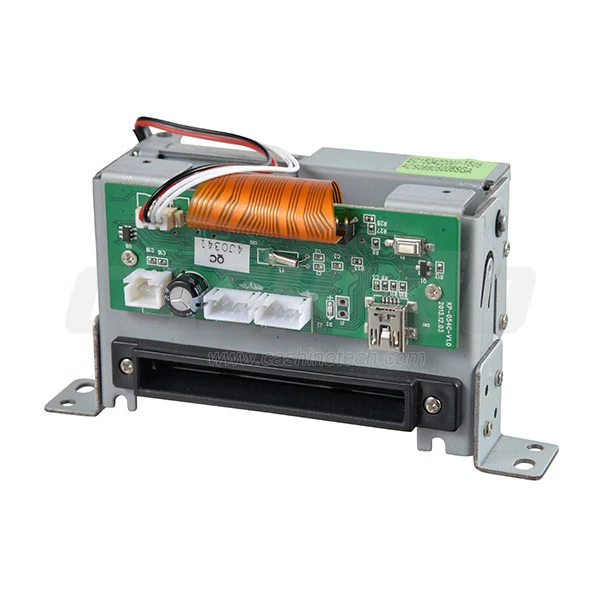

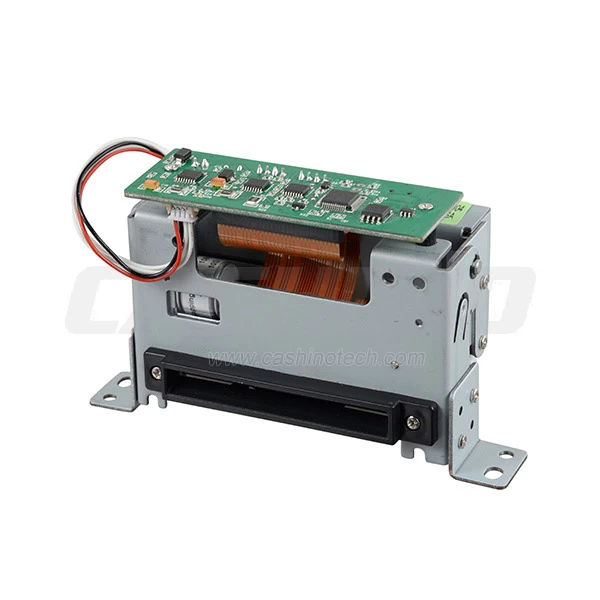

KP-628C 58mm auto cutter kiosk thermal printer
Feature:
RS232,TTL,USB interface
Full or partial cutter
DC5-9V/12V
Specification:
Item
|
KP-628C
|
|
Printing method
|
Thermal-line dot method
|
|
Dot structure
|
384 dots/line
|
|
Resolution
|
8 dots/mm
|
|
Paper feed
|
Auto pape loading
|
|
Dot pitch
|
0.125 mm (8 dots/mm)
|
|
Effective printing area
|
48 mm
|
|
Number of columns
|
ANK 32 columns/line (maximum 12 x 24 dot font)
|
|
Paper width
|
57.5±0.5mm
|
|
Dimensions
|
82.5×52×36mm (W×D×H)
|
|
Paper thickness
|
60 to 100μ m (some paper in this range may not be used because of paper characteristics)
|
|
Power supply
|
For print head
|
4.2 - 8.5 VDC ,0.87A(average)
|
|
For motor
|
4.2 - 8.5 VDC
|
|
For cutter motor
|
5-9 VDC,Max. 1A
|
|
For logic
|
2.7 - 5.25 VDC,Max 0.1A
|
|
For Module
|
5V-8VDC,Max. 5A, Rated Voltage:7.4V.
|
|
Weight
|
Module
|
0.22KG
|
|
Life
|
Head
|
100million pulses or more(print ratio=12.5%)
|
|
50km or more
|
|
Cutter
|
1,000,000 cuts
|
|
Operating environment
|
Operating temperature
|
0° C to 50° C
|
|
Operating humidity
|
20 to 85% RH (no condensation)
|
|
Storage temperature
|
-25° C to 70° C
|
|
Storage humidity
|
5 to 95% RH (no condensation)
|
|
Detection function
|
Head temperature detection
|
Via thermistor
|
|
| |
Head-up detection
|
Via photo interrupter
|
|
Out-off-paper detection
|
Via photo interrupter
|
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
