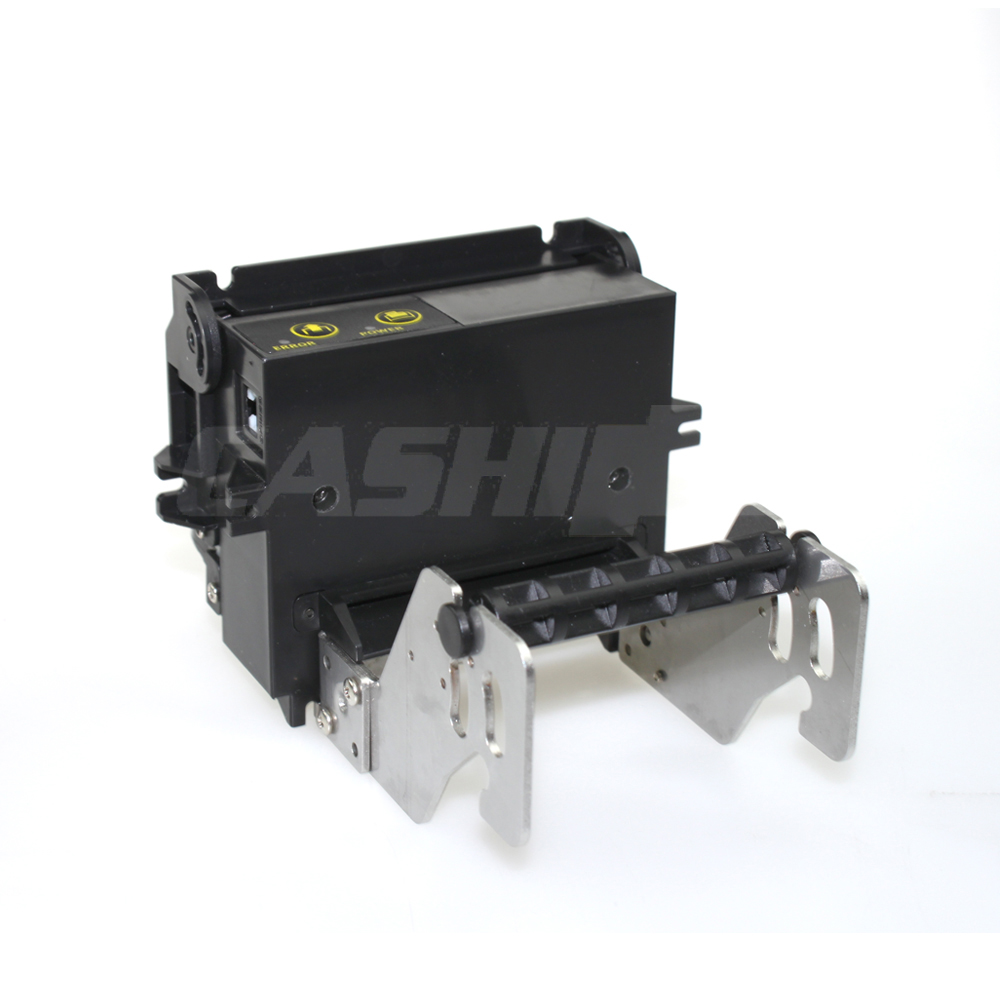

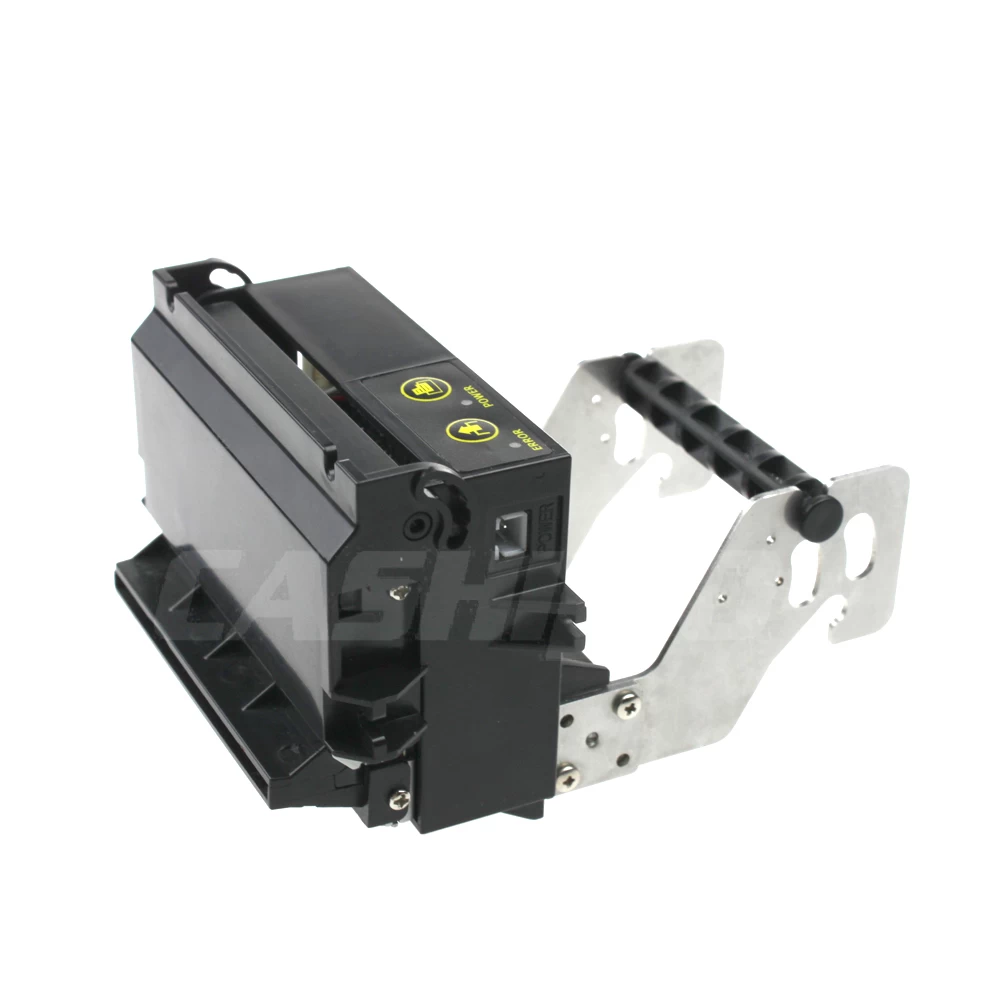

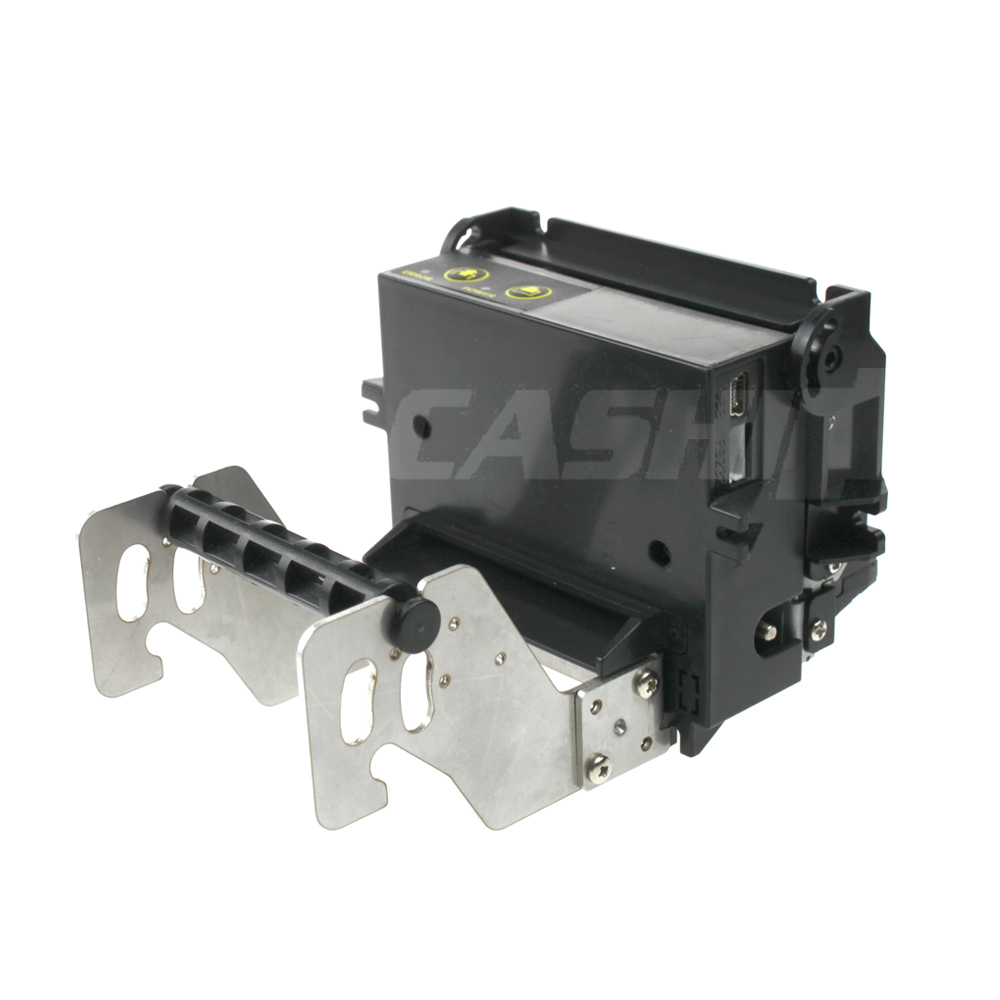

58MM Kiosk Thermal Ticket Printers With Auto-cutter KP-628E
KP-628E is a 58mm kiosk ticket printer. It is used in KIOSK machine, such as ATM, vending machine, Queuing machine, GAS etc.
Highlights:
1. 90 degree and 180 degree paper feed
2. Auto feeding/easy-paper loading
3. With auto-cutter, partial/full cut optional
4. Paper holder: horizontal/vertical position optional
5. Support lack of paper detection
6. Support paper near end detection (as optional)
Specification:
| Model No.
|
KP628E-H80/V80
|
| Print Method
|
Line thermal dot
|
| Print Speed
|
max.90 mm/sec
|
| Resolution
|
8 dots/mm (203dpi)
|
| Number of dots/line
|
384 dots
|
| Paper Width
|
58 mm
|
| Print Width
|
48 mm
|
| Paper Diameter
|
Max. 80mm
|
| Paper Thickness
|
0.055~0.09mm
|
| Character
|
International, English, Chinese, Korean and Japanese etc.
|
| Barcode
|
UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE128 / QR code (model2)
|
| Interface
|
USB (V2.0 FULL SPEED) and Serial (RS232C/TTL)
|
| Sensor
|
Paper near ending ,paper end detection
|
| Auto-Cutter
|
Full cut or Partial cut
|
| Operating voltage
|
DC9V/DC12V-24V
|
| Temperature
|
Operating:0°C~50°C
Storage:-20°C ~ 60°C
|
| Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH
|
| Printer Driver
|
Windows XP / Vista / 7 /8 /10, Linux (CUPS),Android SDK, Windows SDK
|
| External Dimensions
|
KP628E-H80: 100.5W x 131.08D x 80H mm
KP628E-V80: 100.5W x 67.95D x 134H mm
|
| Usage
|
Kiosk terminal, self-service machine etc.
|
Application:
1. ATM
2. Queuing machine
3. Vending machine
4. GAS (Gas station)
5. Power charging pile
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, pos bill printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
