| Item | KP307 |
| Printing method | Thermal line printing |
Resolution | 203dpi,8dots/mm |
Character Set | Support User-defined characters GB18030 24X24 ASCII 9X17,12X24 |
Colour | Black/white |
Graphics printing | Support dots printing with different densities,support raster bitmap print,support downloaded bit image print |
Code pages | Support simplified&traditional Chinese ,English,Japanese and other 45 kinds of international character sets. |

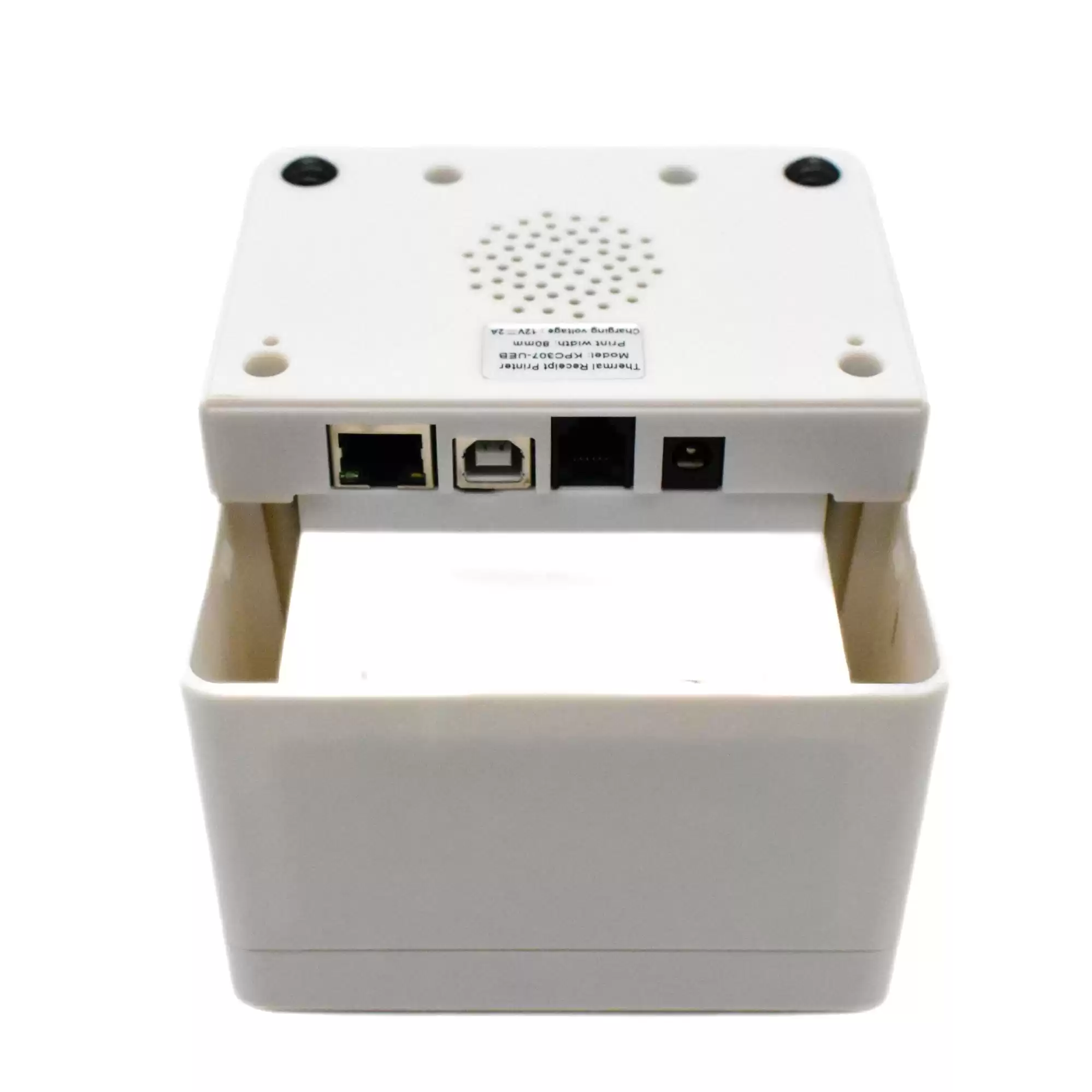

Interface
| USB/USB+Ethernet/USB+Ethernet+Bluetooth |
Cashbox control | RJ11-6P6C Socket,12V |
Work environment | Temperature: 0~45ºC; Dampness:10~80% |
Storage environment | Temperature: -10~60ºC; Dampness:10~90% |
| Print Speed | 100 mm/s |
printing width | 72mm |
Paper Width | 79.5± 0.5mm |
| Effective Printing Width | 108mm |
| Paper roll diameter | 60mm |
Paper cutting | Manual or automatic cutting |
TPH life | 100km |
cutter life | 1,000,000 times |
| Driver | Windows(WIN7/WIN8/WIN10/Vista/XP/2000) Ubuntu 12.04 32/64 Ubuntu 14.04 32/64 MAC OS |
| Dimension | 125x110x95mm |
Power Supply
| DC 12V/2A
|
Printing command | Compatible with POS/ESC command set |
