KSM-SA Fixed Adjustable Solar Mounting System

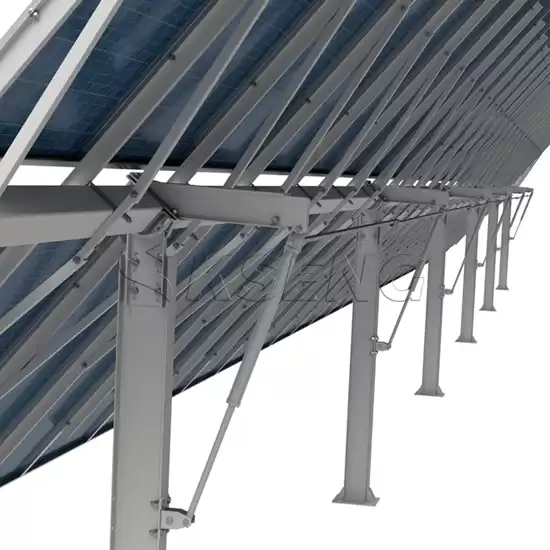

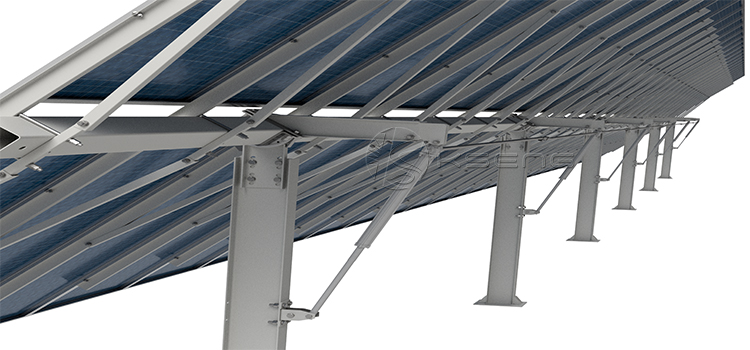

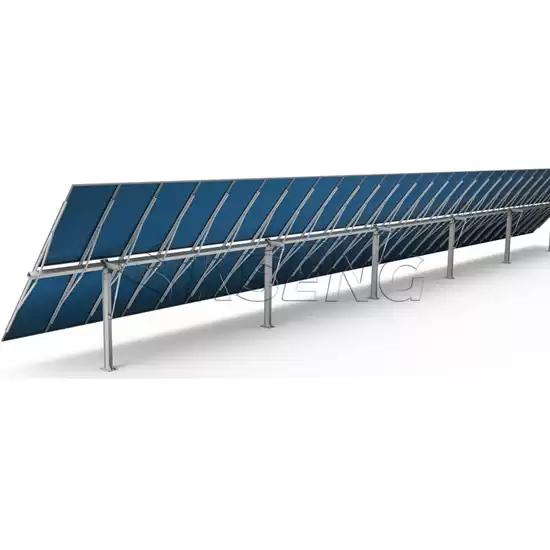

The solar fixed adjustable mounting system is used to fix the solar pv panels and gives a support and inclination to the system. They are made by HDG steel and Al-Mg-Zn coating steel which featured with high strength. They can be mounted on a concrete foundation, PHC pile and ground screw pile. Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.
|
Fixed Adjustable System Structure Parameters
|
Product Name
|
Fixed Adjutable Mounting System
|
Maximum capacity per row
|
36kWp (Estimated with 600W PV -Modules)
|
|
PV-Modules quantity per row
|
2Px30、2Px15
|
Adjustment range
|
5°to 60°
|
|
Adjustment accuracy
|
±1°
|
Structural Materials
|
HDG steel, Al-Mg-Zn, Coating steel
|
|
Quantity of Foundation/MW
|
170 PCS/MW (Estimated with 600W PV-Modules)
|
Foundation
|
Concrete Foundation, Steel Pile,PHC Pile
|
|
Adjustment Parameters
|
|
Adjustment Method
|
Stepless or Step
|
Adjustment Mechanism
|
Linear Drive
|
|
Mechanism Quantity
|
1 pcs/post or 1 pcs/row
|
Adjustment tool
|
Electric tool or manual tool
|
Efficiency
|
|
Stepless adjustment
|
One Person
|
Efficiency
|
7MW/Day
|
|
Step Adjustment
|
One Person
|
Efficiency
|
2MW/Day
|
Environment
|
|
Wind Load
|
Customized According to Local Condition
|
Operating Temperature
|
-40℃ to +60℃
|
|
Enviromental Pollution Level
|
C5
|
Slope Tolerance
|
East-west 10%~20%, North-southno Limits
|
Other
|
|
Special Tools
|
Not Required
|
Load Design Standard
|
GB, ASCE, BS EN,AS(According to Project)
|
Fixed Adjustable Mounting System Characteristic：
-
Stepless adjusting
-
One-person adjusting
-
Electric tool adjusting
-
Adaption to various terrains allowing a slope up to 10%-20%
-
Eay installation and easy maintenance
Terrain adaptability：
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
