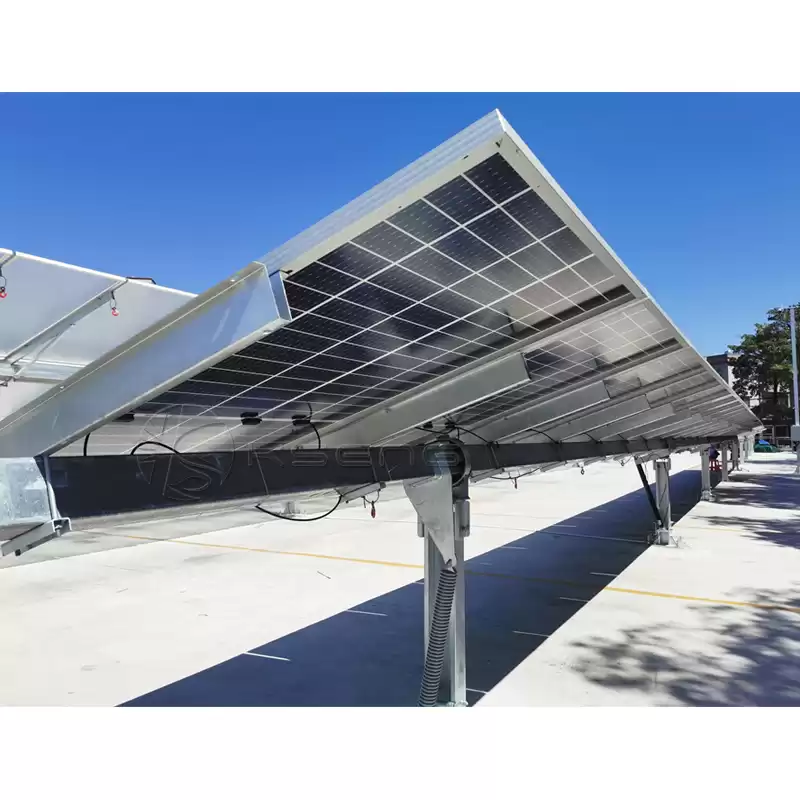

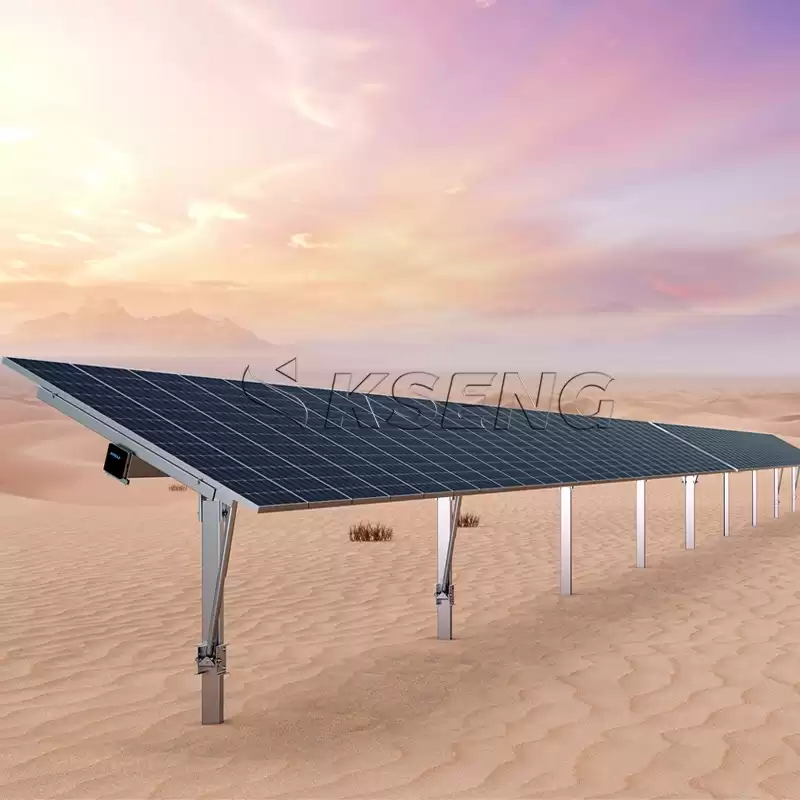

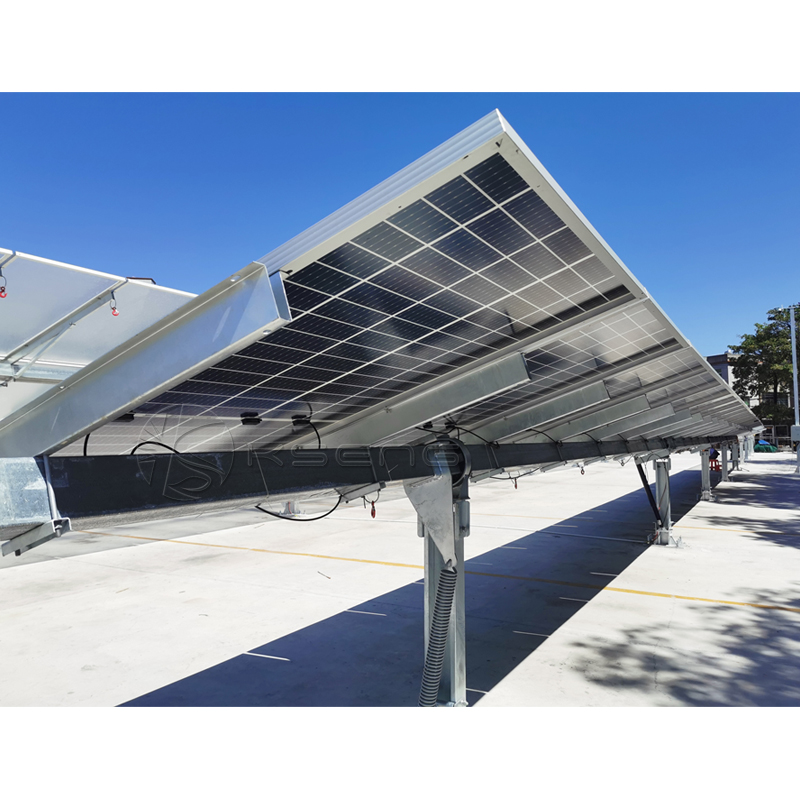

KSENG · KST-1P Solar Tracker
Kseng KST-1P solar bracket is designed with a tracking mechanism that follow the position of the sun as it moves from east to west. Single axis tracker can increase production between 25% to 35%.

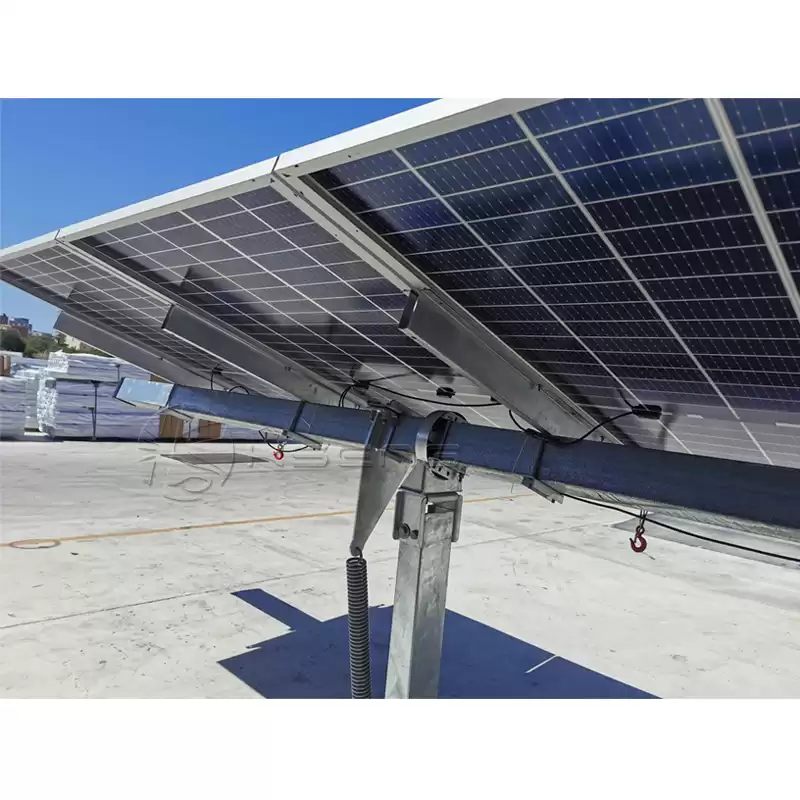

Adopt single-slew-drive, KST-1P allows for large tracking range between ±60°, it's a relatively cost-effective solution with high stability.
Structure Parameters
|
System type
|

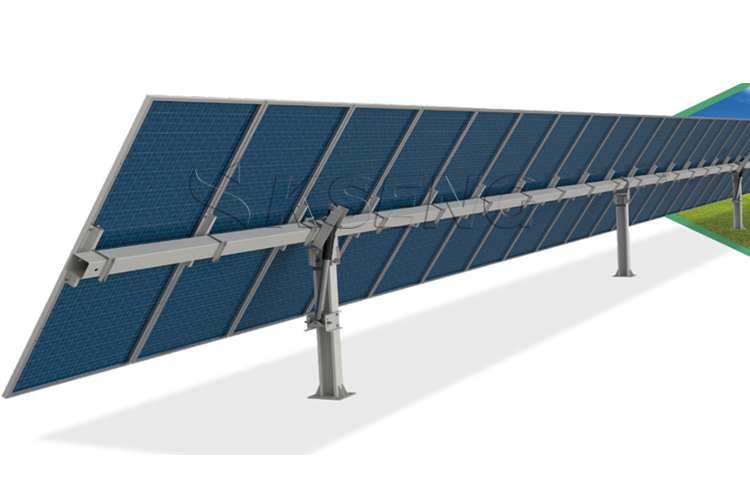

One Portrait Horizontal single-axis tracking system
|
Maximum capacity per row
|
54KWp (Estimated with 600W PV -Modules)
|
PV-Modules quantity per row
|
90 PCS (1Px90)
|
Tracking range
|
±60°
|
Tracking accuracy
|
±1°
|
|
Materials
|
HDG Steel, Al-Mg-Zn Coating
Steel
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|
Quantity of foundation/MW
|
205PCS/MW (Estimated with 600W PV-Modules)
|
Controller Parameters
|
Controller system
|
MCU
|
Tracking method
|
Astronomical
algorithm+closed-loop control (AI)
|
Signal transmission
|
Wire (RS485) or wireless (Zig bee)
|

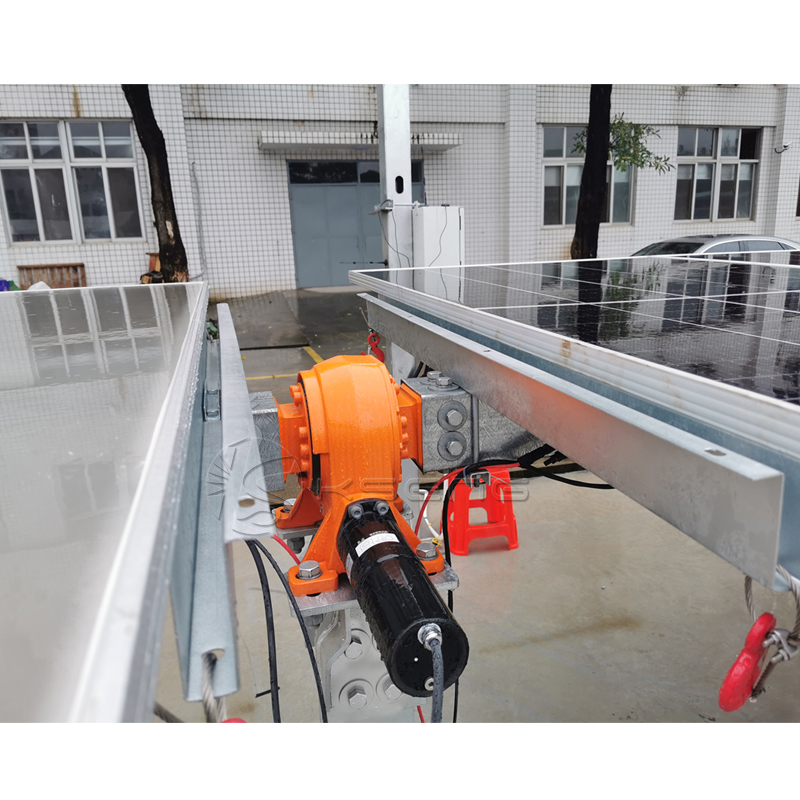

Drive method
|
Slew drive
|
Motor type
|
DC 24V
|
Power supply
|
AC-powered or self-powered
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|

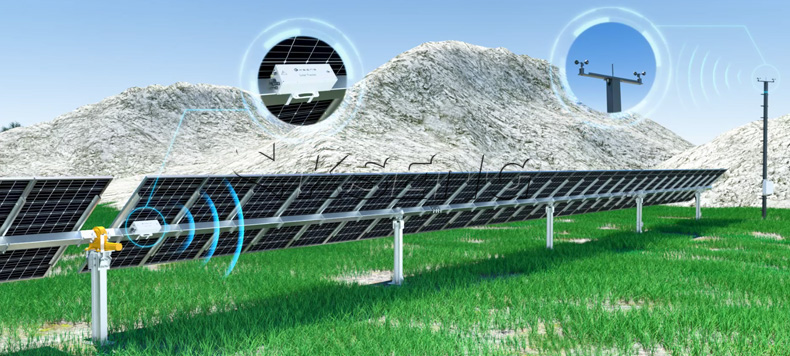

Advanced AI tracking algorithm
AI
self-learning algorithm to optimize the angular deviation caused by
terrain and bracket installation errors. Compared with the traditional
tracking algorithm, the power generation of the power station can be
increased by 2%-3%.
KST-1P features
1：Cost-effective, stable & efficient system
2：Fully fit for 210 module
3：Al algorithm to maximize power generation
4：Adapt to various terrains allowing a north-south slope up to 20%
5：Easy installation & maintenance
Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
