KSENG · KST-2P Solar Tracker

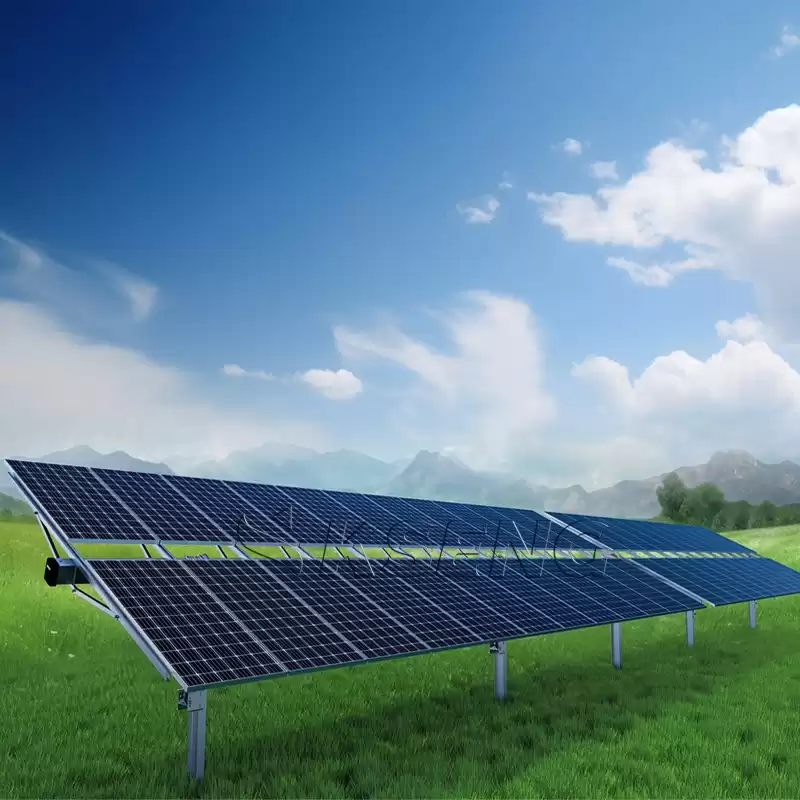

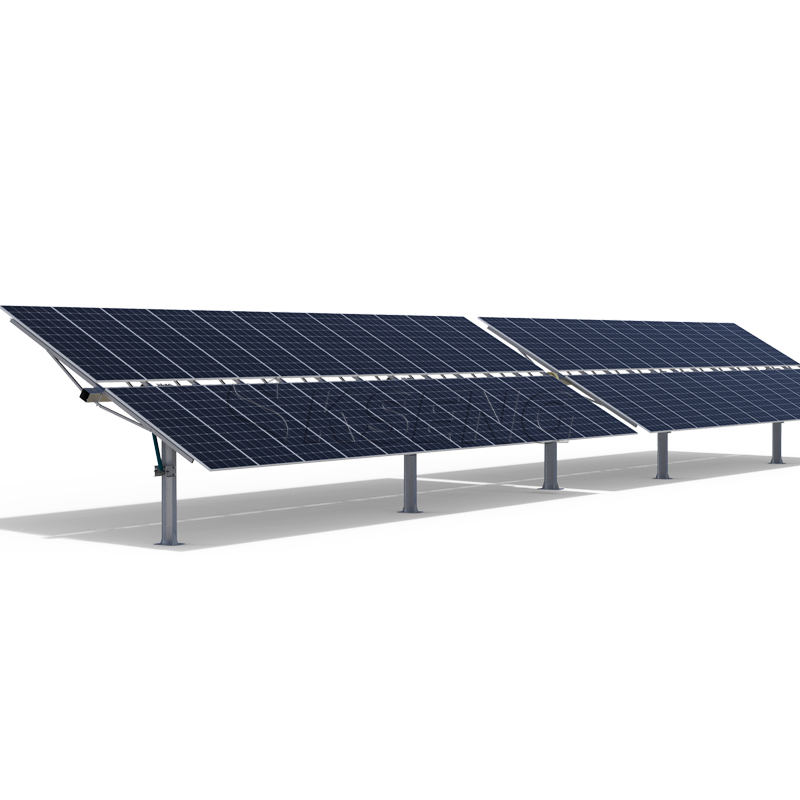

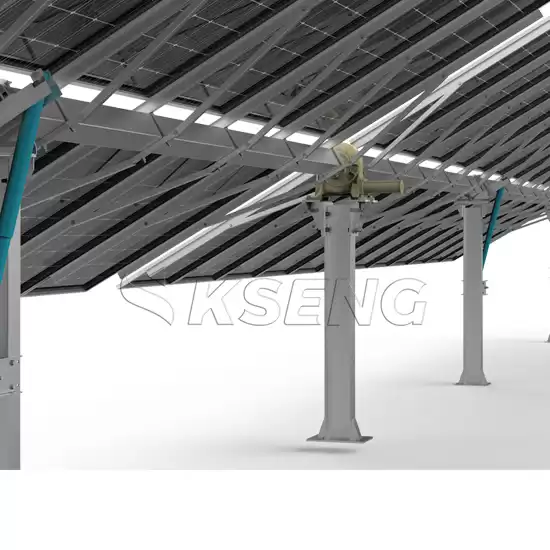

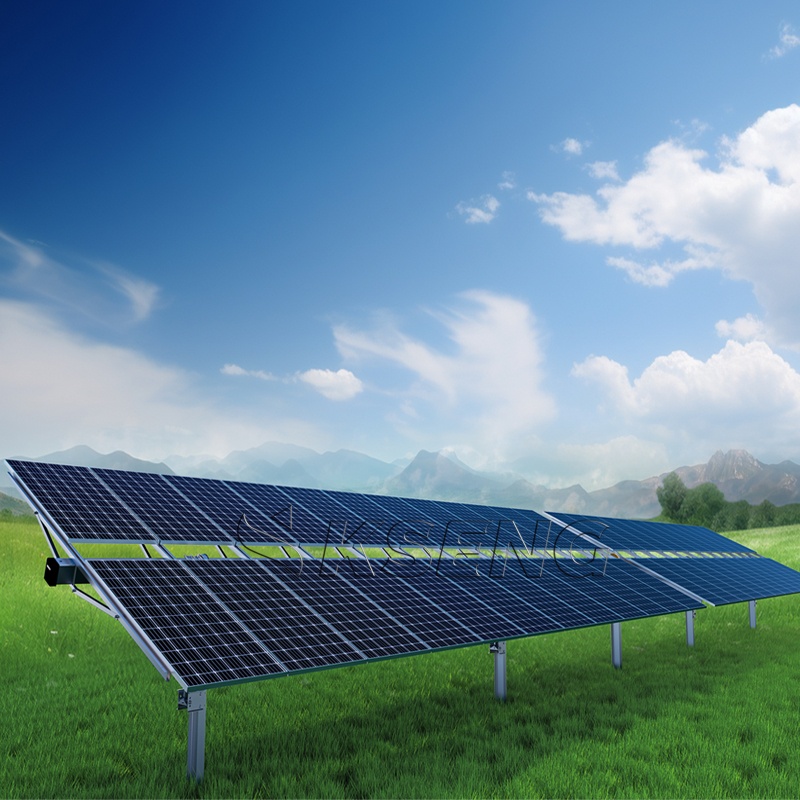

Kseng KST-2P solar tracker adopt single slew drive with dampers on both sides to increase overall stability.
It's a good match with bifacial solar modules for maximum power generation. Featured with fewer column,
it's quiet flexible for uneven terrains.
Structure Parameters
|
System type
|
Double Portrait Horizontal single-axis tracking system
|
Maximum capacity per row
|
54KWp (Estimated with 600W PV -Modules)
|
PV-Modules quantity per row
|
2Px45, 2Px30
|
Tracking range
|
±60°
|
Tracking accuracy
|
±1°
|
|
Materials
|
HDG Steel, Al-Mg-Zn Coating
Steel
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|
Quantity of foundation/MW
|
130PCS/MW (Estimated with 600W PV-Modules)
|
Controller Parameters
|
Controller system
|
MCU
|
Tracking method
|
Astronomical
algorithm+closed-loop control (AI)
|

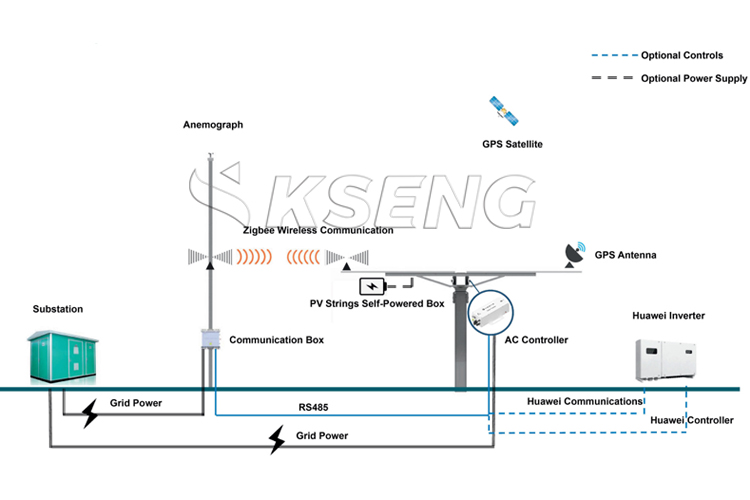

Signal transmission
|
Wire (RS485) or wireless (Zig bee)
|
Drive method
|
Slew drive
|
Motor type
|
DC 24V
|
Power supply
|
AC-powered or self-powered
|
Foundation
|
Concrete foundation, Steel
pile, PHC pile
|
Advanced AI tracking algorithm
AI
self-learning algorithm to optimize the angular deviation caused by
terrain and bracket installation errors.
Compared with the traditional
tracking algorithm, the power generation of the power station can be
increased by 2%-3%.
KST-2P features
1：Suitable for the mid-low wind load areas
2：Fully fit for 210 module
3：Al algorithm to maximize power generation
4：Adapt to various terrains allowing a north-south slope up to 20%
5：Easy installation & maintenance

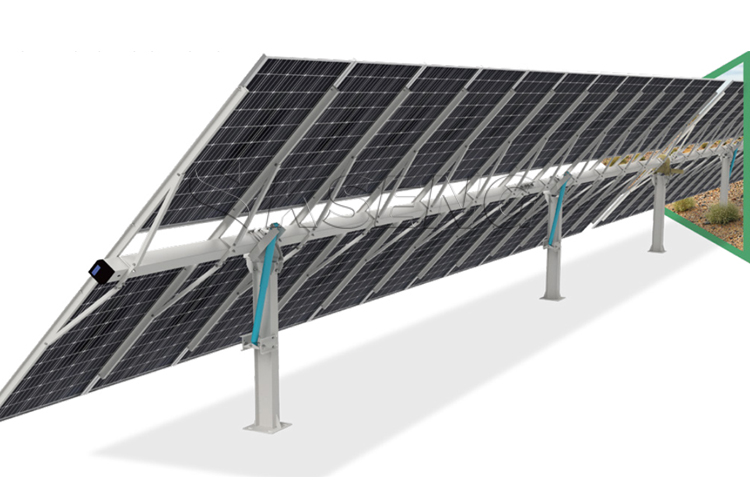

Terrain adaptability：
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
