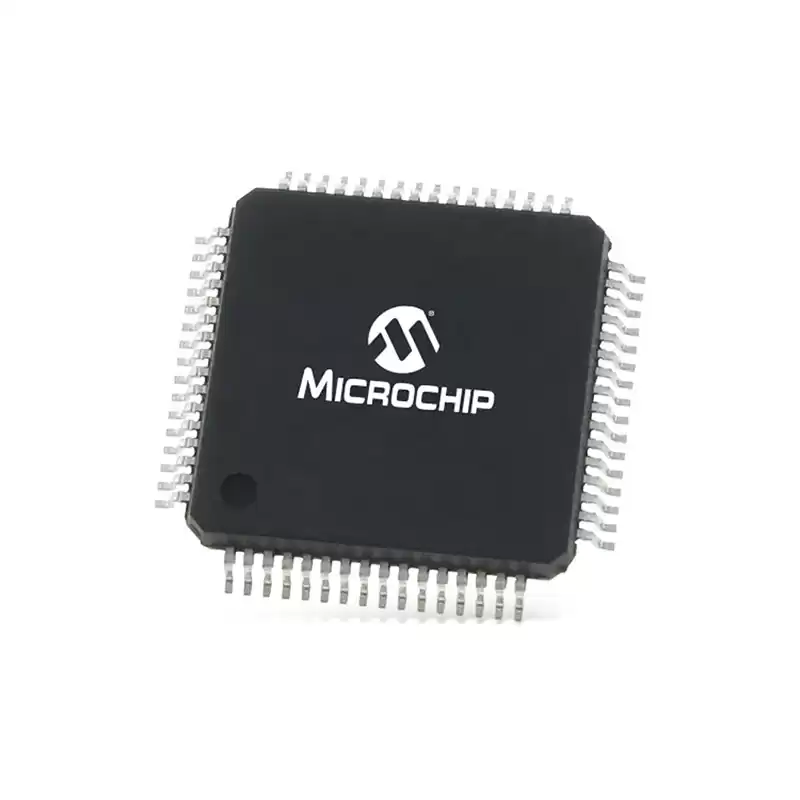

KSZ9021RL Microchip Ethernet ICs
Parameter
|
Manufacturer
|
Microchip |
| Product Category |
Ethernet ICs |
| Mounting Style |
SMD/SMT |
| Package / Case |
LQFP-64 |
Series
|
KSZ9021
|
Supply Voltage - Min
|
1.14 V
|
Supply Voltage - Max
|
3.465 V
|
Minimum Operating Temperature
|
0 C
|
Maximum Operating Temperature
|
+ 70 C
|
| Operating Supply Voltage |
1.2 V |
| Packaging |
Tray |
Factory Pack Quantity
|
160 |
Introduction
The KSZ9021RL is a chip manufactured by Microchip Technology, specifically designed as a single-port Gigabit Ethernet transceiver. It is commonly used in various networking applications, including industrial automation, embedded systems, and communication equipment.
The KSZ9021RL chip provides high-performance Gigabit Ethernet connectivity, offering data rates of up to 1000 Mbps. It supports full-duplex and half-duplex operation modes, allowing for flexible network configurations.
This chip incorporates advanced features such as Auto-Negotiation and Auto-MDI/MDIX, which enable automatic detection and configuration of link speed, as well as automatic crossover for Ethernet cables. It also supports various diagnostic capabilities, including cable diagnostics and loopback modes, to assist in network troubleshooting and maintenance.
The KSZ9021RL chip operates with low power consumption, making it suitable for energy-efficient designs and battery-powered applications. It incorporates power-saving features such as Energy-Efficient Ethernet (EEE) and Wake-on-LAN (WoL) support.
Application
The KSZ9021RL chip is widely used in various industries for high-speed Gigabit Ethernet connectivity in networking applications. It finds applications in industrial automation, embedded systems, and communication equipment. With its high-performance features, it enables seamless and efficient data transmission at data rates of up to 1000 Mbps. The chip's advanced capabilities, such as Auto-Negotiation, Auto-MDI/MDIX, and diagnostic functions, facilitate easy network configuration and troubleshooting. The KSZ9021RL chip operates with low power consumption, making it suitable for energy-efficient designs. Its built-in protection mechanisms ensure system reliability and robustness. With its compact size and easy integration, the KSZ9021RL chip simplifies the implementation of high-speed Gigabit Ethernet connectivity in diverse networking devices. It is a trusted solution for industries seeking reliable and high-performance Ethernet connectivity with exceptional speed and flexibility.
