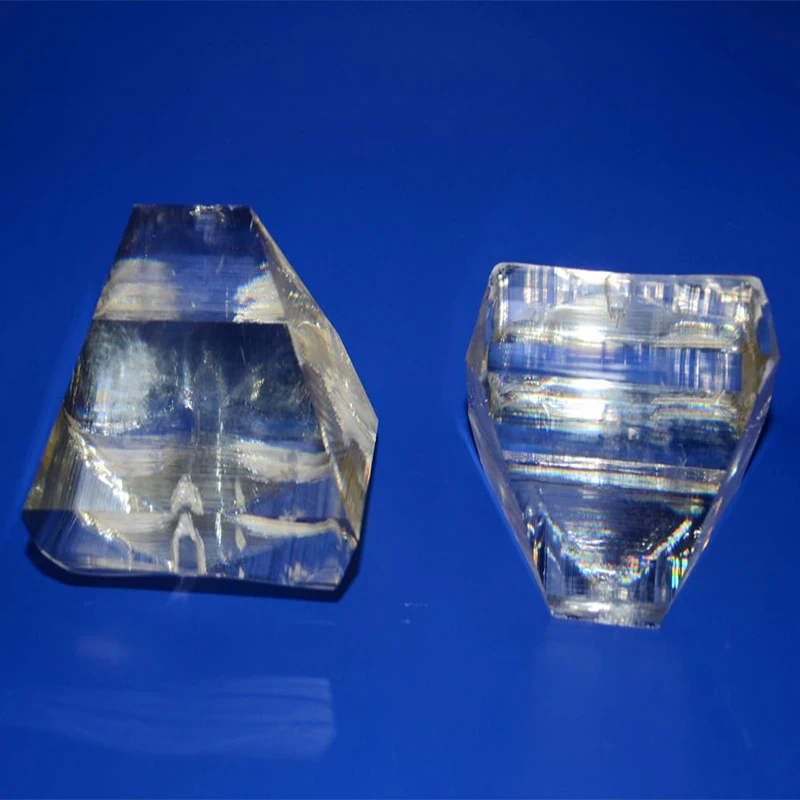

KTP Nonlinear Crystals
KTP crystal (KTiOPO4) is mostly used as nonlinear crystals for frequency doubling of solid-state Nd:YAG crystal or Nd:YVO4 crystal laser, as it has large nonlinear optical coefficients, wide angular bandwidth and small walk-off angle, broad temperature and spectral bandwidth
KTP Crystal Advantages:
1. Large Nonlinear Optical (NLO) Coefficients
2. Wide Angular Bandwidth and Small Walk-off Angle
3. Broad Temperature and Spectral Bandwidth
4. High Electro-Optic (E-O) Coefficient and Low Dielectric Constant
5. Large Figure of Merit for an Optical Waveguide Modulator
6. Nonhygroscopic, Good Chemical and Mechanical Properties
KTP Crystal Applications:
1. Frequency Doubling (SHG) of Nd-doped Lasers for Green/Red Output.
2. Frequency Mixing (SFM) of Nd Laser and Diode Laser for Blue Output.
3. Parametric Sources (OPG, OPA and OPO) for 0.6mm-4.5mm Tunable Output.
4. E-O Modulators, Optical Switches, Directional Couplers.
5. Optical Waveguides for Integrated NLO and E-O Devices.
SPECIFICATION:
Aperture: 2x2 ~ 15x15mm
Lenght: 0.1 - 20mm
Cutting Angle: Determined by different kinds of homonic generartion
Phase matching type: Type I or Type II
End Configuration: Flat or Brewst or Specified
Angle tolerance: Δθ< ± 0.5°; Δφ< ±0.5°
Dimensional Tolerance: (W ± 0.1mm) x (H ± 0.1mm) x (L + 0.2mm/-0.1mm)
Flatness: <λ/8 at 633nm
Surface Quality: 10/5 Scracth/Dig
Parallelism: < 30 arc seconds
Perpendicularity: < 10 arc minutes
Wavefront Distortion: <λ/8 at 632.8nm
Clear Aperture: >90%
Chamfer: 0.15x45°
Coating:
a) S1,S2: AR @ 1064 nm R<0.1% & 532nm R<0.25%
b) S1:HR @ 1064nm R>99.8% & HT@ 808nm T>95%
S2:AR @ 1064 nm R<0.1% & 532nm R<0.25%
WTS Photonics owns strong production capability in our modern workshops, At present, we employ 150 staff, among whom one third are professionals taking the responsibility of R&D and directing the production practice.
If you want to custom KTP crystal,Coated KTP Windows,KTP Crystal Optics Products,etc. Welcome to contact our sales!
