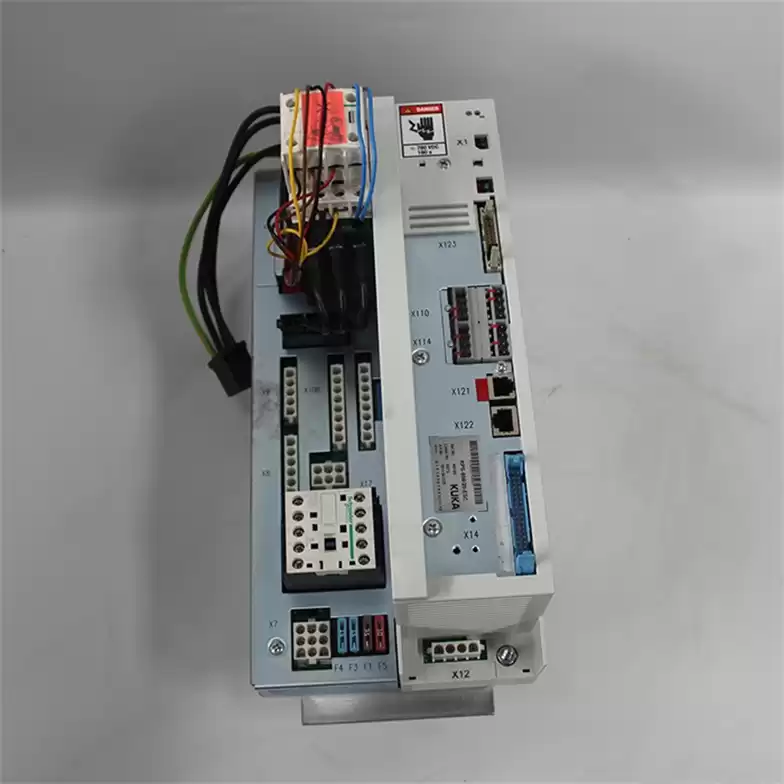

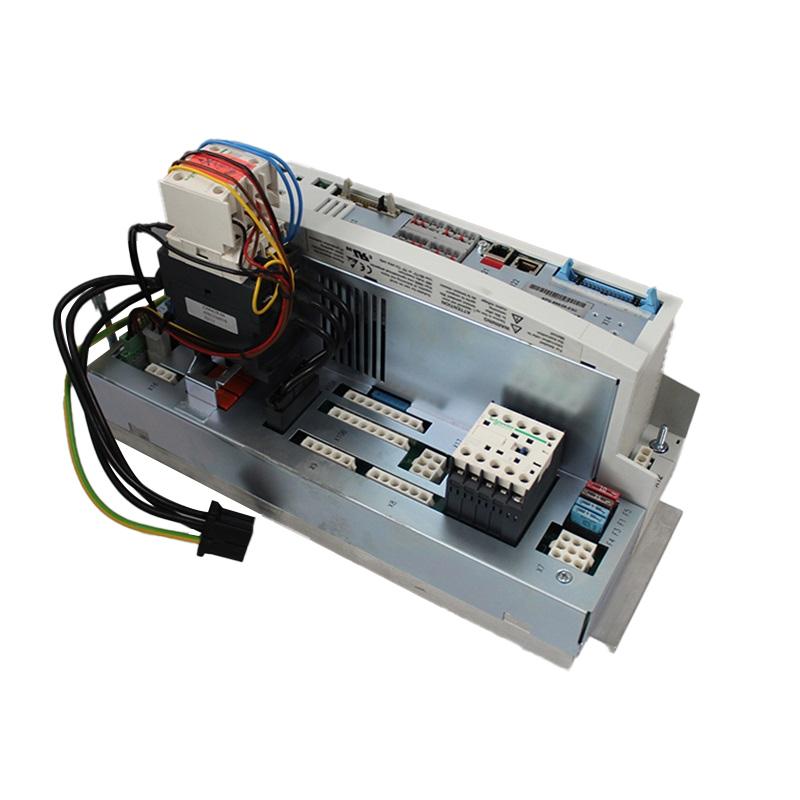

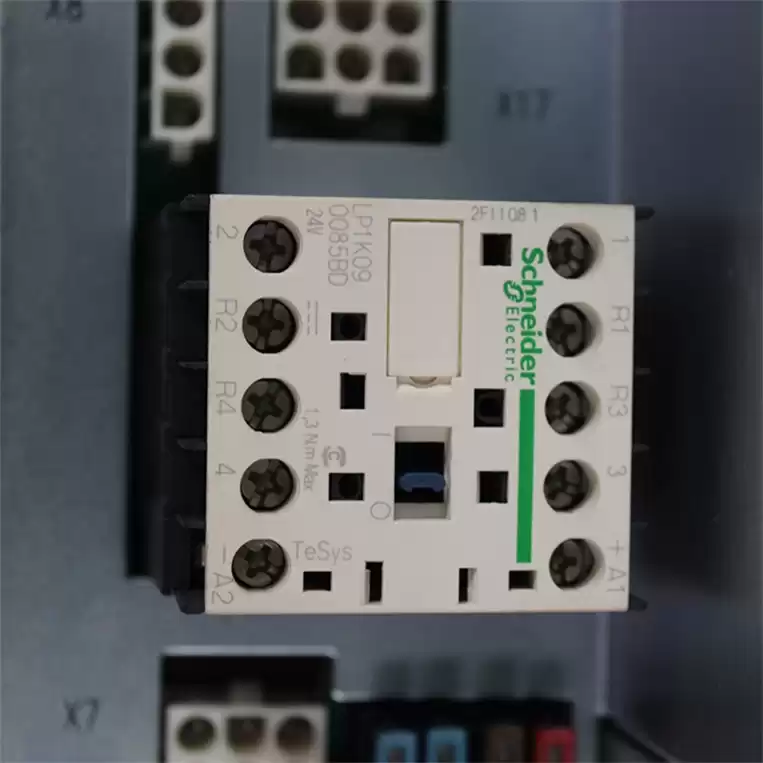

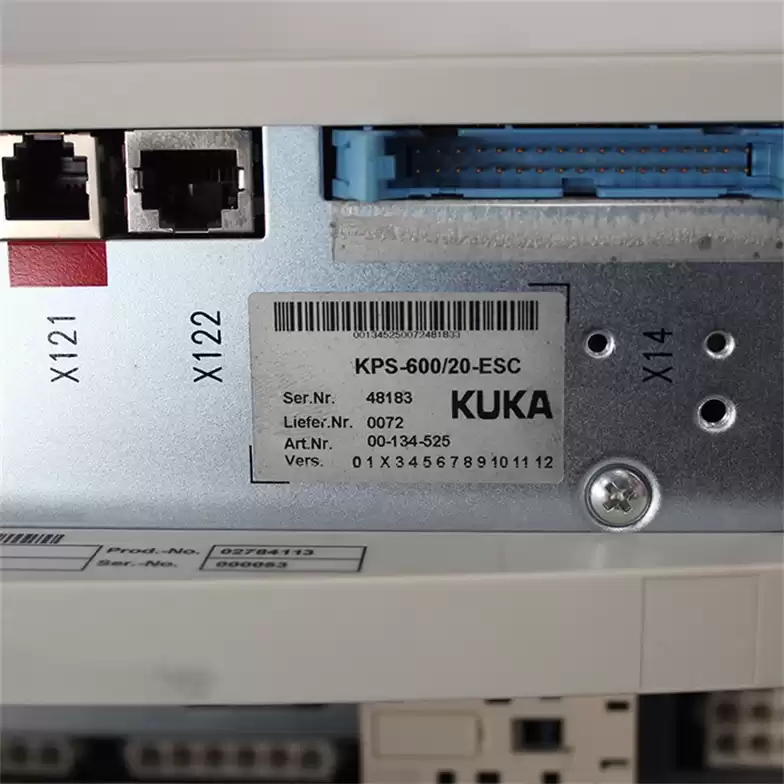

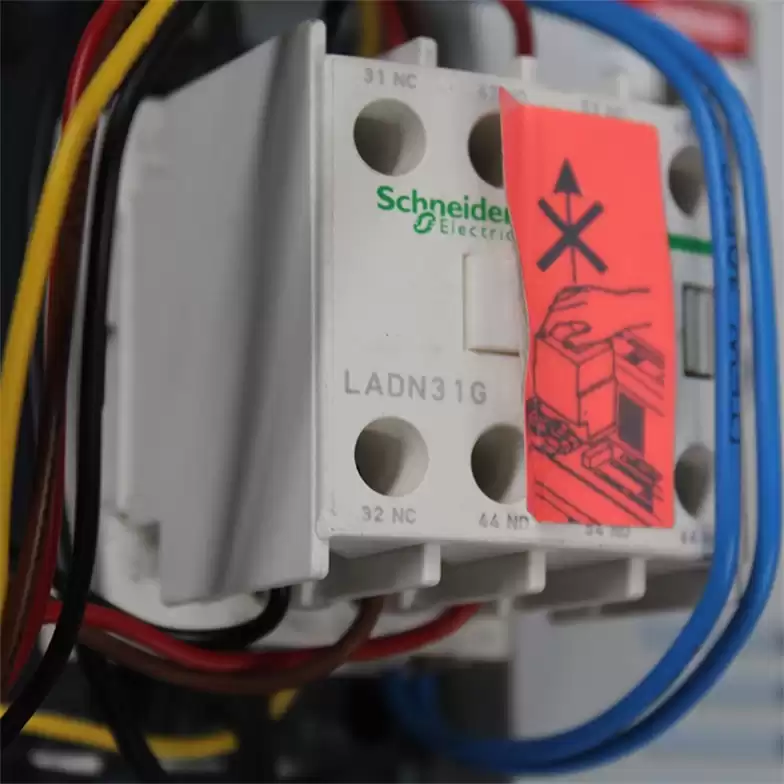

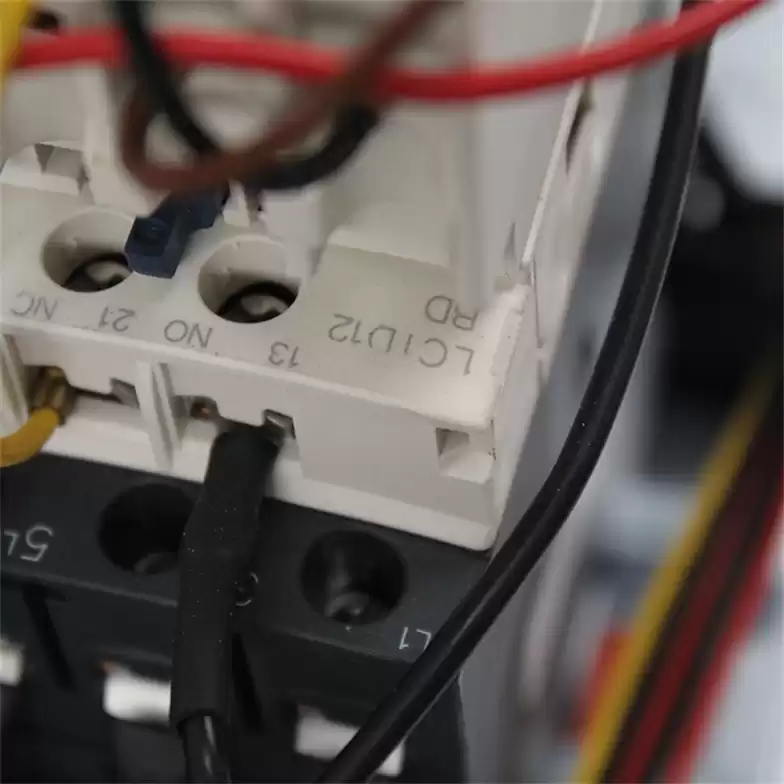

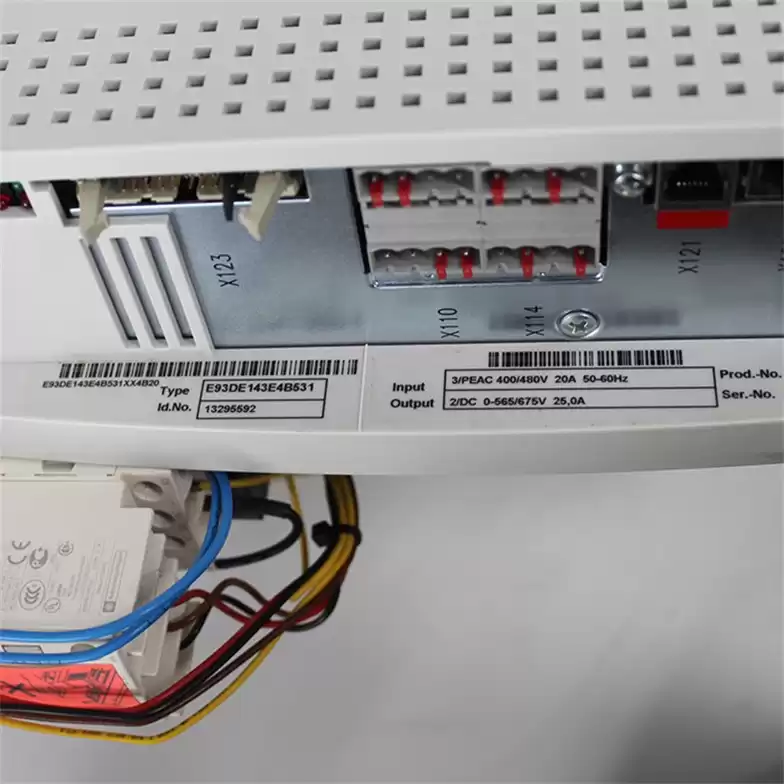

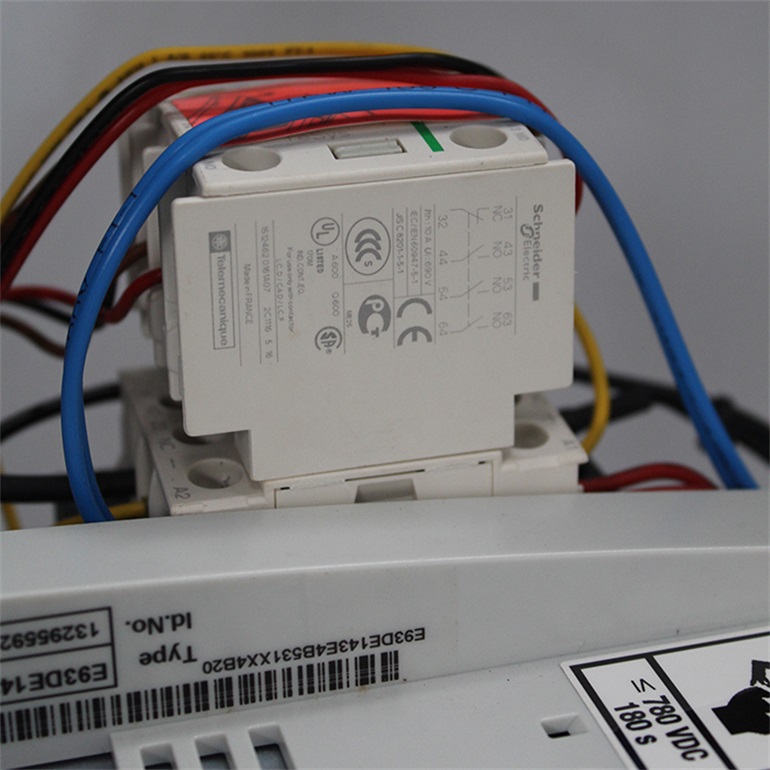

KPS 600 LED display and fuses:
1. LED 1 (red) 7 Fuse F5
2. LED 2 (green) 8 Fuse F1
3. LED 3 (red) 9 Fuse F3
4. LED 4 (red) 10 Fuse F4
5. LED 5 (green) 11 Fuse F2
6. LED 6 (green)
Exchanging the KPS600
Preconditions :
*The robot controller must be switched off and secured to prevent unauthorized persons from switching it on again.
* The power cable must be de-energized.
* Observe the ESD guidelines.
* Wait 5 minutes until the intermediate circuit has discharged.
Procedure :
1. Open the control cabinet door.
2. Unplug all connections to the KPS600.
3. Slacken the Allen screws.
4. Lift the KPS600 slightly, tip the top forwards and lift the KPS600 out of the holder.
5. Insert the new KPS600 into the lower holder, hook it on at the top and tighten the fastening screws.
6. Plug in all the connections.
