KVV Plastic Insulated Control Cables
MAIN KEYWORDS
KVV,
KVVR, KVV22, KVVP, KVVP2, KVVP2-22, KYJV,
KYJY, CY control cable, YY control cable,
SY
control cable, LiYY control cable, LiYCY control cable, PVC insulated control
cable.
APPLICATION CHARACTERISTICS
KVV
control cables encompass a large family of cables manufactured to various
British, European and international Standards. According to the Chinese
Standard of GB/T 9330-2008, control cable main includes KVV, KVVR, KVV22,
KVVP, KVVP2, KVVP2-22, KYJV, KYJV22, KYJVP2-22 and other type. According to the international standard of IEC 60227, BS EN
50525, VDE 0250 and others, it includes CY, YY, SY, LiYY, LiYCY, LiHH, LiHCH
and other types. For their means and different, please refer the follow
information:
PRODUCTS TYPE
|
Main Type of
Control Cable
|
Description of Control Cable's Type
|
|

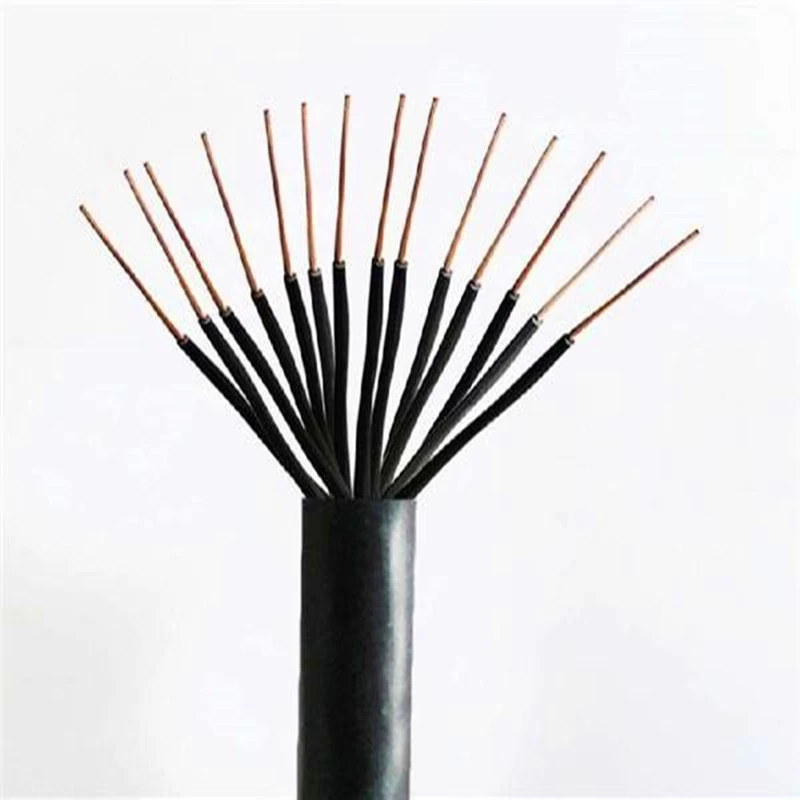

KVV
|
Copper
conductor PVC insulated PVC sheath control cable
|
|
KVVR
|
Strand
copper conductor PVC insulated PVC sheath control cable
|
|

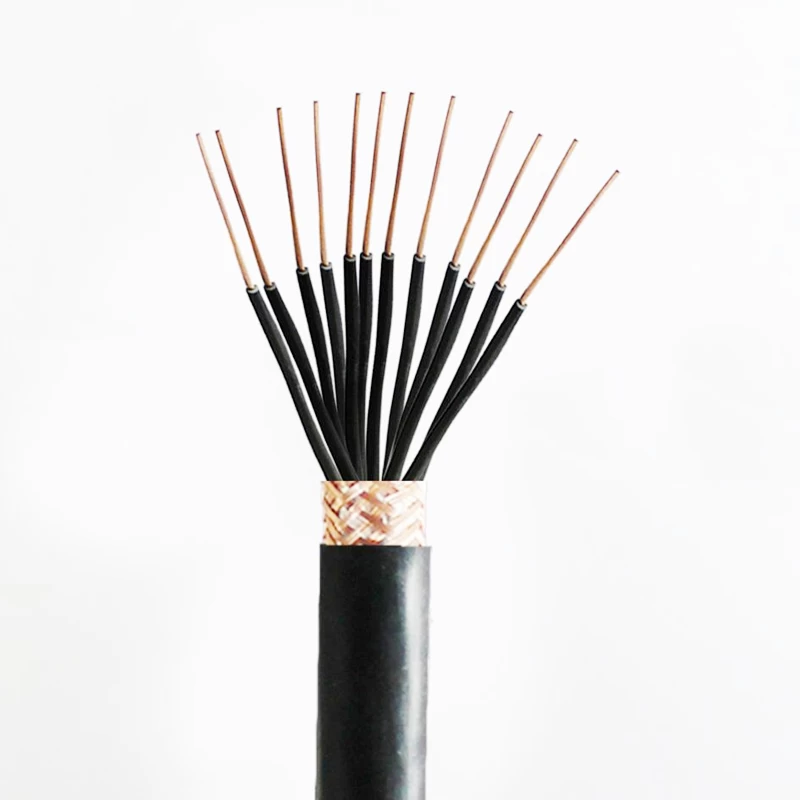

KVVP
|
Copper
conductor PVC insulated copper wire braid shielded PVC sheath control cable
|
|
KVVP2
|
Copper
conductor PVC insulated copper tape shielded PVC sheath control cable
|
|

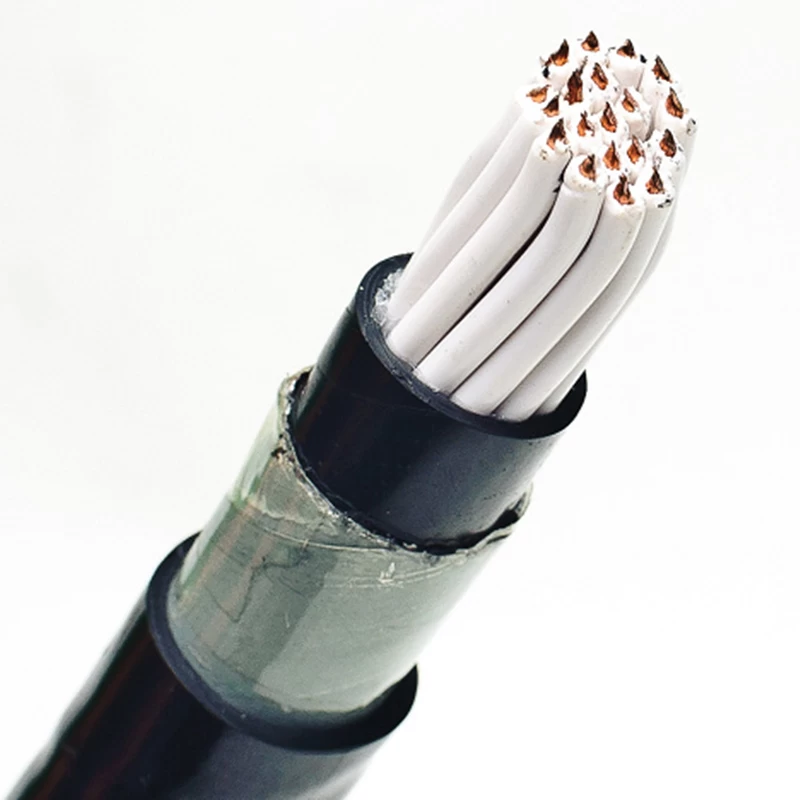

KVV22
|
Copper
conductor PVC insulated steel tape armored PVC sheath control cable
|
|
KVV32
|
Copper
conductor PVC insulated steel wire armored PVC sheath control cable
|
|
KVVP2-22
|
Copper
conductor PVC insulated copper wire shielded steel tape armored PVC sheath
control cable
|
|
KYJV
|
Copper
conductor XLPE insulated PVC sheath control cable
|
|
KYJVR
|
Strand
copper conductor XLPE insulated PVC sheath control cable
|
|
KYJVP
|
Copper
conductor XLPE insulated copper wire braid shielded PVC sheath control cable
|
|
KYJVP2
|
Copper
conductor XLPE insulated copper tape shielded PVC sheath control cable
|
|
KYJV22
|
Copper
conductor XLPE insulated steel tape armored PVC sheath control cable
|
|
KYJV32
|
Copper
conductor XLPE insulated steel wire armored PVC sheath control cable
|
|
KYJVP2-22
|
Copper
conductor xlpe insulated copper wire shielded steel tape armored PVC sheath
control cable
|
|
Type of
Control Cable
|
Description of Control Cable
|
|

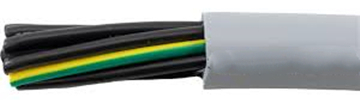

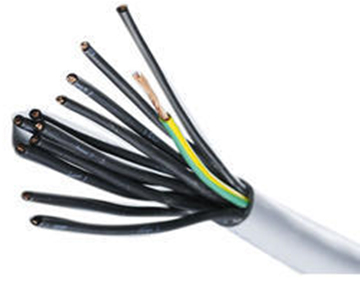

YY control cable
(YSLY)
|
Versatile unscreened or unshielded cable suitable for most situations where there
is only light mechanical stress.
|
|
CY control cable
(YSLCY)
|
Multicore screened flexible cable with Polyethylene Terephthalate (PETP) for electromagnetic interference free-transmission.
|
|
SY control cable
(YSLYSY)
|
Flexible shielded cable with galvanised steel wire braid for additional mechanical protection.
|
|
LiYCY
control cable
|
Screened and shielded cable for applications where moderate mechanical stress and electromagnetic screening is required.
|
|
LiYY
control cable
|
Unscreened and unshielded cable for light duty in dry and humid environments.
|
|
LiHH
control cable
|
Unscreened LSZH low capacitance control.
|
|
LiHCH
control cable
|
Screened LSZH data transmission cable.
|

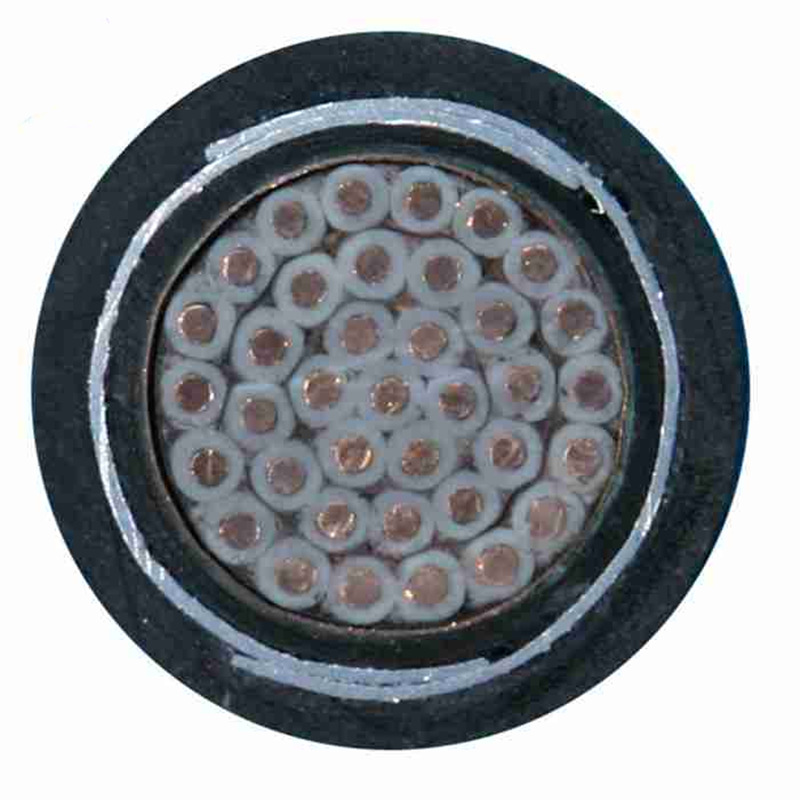

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, strand class 5, flexible.
---Insulation Material (inner insulation)
Soft PVC (polyvinyl chloride).

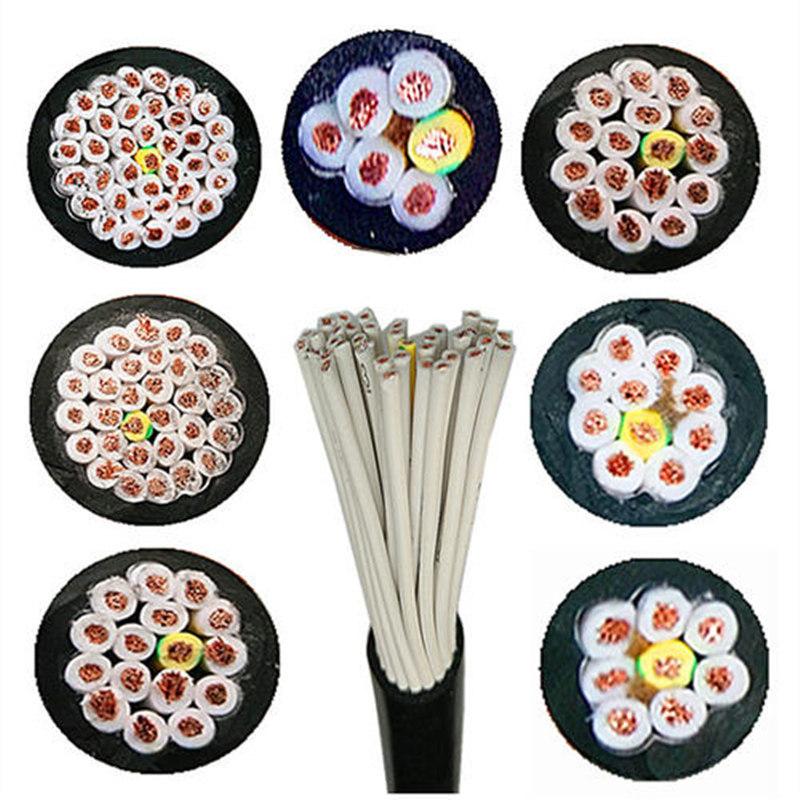

---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
7C or above: black insulation and marks white number, maybe has a earth wire of yellow/green.
Remark: we will choose other colors according to the customer request.
---Shielded Material (inner braided)
Pure copper wire, or tinned copper wire
---Screened Material (out cover)
Aluminum foil, or copper tape.
---Inner Sheath (optional)
PVC (polyvinyl chloride)
---Sheath Material (out insulation)
Soft PVC (polyvinyl chloride)
---Sheath Colour
Black, white, or others.
---Core Number
2～61 cores, 2C～61C.
---Voltage Rate (U0/U)
300/500V, 450/750V.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed:
8 x Out Diameter.
---Production Standard
GB/T 9330, IEC 60227, BS EN 50266, VDE 0207, VDE 0250, VDE 0295.
---Products Delivery
Within 7-10 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the KVV shielded flexible cable, according
to the practice, the common specification is 0.75～2.5 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable: Good
Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
