Kwikstage Scaffolding Diagonal Brace / Bay Brace

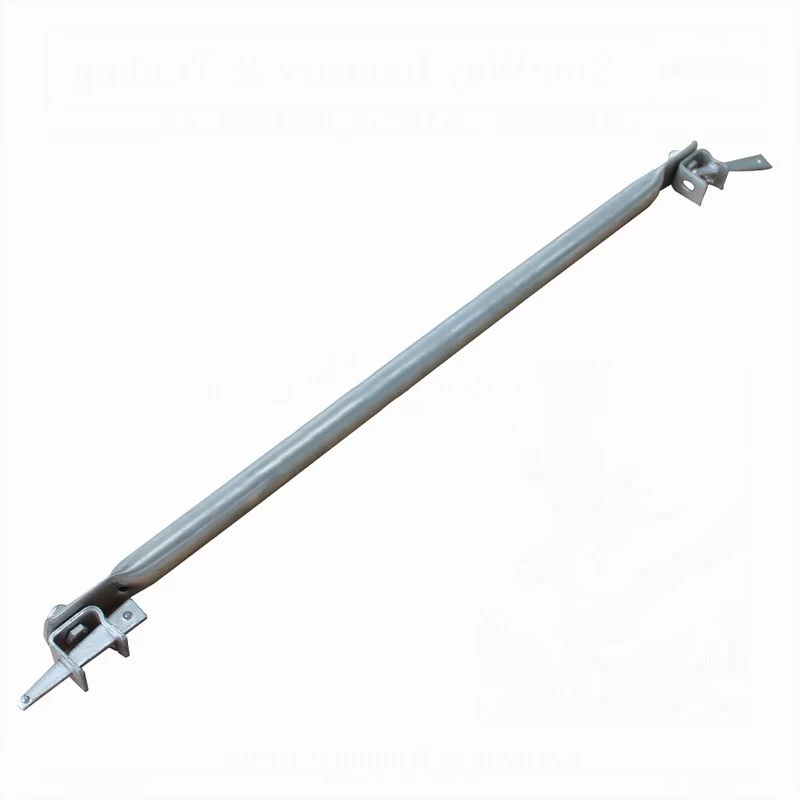

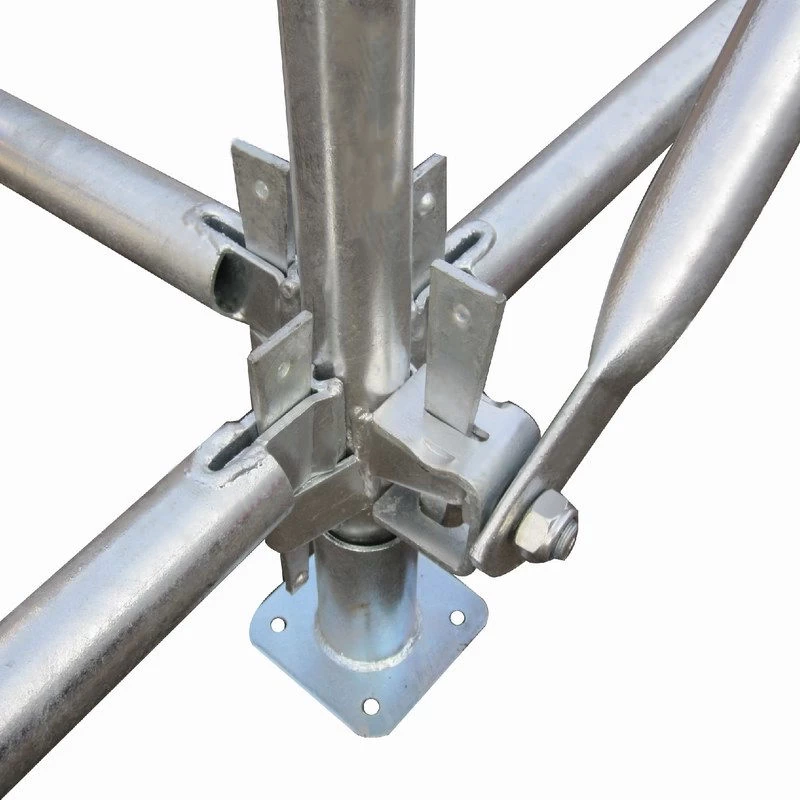

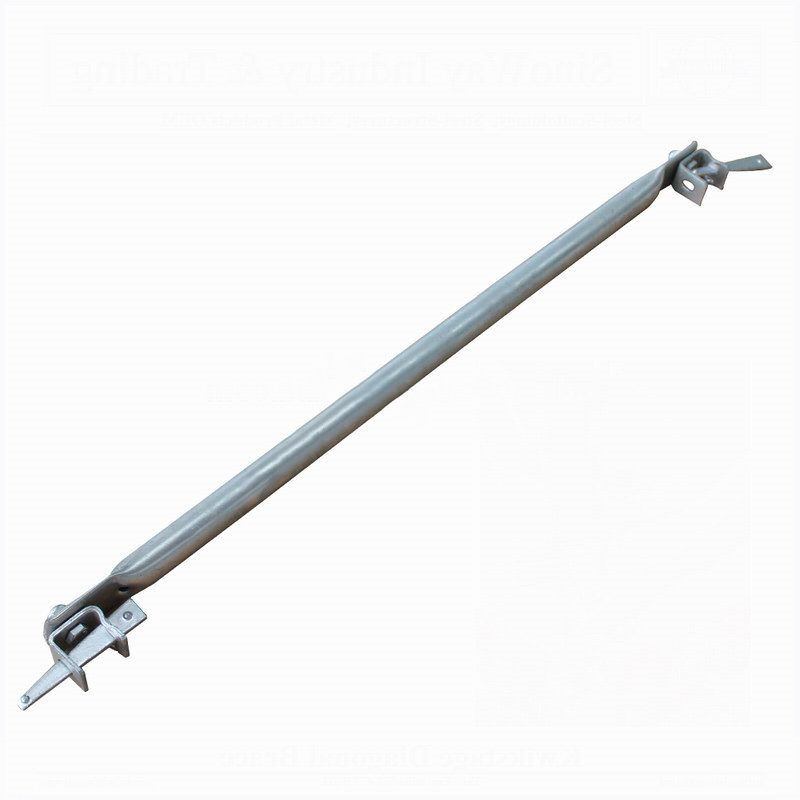

Kwikstage System Scaffolding Diagonal Brace, also called bay brace, is a  main scaffolding component that gives additional strength to the structure and keep it stable. The brace is made by O.D48.3x2.3mm tube and bolt-jointed the C pressing adaptors with wedge pins at brace ends. It meets the Standard requirements of AS/NZS 1576.


Kwikstage Scaffolding Main Componenets: Vertical (Standard), Horizontal (Ledger), Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return Transom, Plank, Toe Board, Stairway, Brick Guard (Mesh Panel), Gate Standard, Trim Standard, Hop Up Bracket, Hop Down Bracket, Tie Bar, Base Jack, U-head Jack, and so on.

Facebook Twitter Pinterest LinkedIn 分享

Kwikstage Scaffolding Diagonal Brace / Bay Brace


Product Details:

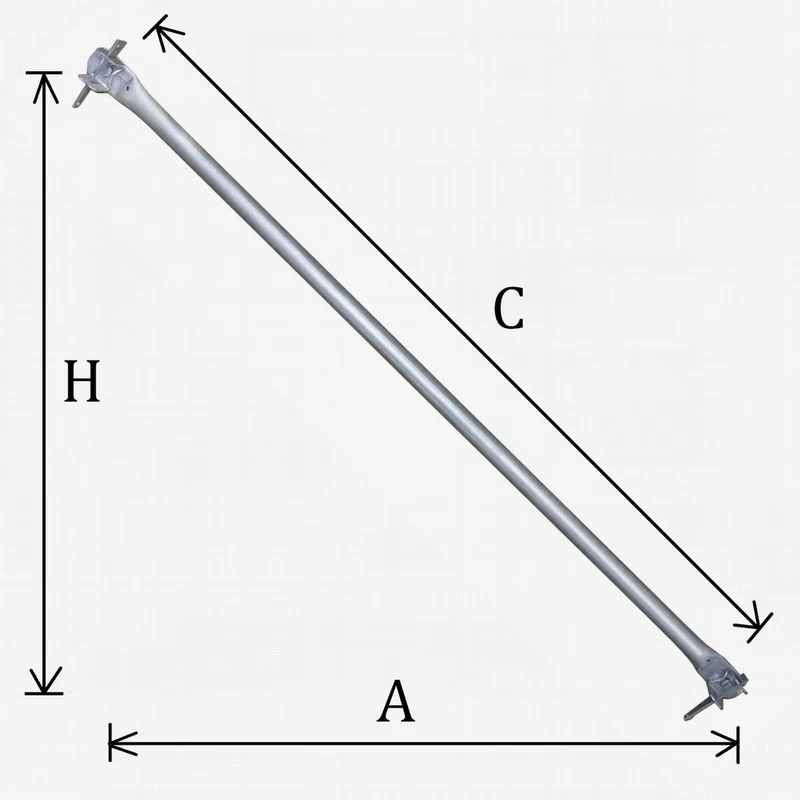

Code Description Material Size Weight(kg) Weight(lbs)
KS.DB.305250 3.05x2.5M Diagonal Brace Ø48.3x2.3mm; Q235 A: 3048mm; H: 2475mm; C: 3926mm 11.71  25.82
KS.DB.305200 3.05x2.0M Diagonal Brace A: 3048mm; H: 1980mm; C: 3635mm 10.96  24.17
KS.DB.244250 2.44x2.5M Diagonal Brace A: 2438mm; H: 2475mm; C: 3474mm 10.54  23.24
KS.DB.244200 2.44x2.0M Diagonal Brace A: 2438mm; H: 1980mm; C: 3141mm 9.68  21.34
KS.DB.183200 1.83x2.0M Diagonal Brace A: 1829mm; H: 1980mm; C: 2695mm 8.52  18.79
KS.DB.183150 1.83x1.5M Diagonal Brace A: 1829mm; H: 1485mm; C: 2356mm 7.64  16.85
KS.DB.183100 1.83x1.0M Diagonal Brace A: 1829mm; H: 990mm;   C: 2079mm 6.93  15.28
KS.DB.152200 1.52x2.0M Diagonal Brace A: 1524mm; H: 1980mm; C: 2498mm 8.01  17.66
KS.DB.152150 1.52x1.5M Diagonal Brace A: 1524mm; H: 1485mm; C: 2128mm 7.05  15.55
KS.DB.152100 1.52x1.0M Diagonal Brace A: 1524mm; H: 990mm;   C: 1817mm 6.25  13.78
KS.DB.127200 1.27x2.0M Diagonal Brace A: 1268mm; H: 1980mm; C: 2351mm 7.63  16.82
KS.DB.127150 1.27x1.5M Diagonal Brace A: 1268mm; H: 1485mm; C: 1953mm 6.60  14.55
KS.DB.127100 1.27x1.0M Diagonal Brace A: 1268mm; H: 990mm;   C: 1609mm 5.71  12.59
KS.DB.076150 0.76x1.5M Diagonal Brace A: 762mm;   H: 1485mm; C: 1669mm 5.86  12.92
KS.DB.076100 0.76x1.0M Diagonal Brace A: 762mm;   H: 990mm;   C: 1249mm 4.77  10.52



Features:

Tube Dimension: O.D 48.3x2.3mm. Other tube thickness 3.0mm/2.75mm/2.5mm/2.0mm is also available by request.

Steel Tube Grade: Q235

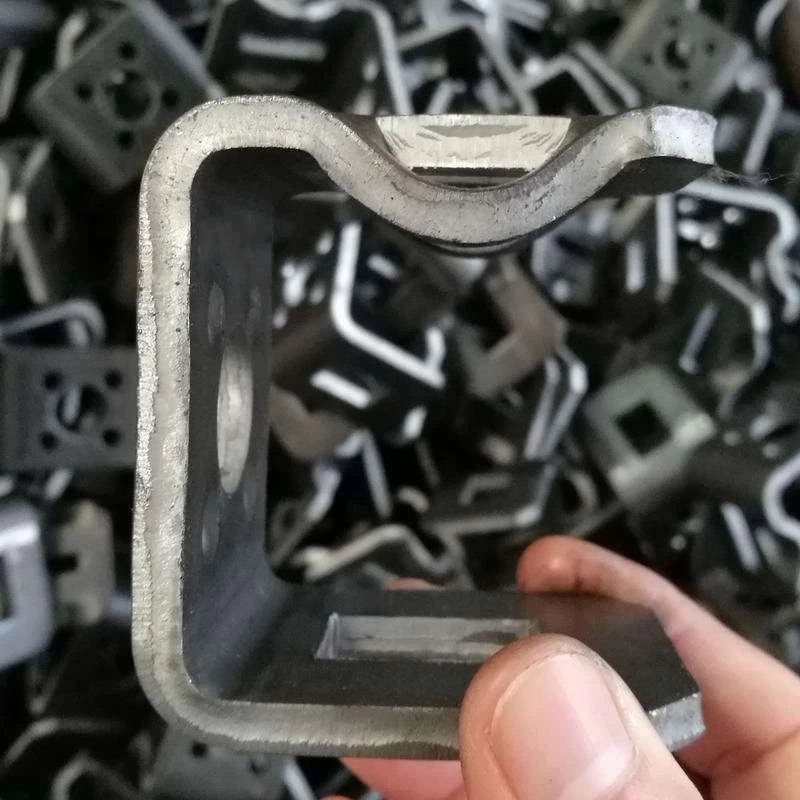

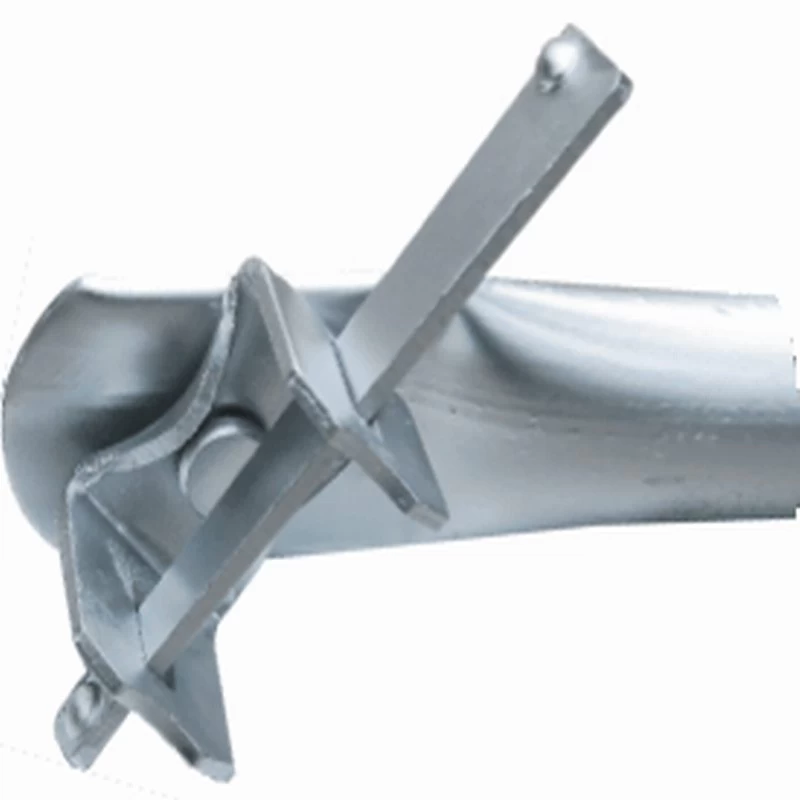

Brace Fitting: Steel Plate C Pressing

Wedge Pin: t=6mm

Suface Finishing: Hot Dip Galvanized; Pre-galvanized Tubing, Powder Coated, Painted


Quality Standard: AS/NZS 1576

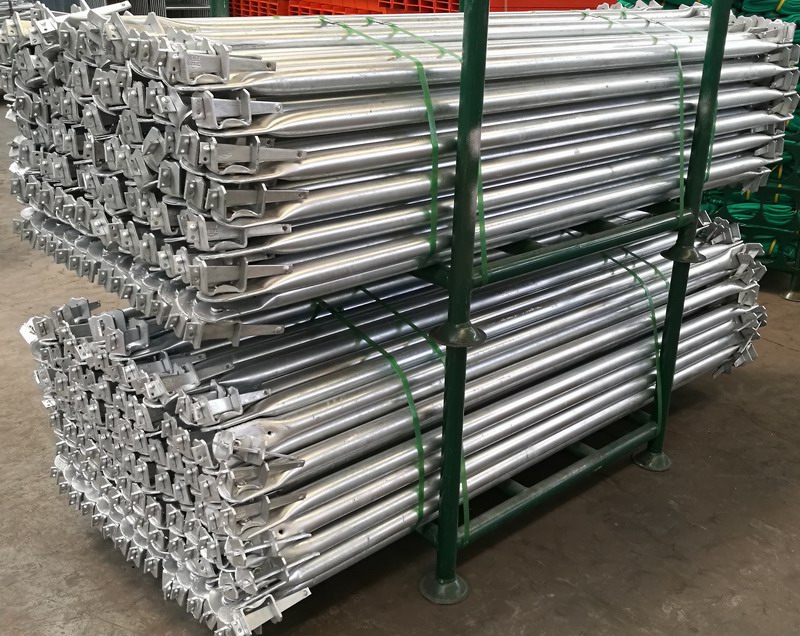

Kwiksatge Scaffolding Packing and Loading:
