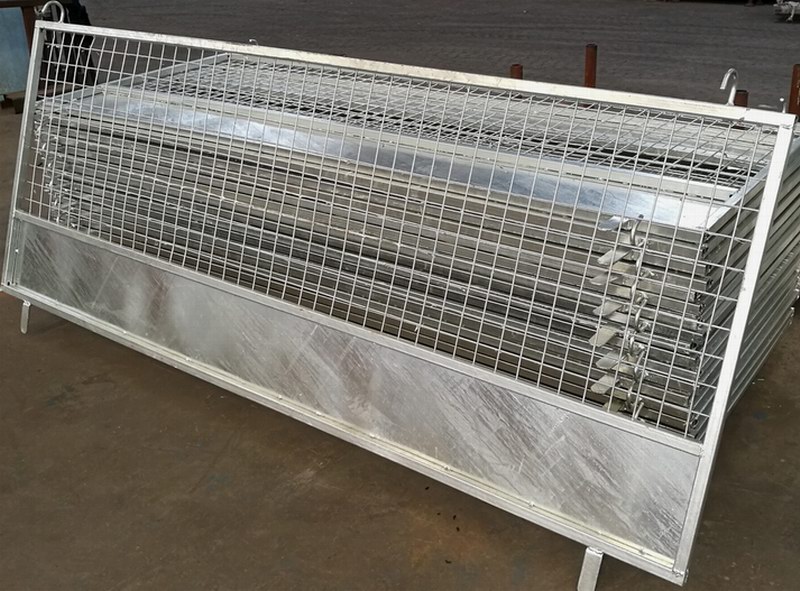

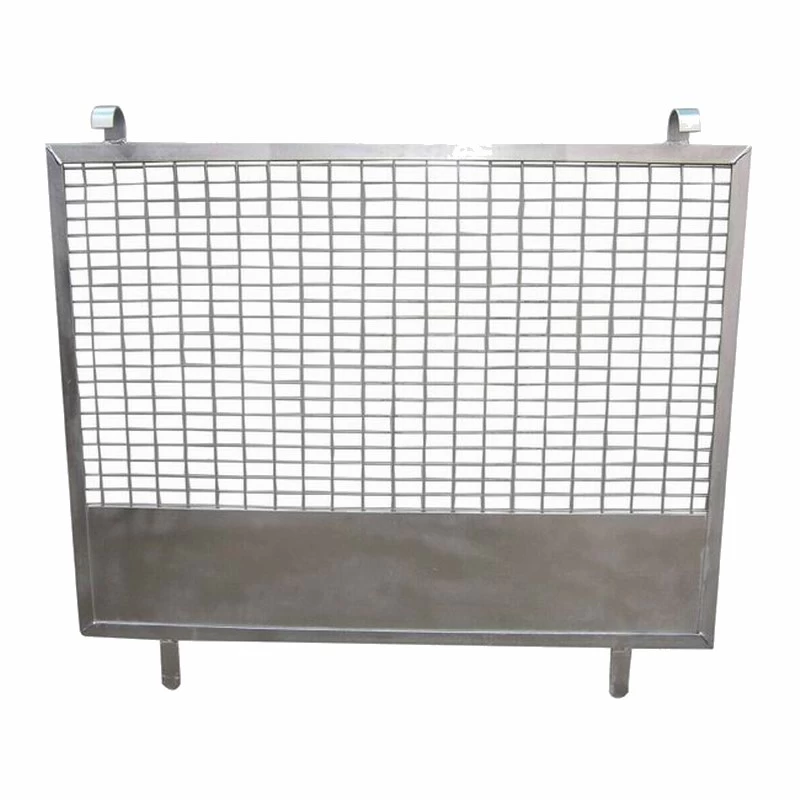

Kwikstage Scaffolding Mesh Panel / Brick Guard
|
Code
|
Description
|
Material
|
Size
|
Weight (kg)
|
Weight (lbs)
|
|
KS.MP.244
|
2.44M Mesh Panel
|
Wire mesh grid 50x25mm, toe board t=1.8mm
|
2438mm (8')
|
22.50
|
49.61
|
|
KS.MP.183
|
1.83M Mesh Panel
|
1829mm (6')
|
19.44
|
42.87
|
|
KS.MP.152
|
1.52M Mesh Panel
|
1524mm (5')
|
16.66
|
36.74
|
|
KS.MP.127
|
1.27M Mesh Panel
|
1268mm (4'2")
|
14.33
|
31.60
|
|
KS.MP.122
|
1.22M Mesh Panel
|
1219mm (4')
|
13.89
|
30.63
|
|
KS.MP.091
|
0.91M Mesh Panel
|
914mm (3')
|
11.11
|
24.50
|
|
KS.MP.076
|
0.76M Mesh Panel
|
762mm (2'6")
|
9.73
|
21.45
|
Features:
Panel frame: Angle steel 30x30x3mm or Squre Tube 25x25x1.5mm are available.
Wire Mesh: Mesh grid 50x25mm, 50x50mm or 40x40mm are available.
Toe Board Plate: 1.8mm or 1.5mm thickness are available.
Steel Grade: Q235
Finishing: Hot dip galvanized, powder coated, painted.
