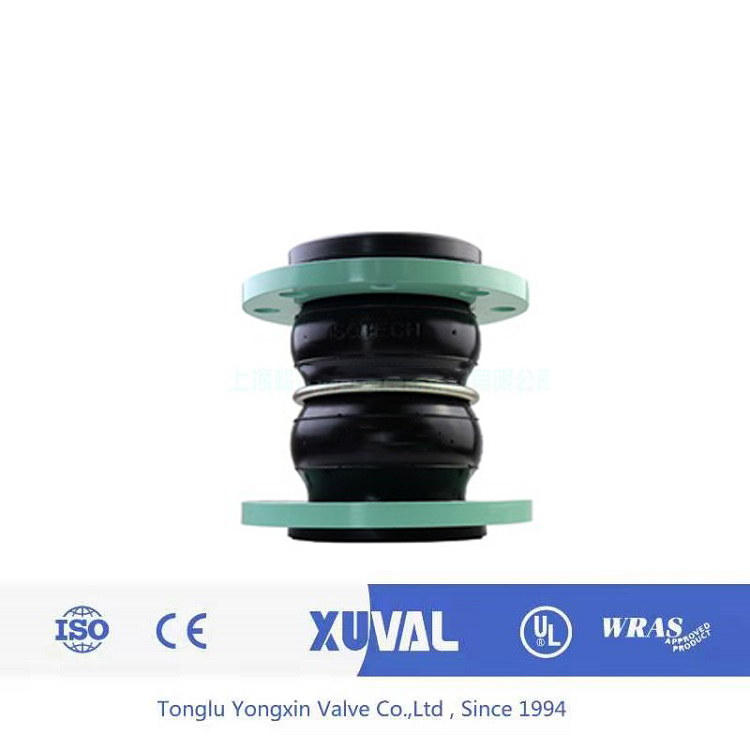

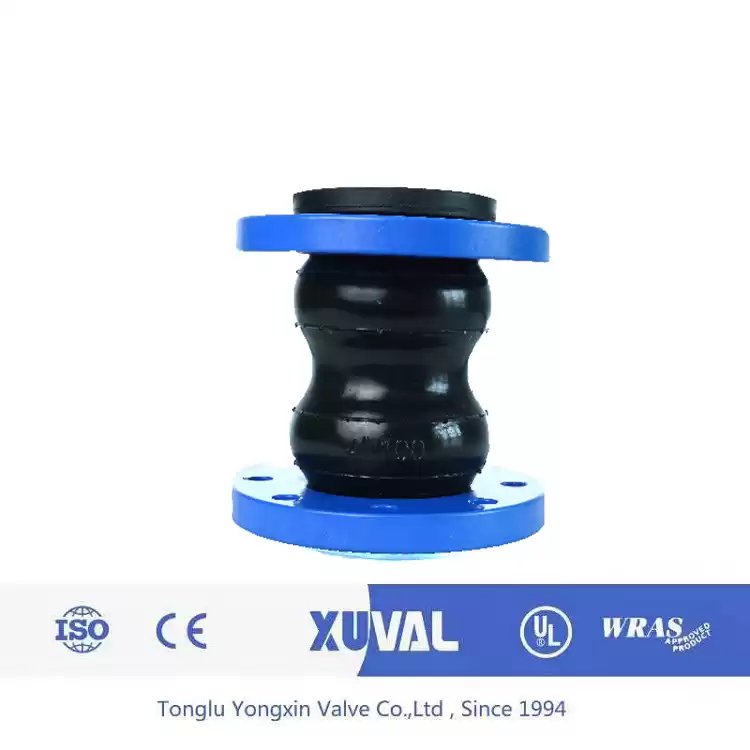

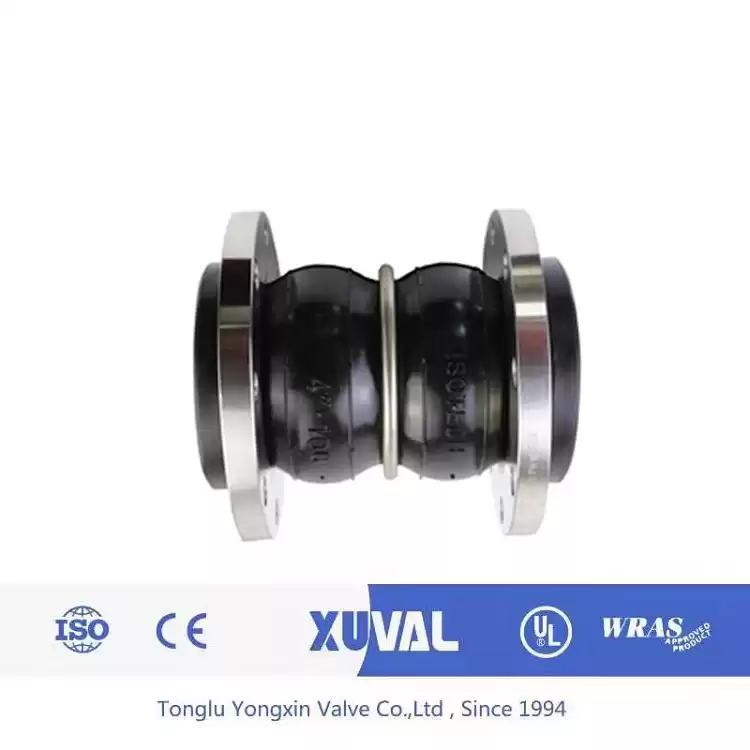

KXT-S Flexible Dual Spherical Rubber Joint
KXT double sphere flexible rubber joint:rubber joint is also known as rubber soft joint, pipe shock absorber, shock absorber, soft joint, etc.This product introduces foreign advanced production technology, the inner layer is subject to high pressure in the production process, the nylon cord cloth and the rubber layer are better combined, the working pressure is higher than the ordinary flexible rubber joint, the quality is better.
KXT double sphere flexible rubber joint
KXT double sphere flexible rubber joint:rubber joint is also known as rubber soft joint, pipe shock absorber, shock absorber, soft joint, etc.This product introduces foreign advanced production technology, the inner layer is subject to high pressure in the production process, the nylon cord cloth and the rubber layer are better combined, the working pressure is higher than the ordinary flexible rubber joint, the quality is better.Its characteristic is the inner rubber layer blends into one, the smooth seamless mark, the label USES the vulcanization craft, and the product unifies together.
It can be widely used in water supply and drainage, circulating water, HVAC, fire fighting, papermaking, pharmaceutical, petrochemical, Marine, water pump, compressor, fan and other piping systems.
Technical parameters:
Model
|
KXT-S1
|
KXT-S2
|
KXT-S3
|
|
Item
|
|
Mpa(kgf/cm²) Working pressure
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
Mpa(kgf/cm²) Explosion pressure
|
2.0(20)
|
3.0(30)
|
4.5(45)
|
|
Kpa(mm/Hg) Vacuum
|
53.3(400)
|
86.7(650)
|
100(750)
|
|
℃ Applicable Temperature
|
-15℃~115℃（-30℃~250℃ under special conditions)
|
|
Applicable media
|
Air,compressed air,water,sea water,hot water,oil,acid,alkali,and so on.
|

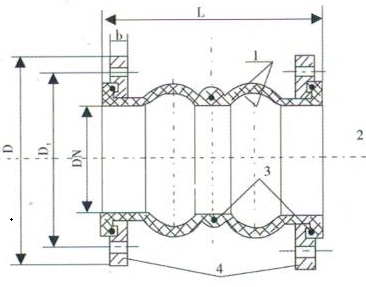

Main data:
DN
|
L
mm
|
Flange
thickness
mm
|
Bolts
Qty
n
|
Diameter of
Bolt hole
mm
|
D1
mm
|
Axial displacement(mm)
|
Horizontal
displacement
(mm)
|
Angular
Deflection
(a1+a2)
|
mm
|
inch
|
Extension
|
Compression
|
|
40
|
1.5
|
150
|
18
|
4
|
18
|
110
|
10
|
20
|
20
|
30
|
|
50
|
2
|
150
|
20
|
4
|
18
|
125
|
10
|
20
|
20
|
30
|
|
65
|
2.5
|
150
|
20
|
4
|
18
|
145
|
10
|
20
|
20
|
30
|
|
80
|
3
|
150
|
20
|
8
|
18
|
160
|
10
|
20
|
20
|
30
|
|
100
|
4
|
200
|
22
|
8
|
18
|
180
|
15
|
30
|
25
|
30
|
|
125
|
5
|
200
|
22
|
8
|
18
|
210
|
15
|
30
|
25
|
30
|
|
150
|
6
|
200
|
24
|
8
|
23
|
240
|
15
|
30
|
25
|
30
|
|
200
|
8
|
220
|
24
|
8
|
23
|
295
|
20
|
40
|
30
|
30
|
|
250
|
10
|
220
|
26
|
12
|
23
|
350
|
20
|
40
|
30
|
30
|
|
300
|
12
|
320
|
26
|
12
|
23
|
400
|
20
|
40
|
30
|
30
|
|
350
|
14
|
320
|
26
|
16
|
23
|
460
|
20
|
40
|
30
|
30
|
|
400
|
16
|
320
|
26
|
16
|
25
|
515
|
20
|
40
|
30
|
30
|
|
450
|
18
|
320
|
26
|
20
|
25
|
565
|
25
|
45
|
30
|
30
|
|
500
|
20
|
320
|
28
|
20
|
25
|
620
|
25
|
45
|
30
|
30
|
|
600
|
24
|
320
|
30
|
20
|
30
|
725
|
25
|
45
|
30
|
30
|
NOTE:
1.For special order,products can be made according to customer's requirements,flange standard is based on GB/T9115.1-2000,the materials of spheres are Buna,EPDM,chloroprene rubber and so on.
2.The product with DN>200mm is available for water-supplying overhead.The pipe must be equipped with fixed support or fixed bracket, if not,the product shall be installed with escapement.
3.When using Rubber Joints, the matching flanges should be valve flanges or GB/T9115.1(RF) FLANGES.
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
