Description:
It can convert LNG to CNG, fill CNG car gas storage tanks with CNG, and provide other convenient services. Our company can provide all equipment and services for L-CNG filling stations, including LNG storage tanks, plunger pump skids, high pressure gasifier skids, sequence control panels, cylinder banks, CNG compressors, station control systems, and on-site stations Installation and debugging, etc., through the combination of the above equipment, the conversion from LNG to CNG, CNG storage, CNG filling and other functions can be realized. At the same time, our company can provide LNG / L-CNG joint construction station, so that LNG and CNG can be injected into the same station at the same time.
Features:
LCNG filling station adopts standardized design and production;
* Low temperature and high pressure plunger pump, valve, pipeline,instrument cabinet, etc. into one skid. High pressure gasifier, water bath electric heater, high pressure EAG, priority panel and other equipment integrated into one skid;
* Equipped with flammable gas detector ,temperature sensor, overpressure protection and emergency stop for safety.
* Advanced technology - shock absorption and noise reduction,safe and reliable;
* Skid mounted - ready to use, small footprint, convenient and fast;
* Eliminate gas blockage - long life of pump head packing;
* High degree of automation unattended operation.
Technical Parameters：
|
No.
|
Name
|
Number
|
Type
|
Application
|
Key Equipment
|
Station
Capacity
|
|
1
|
LNG
Fueling Station
|
EPC0702001
|
LNG
Station Solution
|
heavy
trucks，city bus,coach,
|
Cryogenic
submersible pump，Low
temperature storage tank，LNG
Dispenser，Double pump
skid，Station BOG
recycling skid
|
30-120m³
|
|
2
|
L-CNG
filling station
|
EPC0702002
|
L-CNG
Station Solution
|
heavy
trucks，city bus,coach,Private
Fleet Station/Pubilc Retail Station serving
sedans,pickups,taxi,trucks,light/medium duty vehiles
|
L-CNG
plunger pump skid,L-CNG high-pressure gasification skid,Cryogenic submersible
pump，Low temperature storage
tank，LNG Dispenser,CNG
dispenser
|
10-20mmscfd
|
|
3
|
LNG
gasification station
|
EPC0702003
|
LNG
gasification station solution
|
heavy
trucks，city bus,coach,
|
LNG dump truck skid，Storage
tank pressurized skid，Measuring
pressure regulating skid，air
type vaporizer，water
bath type vaporizer
|
30-120m³
|
|
4
|
LNG
receiving station
|
EPC0702004
|
LNG
receiving station Solution
|
|
Unloading arm, storage tank, low-pressure transfer pump, high-pressure
transfer pump, vaporizer, BOG compressor, flare tower
|
|
Optional configurations:
* Cryogenic submersible pump
* low temperature storage tank
* dispenser
* Double pump skid
* Plunger pump skid

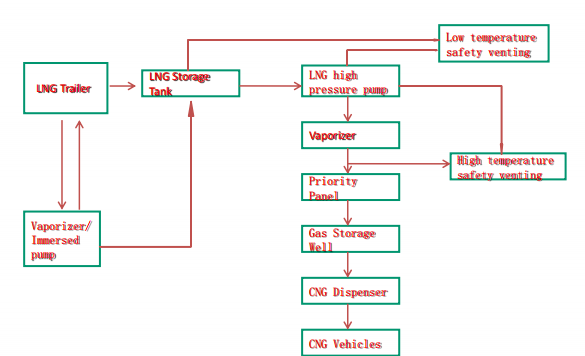

Operating process:
Applications:
LNG&CNG filling for heavy trucks，city bus,coach,Private Fleet Station/Pubilc Retail Station serving sedans,pickups,taxi,trucks,light/medium duty vehiles
