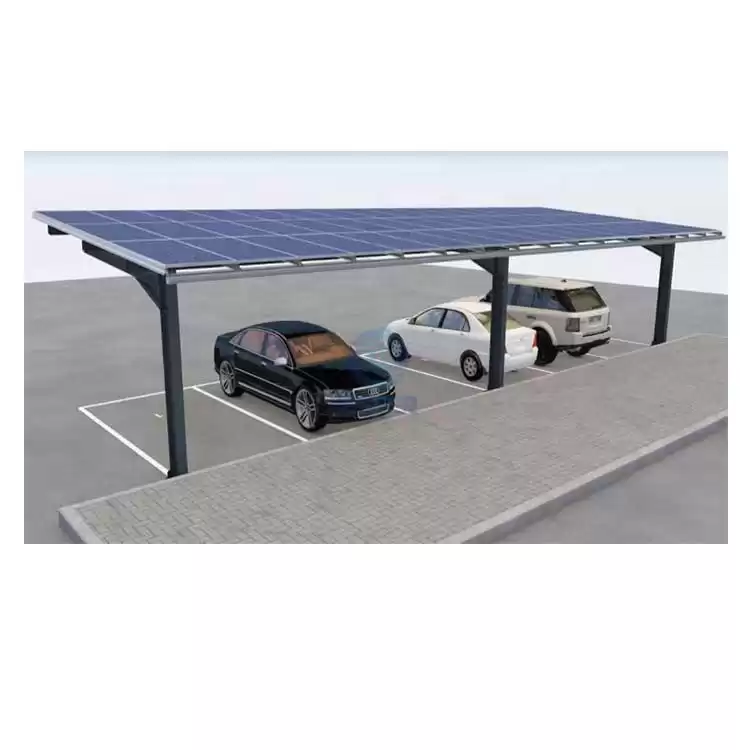

L Type Carbon Steel Weatherproof Solar Pv Carport System

Jesfer carport structure system included L Type,H Type,4 posts Type,Triangle Type,T Type,Y Type Etc,welcome to contact us for free design !



L Type Carbon Steel Weatherproof Solar Pv Carport System

Solar parking lot is an overhead roof built to cover the parking area, which is different from the panel installed on the existing parking lot structure. Solar garage has a lot in common with the ground

Install solar panels, which are angled panel modules mounted on the ground rather than on the roof.

Jesfer's customizable aluminum / carbon steel solar garage installation system is the most common solar garage solution on the market, providing a variety of different design options for single row and double row parking lots. They are suitable for frames and membrane modules of any size.

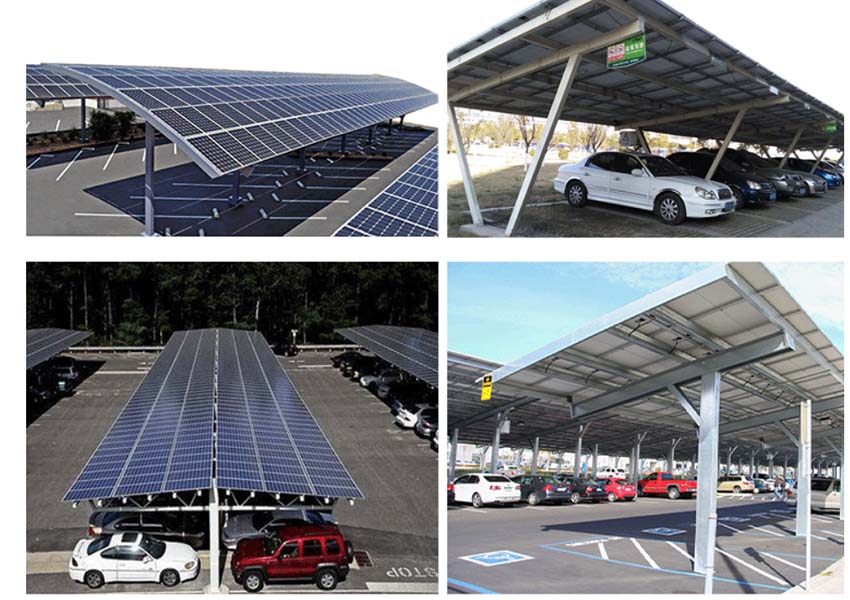

Solar Carport Suppliers


Product Paramenters

Name Aluminum carport mounting system
Raw Material
Aluminum 6063;HDG Steel;Stainless steel 304
Types
L Type,H Type,4 posts Type,Triangle Type,T Type,Y Type Etc
Processing
Extrusion,Cold Rolled,Cutting, deburring, punching, tapping,Anodized, Welded
Surface Treatment
HDG(hot dipped galvanized ),Pre-galvanized,powder Coating,Anodized (Silver,Matt,Black)
Application
Solar light industry, solar panel industry, solar power industry, solar energy industry, solar station industry,solar farm Industry.
Dimensions
Either 10FT or 20FT or cut into the length according to clients' requirements,Customized acceptable too
Tilting angle
adjustable according to practical demand
Feather
Quick and easy installation,Economic and cost saving
Wind Load
40m/s or 150km/h
Snow Load
120-140kg/m2
Warranty
10 years warranty and service life of 25 years


The Necessary detailed information is required before quoting .

  • The dimension of the solar panel: _________(Length*Width*Thickness)
  • How many solar panels do you plan to install for the project?______pcs.
  • What is the tilt angle for solar panel?: _______degree.
  • Could you pls give us the layout of solar panel array? if not, pls tell us the size (Length and Width) of your installation site?
  • How tall is the lowest height from the solar panel to the ground? _______mm
  • What installation orientation for solar panel?_______(Horizontal or Vertical).
  • .What's wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
  • Which foundation you need for your coming ground mounting system? ______( ground screw/concrete/pile/pole )
  • If you can, plese tell me Latitude and longitude of your installation site.
