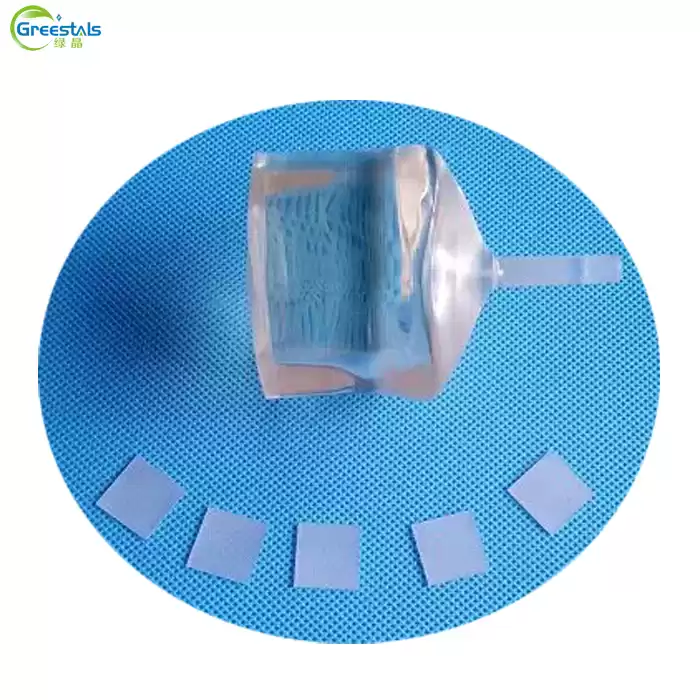

(La,Sr)(Al,Ta)O3 LSAT single crystal substrate

LSAT with a variety of high-temperature superconductors and oxide materials have good match. LSAT low melting point, with the Czochralski method, the cost is relatively low.

  • Max SizeDia50.8mm
  • Orientation<100>、<110>、<111>
  • Package100 clean bag，1000 exactly clean bag
Facebook Twitter Pinterest LinkedIn 分享
Product Name: Tantalum, lanthanum strontium aluminate (LSAT) crystal substrate
Product Description: LSAT (La, Sr) (Al, Ta) O3 is a new non-perovskite crystal twinning.LSAT with a variety of high-temperature superconductors and oxide materials have good match. LSAT low melting point, with the Czochralski method, the cost is relatively low. Thus, it is expected to replace LaAlO3/SrTiO3 as an epitaxial oxide thin monocrystalline substrate giant magnets are widely used in electrical and superconducting devices.
Technical parameters:
Chemical formula (La, Sr) (Al, Ta) O3
Crystal structure Cube: a = 3.868Å
Growth method Czochralski method
Density 6.74 g/cm3
Melting point 1840 °C
Hardness 6.5 Mohs
Thermal expansion coefficient 10 × 10-6 / K
Permittivity ~ 22
Color and Appearance According to the annealing conditions from colorless to light brown, non-twinned and visible domains
Specifications:

<100>, <110>, <111> Tolerance: + / -0.5 degrees

dia2 "x0.5mm, 10x10x0.5mm, 10x5x0.5mm

Single throw or double throw, Ra <5A

Can be customized orientation and size.

Standard Packaging: 1000 clean room, 100 clean bag or single box packaging
