Lab 1.3-Gallon/5L Rotary Evaporator With Motorized Lift

Ai SolventVap 5L series rotary evaporators is now ETL tested to UL/CSA standards. This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. All SolventVap come with all PTFE valves for solvent-resistant operations. Also come are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

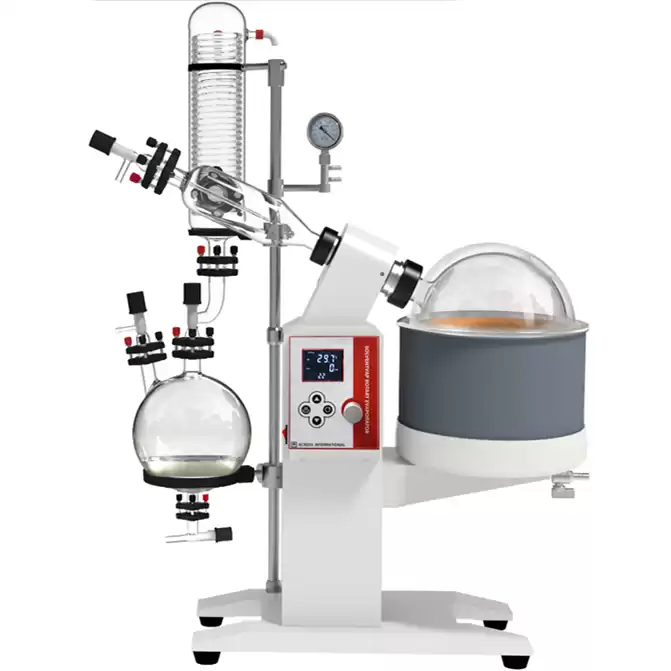

Standard Glassware Set includes 1.32 gallon (5 liters) round-bottomed evaporating flask, 0.79 gallon (3 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser for are great for distillation of solvents with higher boiling points.

Features

·        UL 61010-1 and CSA C22.2 certified, standard. CE certification optional.

·        Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.

·        Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.

·        Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.

·        Downward-condensing vacuum connection design ensures safe vacuum operation.

·        Motorized water bath lifting for precise control.

·        Easy, straight-forward visual operation with digital speed and temperature display.

·        PID temperature controller ensures accurate temperature control is maintained.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Electrical requirements	110V 60Hz single phase, 2300 watts, 21A    or  220V 50/60Hz single phase, 2300 watts, 10.5A   Rotation motor: 300 watts
Glass material	High borosilicate glass 3.3
Evaporating flask	Capacity: 1.32 gallon (5 liters)  Maximum load: Not to exceed 60% of the flask's capacity  Sealing flange: 2" diameter  Rotation speed: 10 to 140 rpm  Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
Receiving flask	0.79 gallon (3 liter)
Condenser	Glassware: Dual-circulating coils, vertical  Chilling fluid connection: 3/8" hose barb x 2  Condensing surface: 2,780 cm2 or 3 sq ft
Water bath	Temperature range: ambient to 99°C (210°F)  Temperature controller: digital  Dimensions: 11.4" diameter x 6.7" depth x 9" height  Material: stainless steel  Media: distilled water only  Max. water level: not to exceed 1" from the top rim of the bath  Number of heaters: one  Drain port: one  Exterior liner: rubber  Lifting: motoriezed  Maximum lifting distance: 4 inches
Vacuum	Ultimate vacuum level: < 3 torrs  Connection: 3/8" hose barb x 1  Sealing: Viton & PTFE gaskets
Safety	Dry-run, over-temp shut-off, built-in circuit breakers
Weight & dimensions	105 Lb (evaporator), 57 Lb (glassware)  Unit: 30 x 15.7 x 42" (WxDxH)  Shipping: 29 x 17 x 35" (evaporator), 22 x 22 x 22" (glassware) (WxDxH)
Warranty	One year warranty on rotary evaporator except glassware and all sealing gaskets.  Glassware may have minute blemishes that will not affect the function.  If you believe there are imperfections on your glassware, please contact us.  We check all our inventory and make sure no defective glassware is sent to our customers.
Compliance	UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016  CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)  CE

A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.





Example: The following table illustrates a variety of substances, ordered by increasing vapor pressure (in absolute units).

Standard package

Part description	Quantity
Ai SolventVap 1.3-gallon rotary evaporator and water bath	1 set
Vapor filtering bottle	1 pc
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass	1 pc
5L round shaped rotating evaporating flask, glass	1 pc
3L receiving flask with detachable drain port	1 pc
Three-way tee vapor buffering flask, glass	1 pc
Glass receiving flask & condenser connector elbow with PTFE open/close switch	1 set
Receiving flask glass vacuum port with PTFE open/close valve	1 set
Glass material feeding port with PTFE open/close valve	1 set
Glass vapor duct with seal (pre-installed)	1 pc
PTFE vacuum sealing kit (pre-installed)	2 pcs
PTFE extension feeding hose	1 pc
Stainless steel pole	1 pc
Mechanical vacuum gauge with 2 hose barb connectors	1 pc
Rubber-wrapped condenser and receiving flask support and bracket	3 pcs
Flask quick clamp (4 smaller pcs for condenser, receiving flask and feeder, 1 larger pc for 3-way flask) & oring	6 sets
GL14 connector	3 pcs
Allen key and backup inner hex screws	4 pcs
NEMA L5-30 30A 125V power plug	Installed on 110V unit
Ai plexiglass water bath cover for SolventVap 5L	1 pc
User's manual	1 pc
