Lab 1100℃ Ni-Based Super-Alloy High Pressure Reactor


  • Dimension(L*W*H)340mm( W) * 320mm( D) * 820mm( H)
  • Weight35KG
  • Service temperature≤1100℃
  • Use pressure3MPa
  • Capacity300mL
  • Automatic GradeAutomatic
  • Voltage AC 108~240V
  • ComplianceCE Certified
  • Minimum Order Quantity1
  • Model NumberOLT-HP-1100
  • Lead Time6-8Day

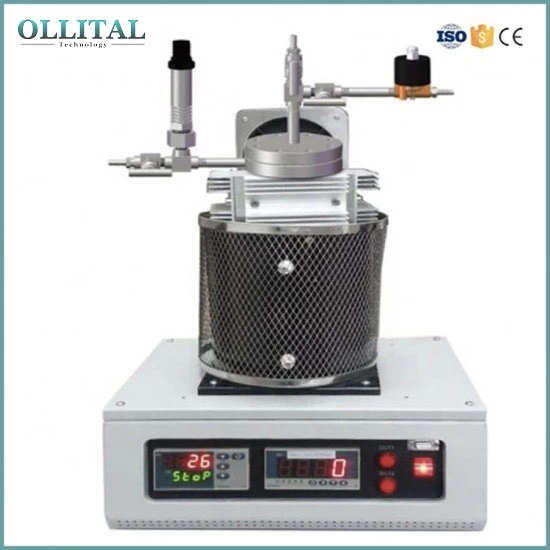

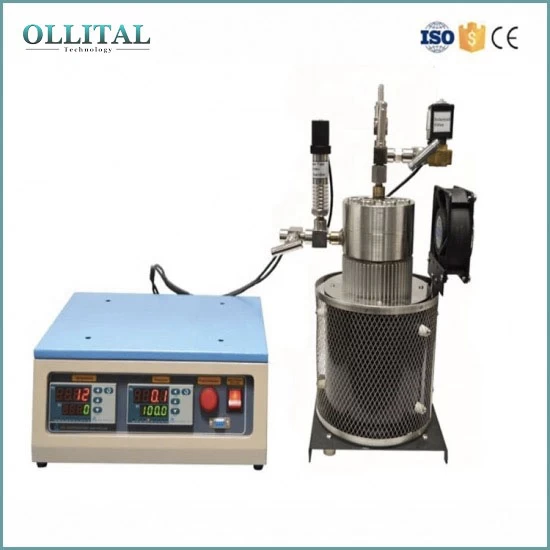

OLT-HP-1100 is a 100mL reactor made of Ni-based Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 3 MPa under oxygen or inert gases. It is an ideal tool for preparing advanced material by the hydrothermal method, especially for heat treatment of sample under high oxygen pressure. A solenoid valve is installed on the flange for automatic pressure relief control. Temperature control and pressure monitoring software are included for remote control.

Model Numbe

OLT-HP-1100

Input Power

Input voltage: AC 108~240V, 50/ 60Hz, single phase

Power: 1.5KW

Pressure Vessel

 (1) Ni-based superalloy hydrothermal reactor with 300mL capacity.

  (2)Made of Ni-based superalloy GH747

  (3) Reactor size: 70mm( OD) * 25mm( ID) * 210mm( H)

   (4) Air cooled flange via aluminum heat radiator

  (5)  A small quartz or alumina boat should be used to load the sample inside the reactor, which increases vessel service life.

   (6) Gold or Ni foil can be used to wrap the crucible boat to minimize contamination to vessel

Working pressure

18MPa  ≤800℃

13MPa  ≤900℃

8MPa   ≤1000℃

3MPa   ≤1100℃

Temperature Control and Heater

Limiting temperature: 1100℃

Working temperature: 1000℃

Heating zone length: 330mm

Constant temperature zone: 80mm within ±1℃

Heating element: Fe-Cr-Al alloy

Thermocouple: K type

Program: Digtial temperature controller, 30 programmable segments and ±1℃ accuracy

Size

340mm( W) * 320mm( D) * 820mm( H)

Net weight

35KG

Warranty

One year limited warranty with lifetime support

Pressure Monitoring and Relief:

(1) Precision high pressure sensor (measurement range up to 25 MPa, or 250 bar) is installed on the pressure vessel. The pressure monitor displays pressure in bar

(2) Pressure monitor allows the user to set a high pressure alarm. When the pressure reaches the alarm set point (15 MPa max), alarm will sound and the pressure will be released via a solenoid valve on the flange. For using the reactor with a pressure > 15 MPa at low temperature, please shut off the needle valve near the solenoid valve and use the manual pressure relief valve




Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
