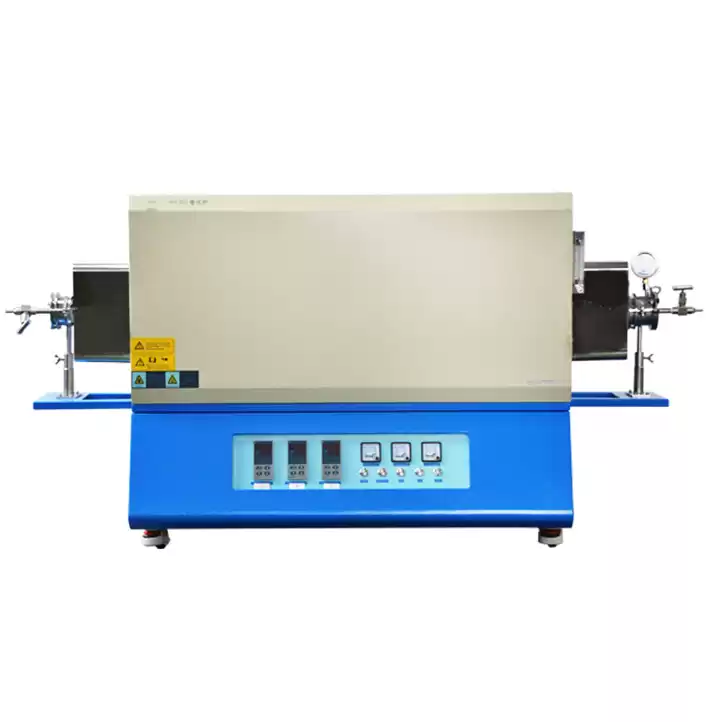

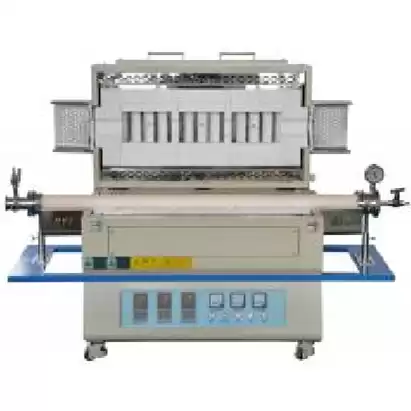

Lab 1200-1200-1200C Three Zone Tube Furnace for Atmosphere Sintering
This split tube furnace uses a resistance wire as a heating element, a double-shell structure and a 30-stage
program temperature control
system, phase shift triggering, thyristor control, and alumina polycrystalline
fiber material for the furnace. It has the advantages of temperature field
balance, low surface temperature, fast temperature rise and fall, energy
saving, etc. It is an ideal product for high temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities,
research institutes and industrial and mining
enterprises.
Detailed technical parameters
|
Model
|
TL1200-1200-1200-I
|
TL1200-1200-1200-II
|
TL1200-1200-1200-III
|
TL1200-1200-1200-IV
|
|
Power
|
5.4KW
|
5.4KW
|
5.4KW
|
7.8KW
|
|
Tube size（OD）(mm)
|
Dia 60 X1300
|
Dia80X1300
|
Dia100X1300
|
Dia150X1300
|
|
Supply voltage
|
220V
|
|
Phase
|
single phase
|
|
Heating element
|
Resistance wire
|
|
Temperature control
|
UAV program temperature control instrument (standard)
1, 30-stage program temperature control intelligent PID adjustment.
2. With over-temperature protection, the electric furnace heating
circuit is automatically cut off when the temperature is over-temperature or
broken, (when the electric furnace temperature exceeds 1200 degrees or the
thermocouple is blown, the AC relay on the main circuit will be automatically
disconnected, the main circuit is broken. On, the ON light on the panel is
off, the OFF light is on, and the limited protection electric furnace).
3, with 485 communication interface (standard when purchasing
software)
4, with power-off protection function, that is, when the power is
turned on after the power is turned off, the program does not start from the
starting temperature, but the furnace temperature rises from the time of
power failure.
5, the meter has the function of temperature self-tuning
(you need to pay extra for the replacement of imported
instruments, optional)

FP93 temperature controller European
instrument Touch screen instrument
(shimaden, Japan)
|
|
Chambermaterial
|
1. High-quality high-purity alumina polycrystalline fiber curing
furnace formed by vacuum suction filtration.
2. Formed by Japanese technology.
3. The spacing and pitch of the resistance wires in the furnace are
all arranged according to the best thermal technology in Japan, and the
temperature field is simulated by the thermal software.
|
|

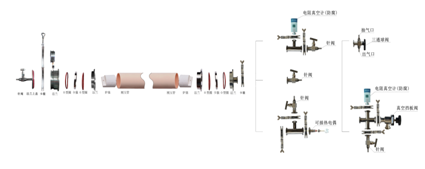

Valve and flange
SHAPE\* MERGEFORMAT
|
|
|
Control accuracy
|
+/- 1℃
|
|
Trigger
|
Phase-shifted
trigger
|
|
Electric appliance
|
Zhejiang chint
|
|
silicon controlled
|
106/16ESEMIKRON
|
|
Highest temp in zone 1, 2, 3
|
1200℃
|
|
Rated temp in zone 1, 2, 3
|
1100℃
|
|
Heating rate
|
≤30℃/ Min(can be modified as required)
|
|
Recommended heating rate
|
≤15 ℃/ Min
|
|
Thermocouple Type
|
K
|
|
Heating length
|
205+205+205mm
|
|
Constant temperature length
|
80mm
|
|
Ambient surface temperature
|
≤45℃
|
|
Open cover protection system
|
When the furnace cover is opened, the relay will automatically cut off
the main power supply, effectively ensuring the safety of the user
|
