Lab 15T Manual Hydraulic Press with Plexiglass Cover
Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Advantages
1.Small size, light weight,No oil leakage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

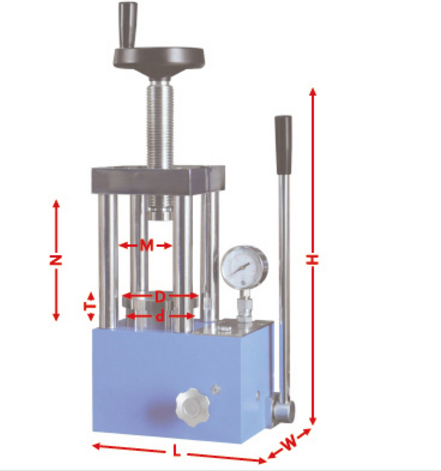

Specification
|
Product Name
|
Lab Pressing Machine
|
|
Type
|
TMAX-15T
|
|
Pressure range
|
0-15T(0-30MPa)
|
|
Piston diameter
|
Chrome plated cylinder 80 mm
|
|
Overall structure
|
Unsealed connection of equipment to reduce leakage
|
|
Pressure gauge
|
Digital Display0.00-40.00MPa
|
|
Maximum piston stroke
|
30mm(T)
|
|
Protecting mask
|
Plexiglass
|
|
Pressure stability
|
≤1MPA/10Min
|
|
Worktable diameter
|
90mm(D)
|
|
Number of columns
|
4 pillars
|
|
Column spacing
|
80*130mm
|
|
over dimension
|
260*175*395mm
|
|
weight
|
40kg
|

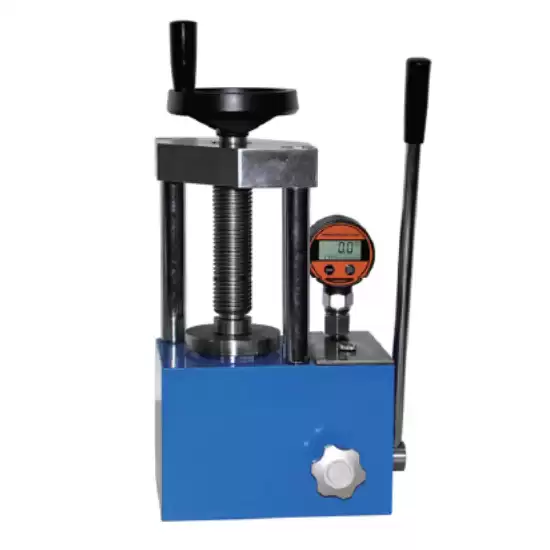

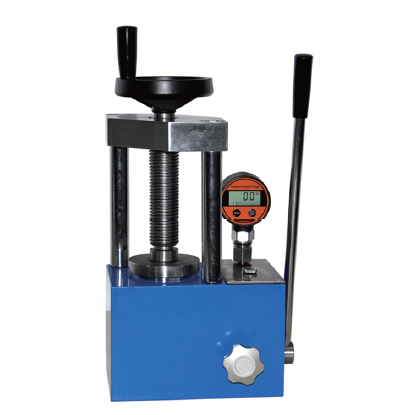

Product Images
Pressure conversion
|
Actual pressure
|
System pressure
|
Double display pressure gauge
|
|
1[Tons]
|
0.75[MPa]
|
|
|
3[Tons]
|
2.2[MPa]
|
|
5[Tons]
|
3.7[MPa]
|
|
10[Tons]
|
7.5[MPa]
|
|
12[Tons]
|
9[MPa]
|
|
15Tons]
|
11.3[MPa]
|
|
20[Tons]
|
15[MPa]
|
|
30[Tons]
|
22.5[MPa]
|
|
40[Tons]
|
30[MPa]
|
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
