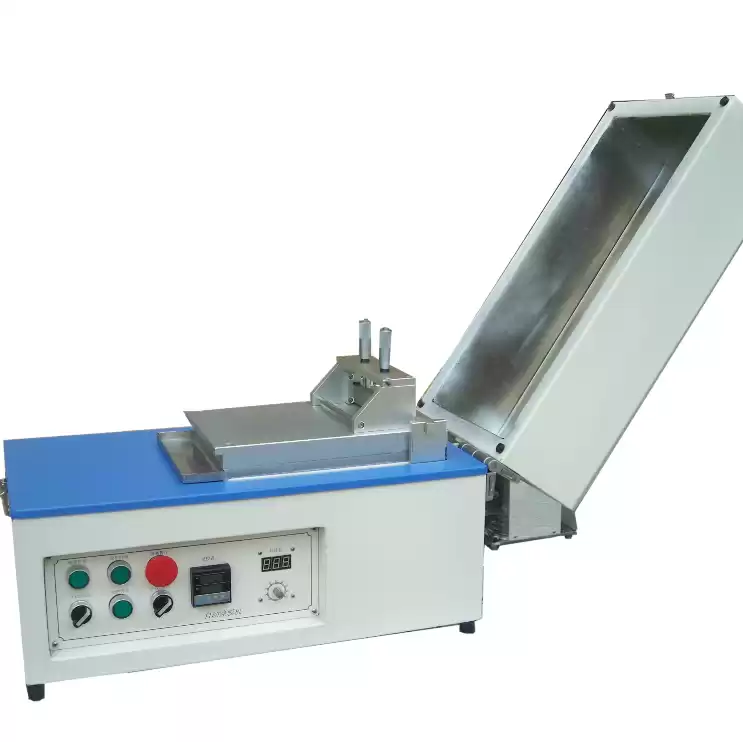

Lab 200C Max. Automatic Film Coating Machine With Dryer Cover And 140mm Doctor Blade

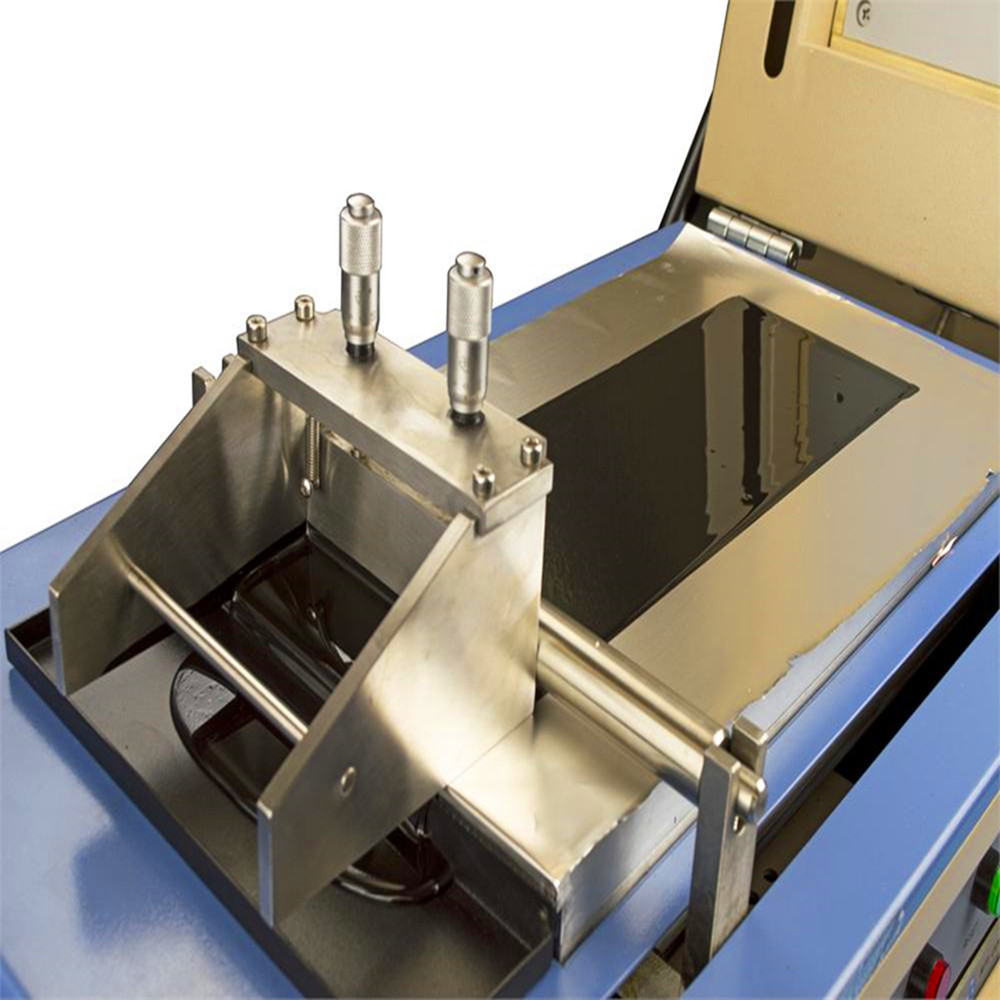

TMAX-TMH is a CE Certified ready compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin coatings. There is a 100 mm width adjustable micrometer applicator (doctor-blade).



Heating cover with digital temperature controller can dry films after coating up to 100°C with a temperature accuracy of +/-1°C. This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating. We are committed to providing high quality vacuum coating machine for you!



Specifications

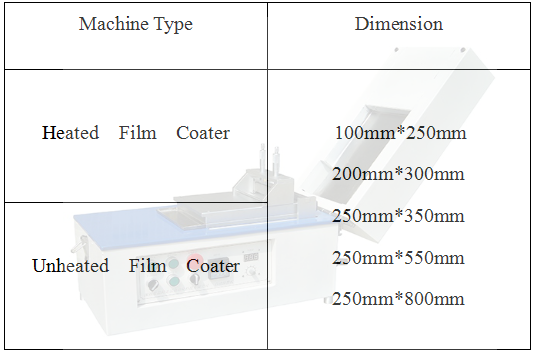

Model	TMH800-250	TMH250-100	TMH250-150	TMH300-250	TMH350-250	TMH550-250
Stroke Length	10 - 800 mm adjustable by using Adjustable Position Switch	10 - 250 mm adjustable by using Adjustable Position Switch	10 - 250 mm adjustable by using Adjustable Position Switch	10 - 300 mm adjustable by using Adjustable Position Switch	10 - 350 mm adjustable by using Adjustable Position Switch	10 - 550 mm adjustable by using Adjustable Position Switch
Platform	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 900mm(L) x 250mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) x 100mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 365mm(L) x 150mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 400mm(L) x 250mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 450mm(L) x 250mm(W)	Aluminum alloy flat vacuum chuck Vacuum Chuck Dimensions: 650mm(L) x 250mm(W)
Accessories: Film Applicator	Optional 50 upto 250 mm width micrometer adjustable film applicator is included
Optional Heating Cover Voltage and Power	110VAC or 220VAC
Traverse Speed	0 - 120 mm/sec variable Accuracy: 10mm/sec
Vacuum Pump	Vacuum pump is included
Heating Cover	1. Pre-installed on the top cover 2. Built in digital temperature controller with accuracy of +/-1°C 3. Suspension support helps open cover easily and safely 4. Max. Heating Temp: 200°C
Compliance	CE Certificate
Warranty	Two years limited warranty with lifetime support





1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
