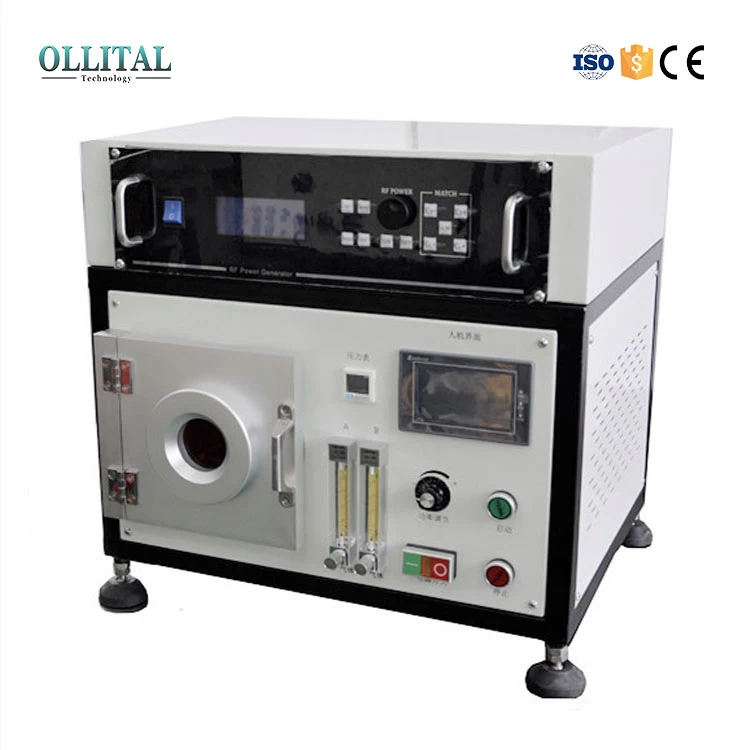

Lab Atmospheric Plasma Cleaner For Coating And Surface Treatment
|
Model
|
OLT-PS-5L
|
|
Power supply
|
AC220V
|
|
Working current
|
Total working current not higher than1.2A (Not include the vacuum pump)
|
|
RF frequency
|
≤200W
|
|
RF power
|
40KHZ(offset less than 0.2Hz)
|
|
Frequency offset
|
Less than 0.2KHz
|
|
Impedance matching
|
50 Ohm,Automatic matching
|
|
Cleaning capacity
|
5L
|
|
Vacuum degree
|
10Pa-1000Pa
|
|
Outside dimension
|
440*450*200mm
|
|
Gross weight
|
17.5Kg
|
|
Vacuum Pump
|
OLT-4C
|
|
Vacuum chamber temperature
|
<65ºC
|
|
Cooling type
|
Forced cooling
|
|
Accessories
|
host machine 1set, vacuum pump 1set vacuum high pressure pipe 1pc,O type card 4pcs,Fuse(0.2A,1.5A) each 3pcs, manual book
|
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.
