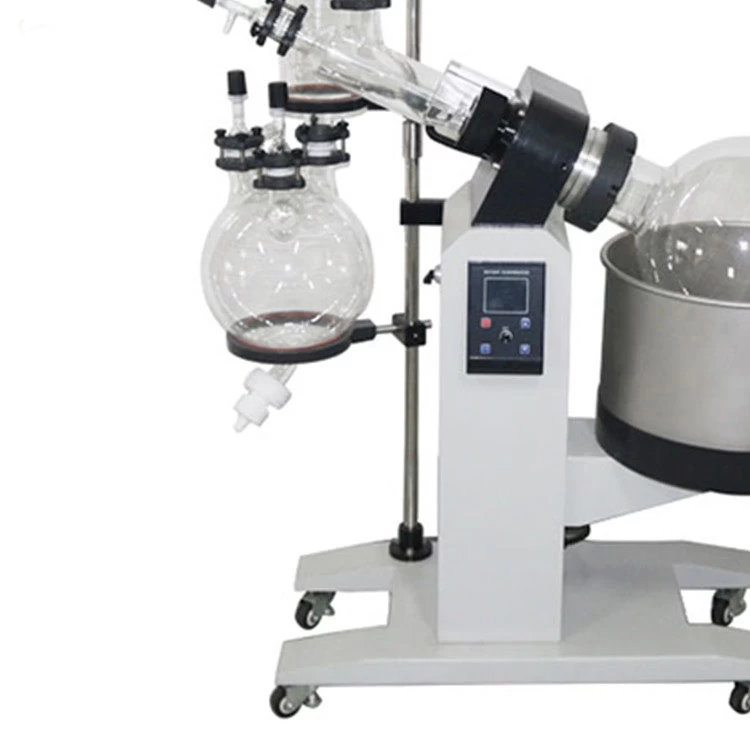

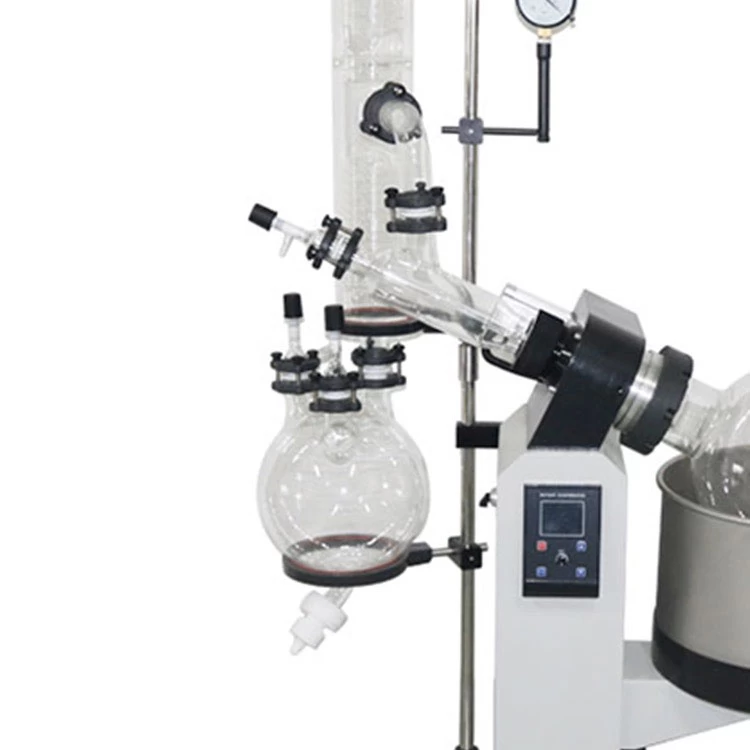

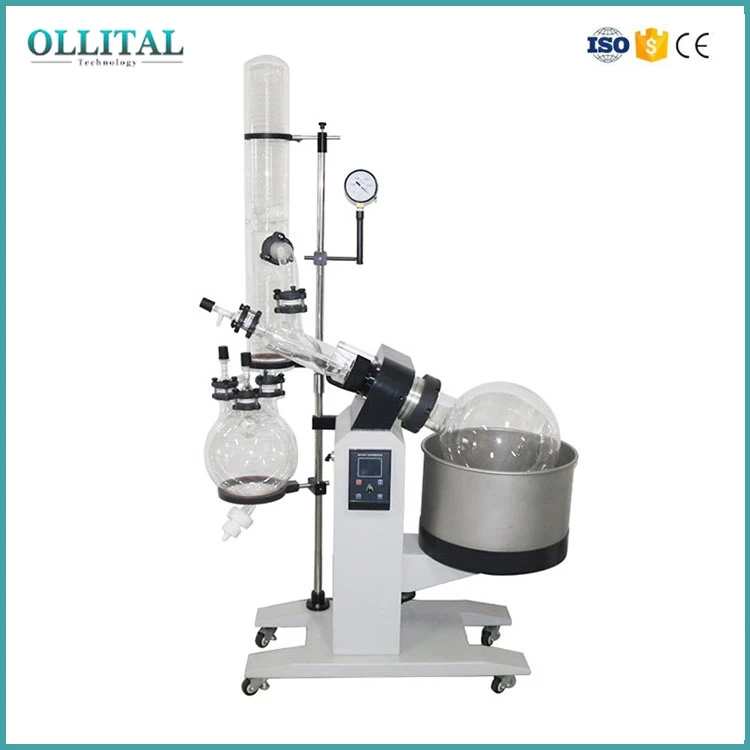

Rotary Evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries. The principle is: constant temperature heating under vacuum condition makes the rotating bottle rotate at constant speed, and the material forms large area film on the wall of the bottle and evaporates efficiently. The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.
|
Model
|
OLT-RE-3
|
OLT-RE-3
|
|
Speed regulation range(rpm)
|
20~100
|
20~100
|
|
Rotating bottle(L)
|
20
|
50
|
|
Collecting bottle(L)
|
10
|
20
|
|
Evaporation capacity(L/h)
|
Water 5.0 Ethanol 14.3
|
Water 9.0 Ethanol 24.5
|
|
Vacuum degree(mbar)
|
20mbar/h
|
|
Range of temperature regulation(℃)
|
Normal atmospheric temperature ~99
|
|
The precision of temperature control(℃)
|
±1
|
|
Temperature setting display
|
Key input Digital display
|
|
Speed setting display
|
Rotation setting Digital display
|
|
Security function
|
Over-current protection, grounding fault protection
|
|

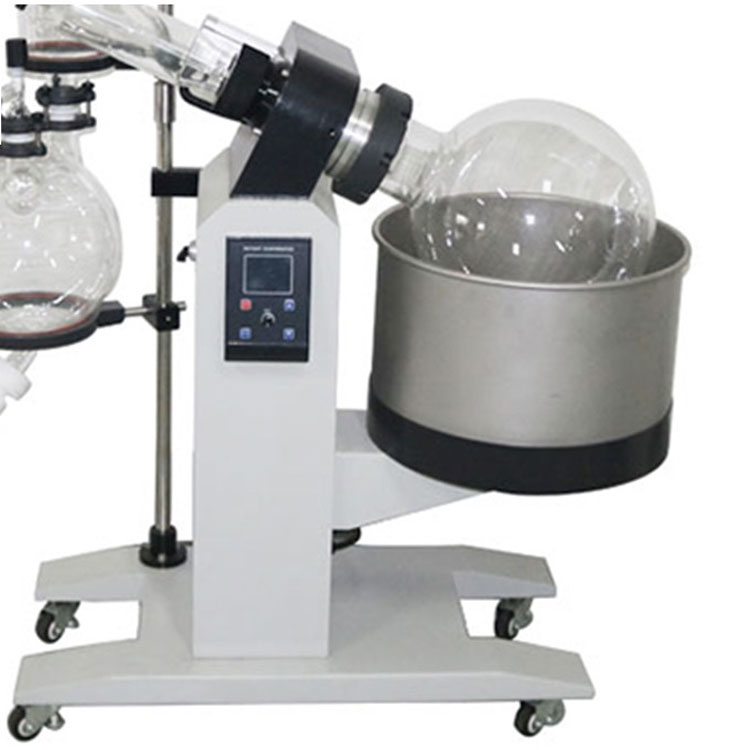

Lifting
|
Electric lifting of bath pot
|
|
Rotary motor(W)
|
120
|
180
|
|
Heating power(W)
|
3000
|
4500
|
|
Bath material
|
304 stainless steel
|
|

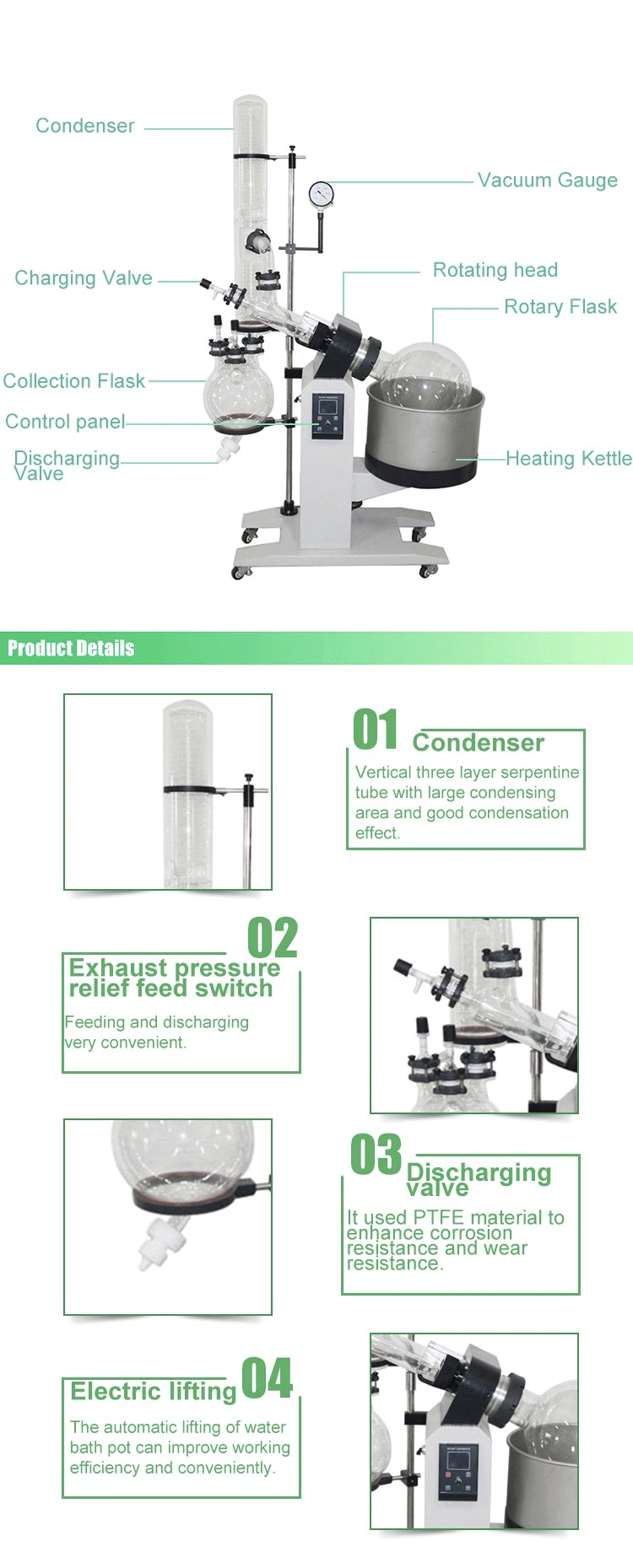

Condensing form
|
Vertical serpentine coil
|
|
Sealed form
|
PTFE main part+Composite materials+Fluorine O-rings
|
|
The height of the rise and fall(mm)
|
0-190
|
0-230
|
|
Ambient temperature used(℃)
|
5~35
|
|
Dimensions(L*W*H)(mm)
|
1200*600*2100
|
1350*770*2340
|
|
Voltage(V)
|
108-V240V/50Hz
|
108V-240V/50Hz
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
