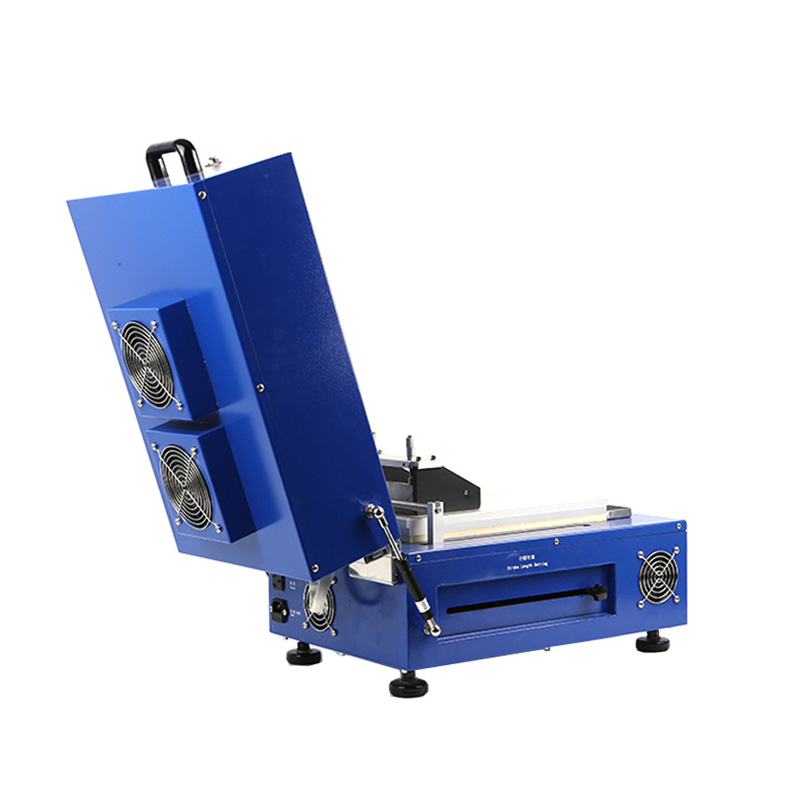

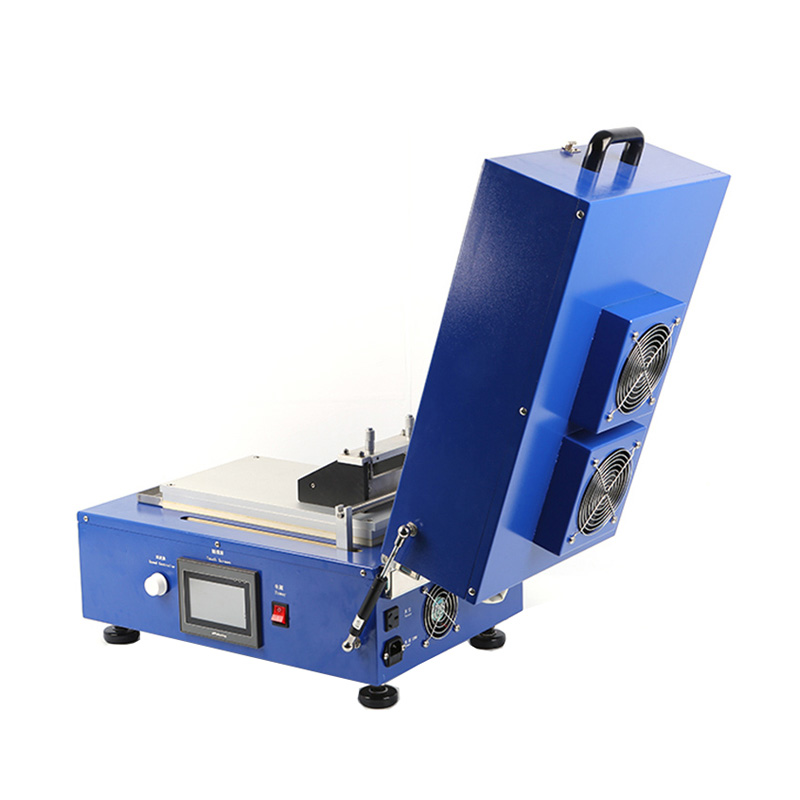

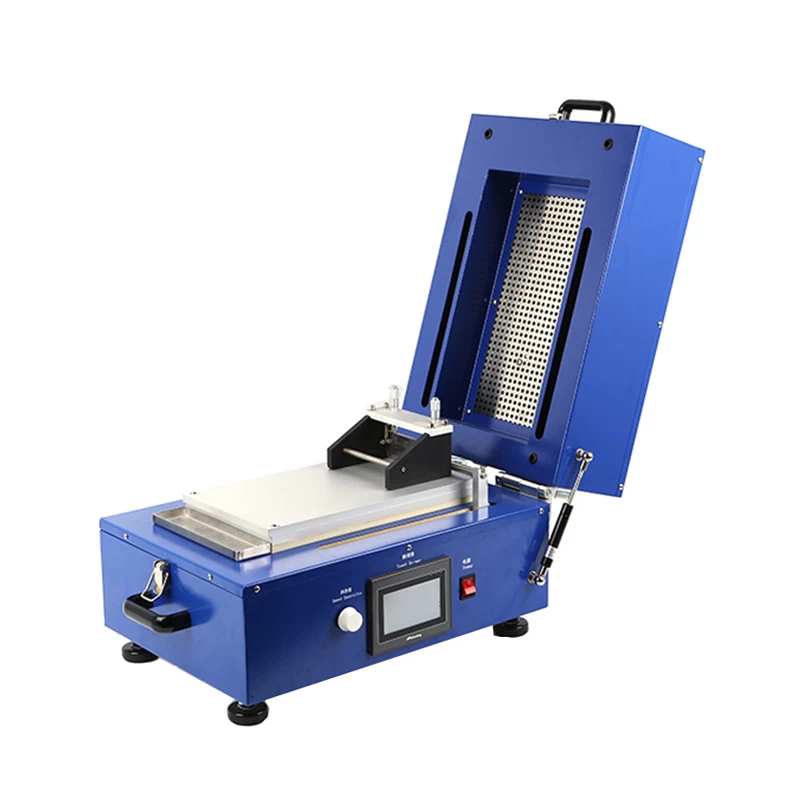

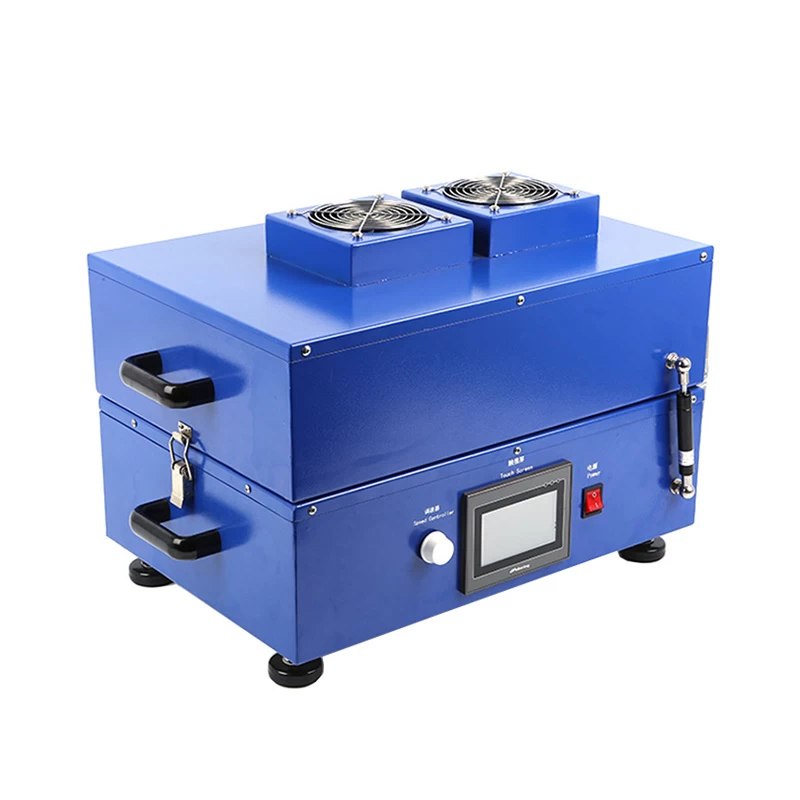

Lab Battery Slurry Vacuum Film Coating Machine with Dryer

Vacuum film coating machine is widely used in various high temperature coating process, such as ceramic film, crystal film, battery electrode, special nano film



Battery small vacuum coating machine with vacuum film and dryer


Discription:

BATTERY ELECTRODE COATER WITH DRYER is a touch-screen film coater which widely used in all kinds of high- temperature film coating research,like ceramic films, crystal films, battery material films, and special namo-films, and can adapt to the technology development of high temperature film coating in future.


Features:

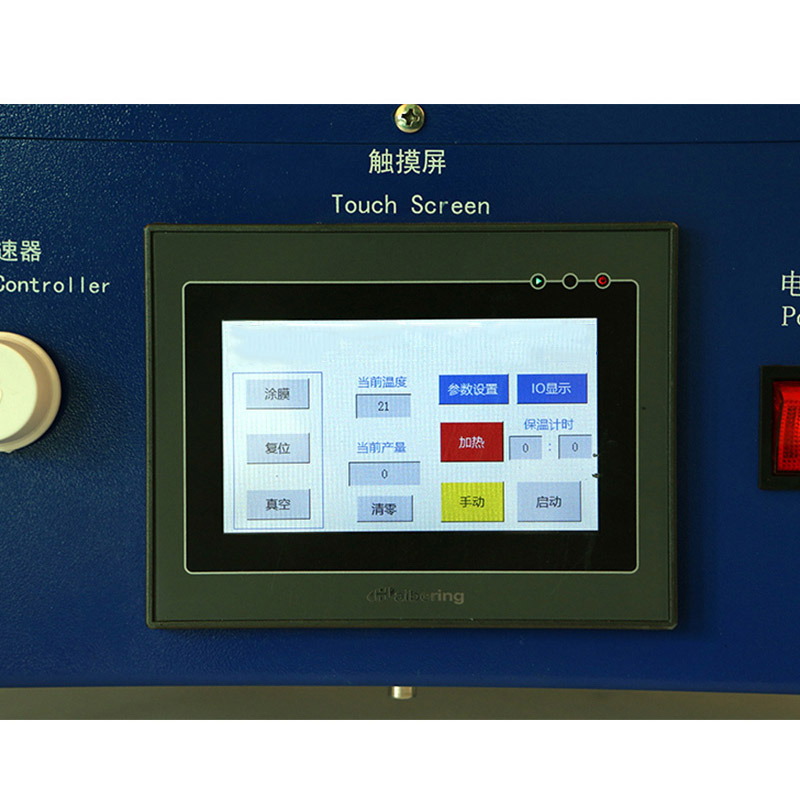

1. Touch-screen ,easy operation .
2. Temperature controlled heating system is digital displayed, max working temperature is 200℃.
3. Timer is digital displayed; the heating time can be set freely.
4. Coating speed can be regulated at a range of 0~200mm/s.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. Stroke can be regulated by touch screen at a range of 10~250mm.
7. Coating thickness can be regulated, the accuracy is 0.01mm.
8. Small dimension saves space.
9. Nice appearance, solid geometry design makes well- formed shape.


Application:

Battery lab

Battery research

Lithium ion battery lab

Battery material research

Trial-production


Item Name

Automatic Film Coating Machine with Cover Heater

Model

AOT-FCM-250

Max Stroke

250mm

Vacuum plate

Equipped with vacuum aluminum plate

Coating Speed

0~100mm/s

Dimension of vacuum plate

L410mm×W200mm×H30mm

Regulating range of scrapper

0.01~3.5mm

Film width

100mm

Heating temperature

Room temperature ~ 200℃

Digital displayed thermostat, the accuracy is±1℃

Power supply

220V/50Hz

Weight

45KG

Dimension

L800mm×W310mm×H330mm

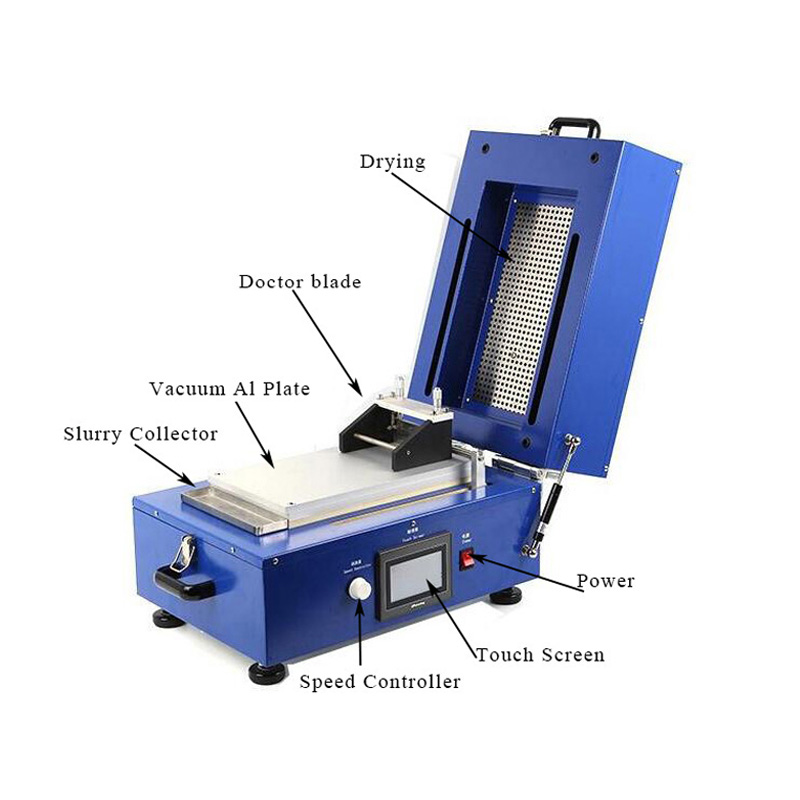

Standard Configurations

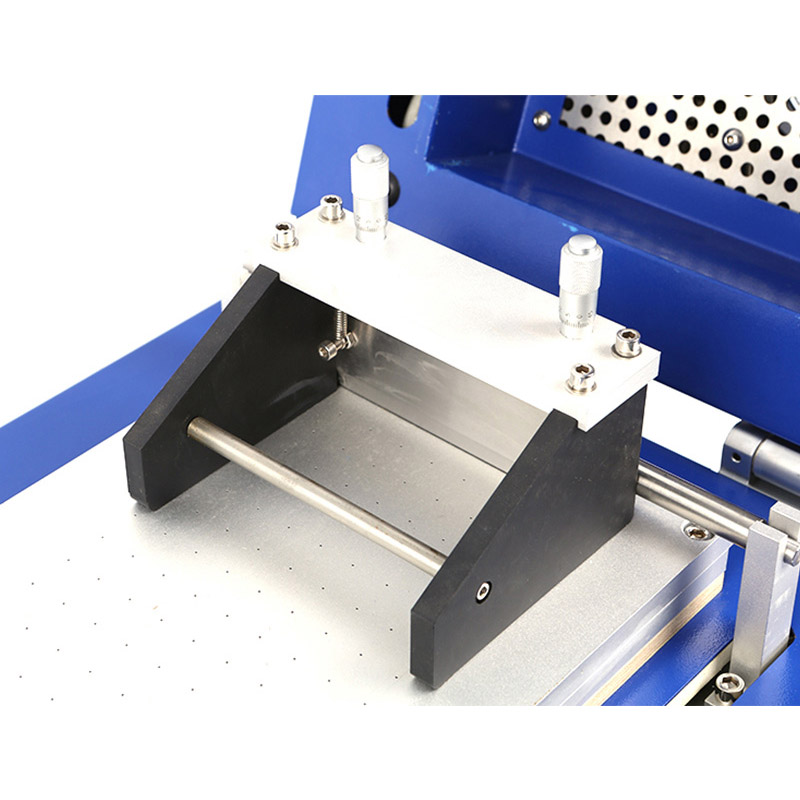

*Film applicator / Doctor Blade

*no-oil vacuum pump

*horizontal rod

*feeding box

Vacuum Film Coating Machine with Dryer

Film Coating Device for Lab Lithium ion Battery Research

Film Coater battery coating machine

battery electrode film coating machine
