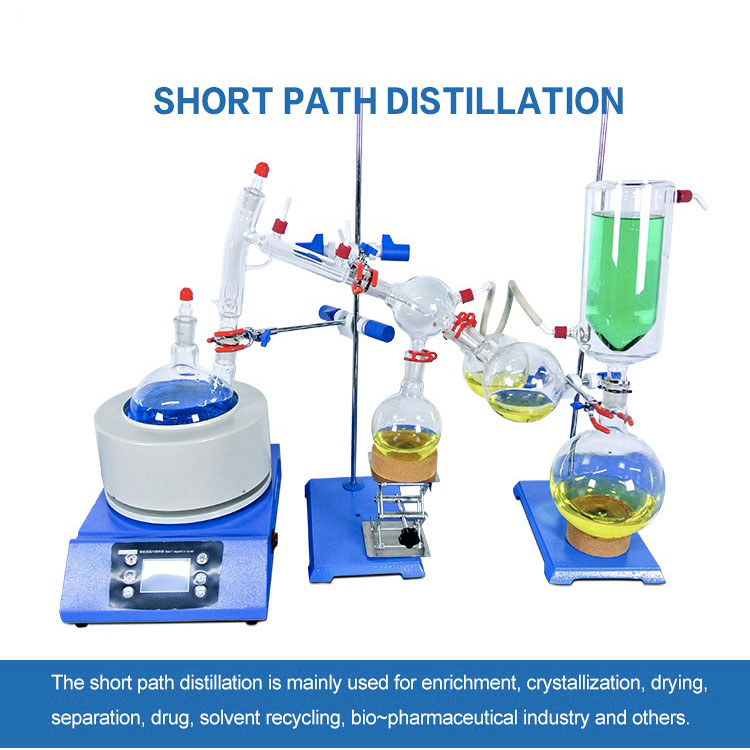

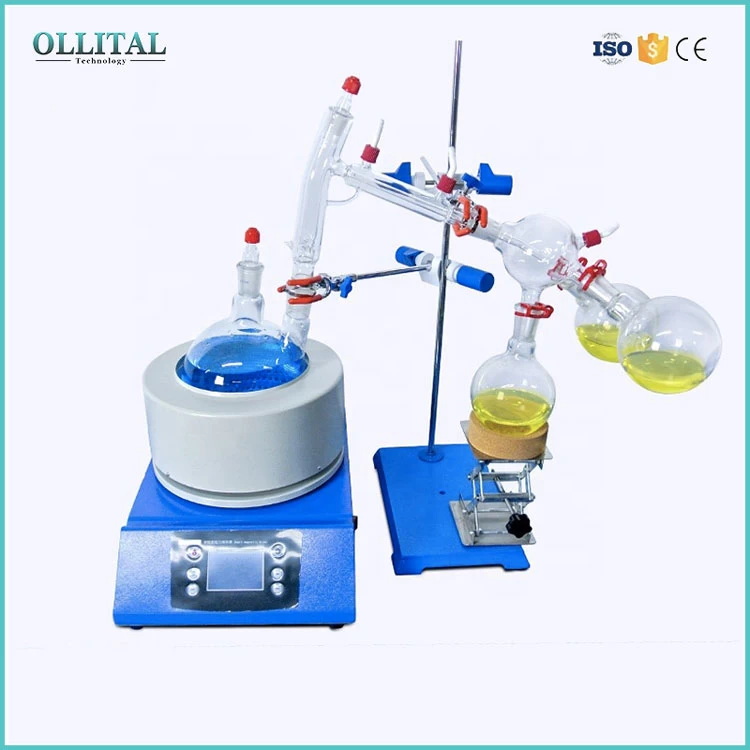

Lab Chemicals Short Path Fractional Distillation Kit
The Laboratory Chemicals Short Path Distillation(Standard) from Lab Society is an economical bench top-scale short path distillation kit, specifically assembled to compete with low-budget market options. When trying to separate compounds having a complete turn-key system which includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease is of importance. The unit has a built in PID controller for control over such things as temperature setting and a knob for spin control, which allows adjustment over the spin vane in the system.
|

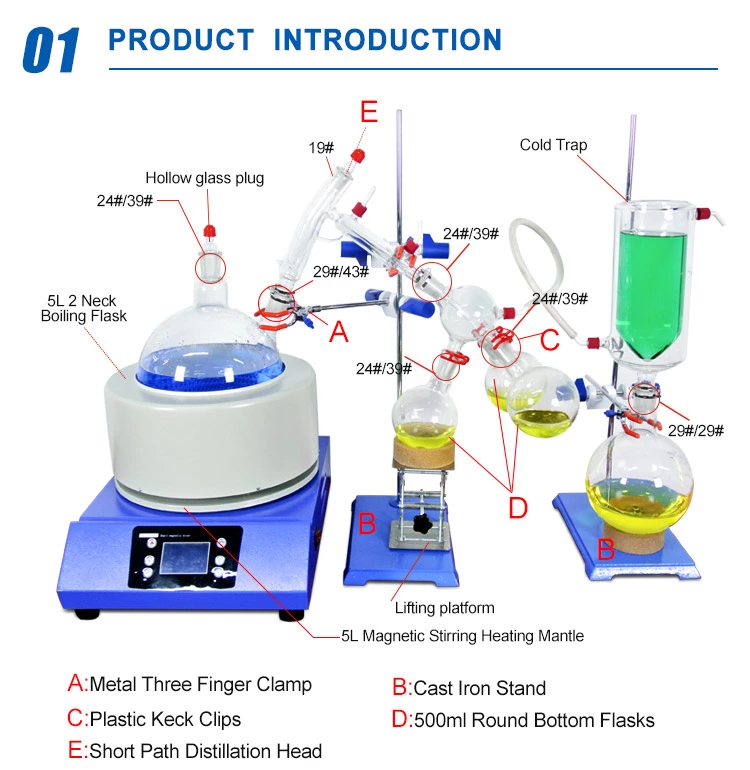

Model
|
Parts name
|
Parts number
|
|
OLT-SP-5L
|
5000 ml Digital Heating Mantle
|
1
|
|
5000 ml 2 Neck Boiling Flask
|
1
|
|

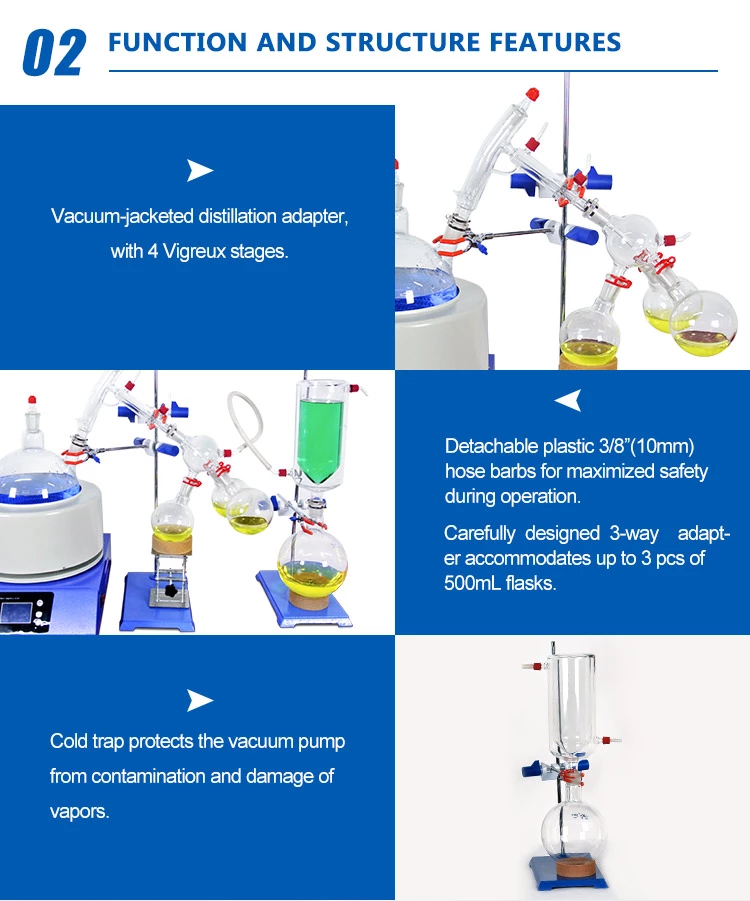

Short Path Distillation Head
|
1
|
|
Cow Receiver
|
1
|
|
500 ml Round Bottom Flasks
|
3
|
|
Plastic Keck Clips
|
7
|
|
Cast Iron Stand
|
2
|
|
Metal Three Finger Clamp
|
1
|
|
Cold trap
|
1
|
|
PTFE magnetic stirring bar
|
1
|
|
Lifting platform
|
1
|
|
backing ring
|
1
|
Working Principle:
The pressure difference between the boiling film and the condensation surface is the driving force of the steam flow, and the small pressure drop can cause the steam to flow. Operating under 1mbar requires a very short distance between the boiling surface and the condensation surface, and the distillation based on this principle is called a short-range distillation. Short-range distillation (molecular distillation) a built-in condenser is opposite the heating surface and the operating pressure is reduced to 0.001mbar.

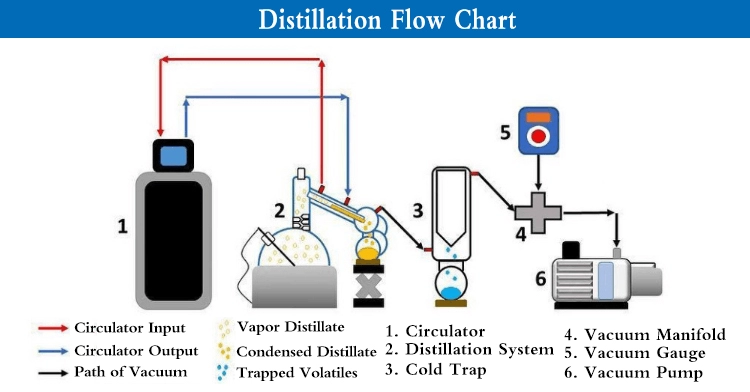

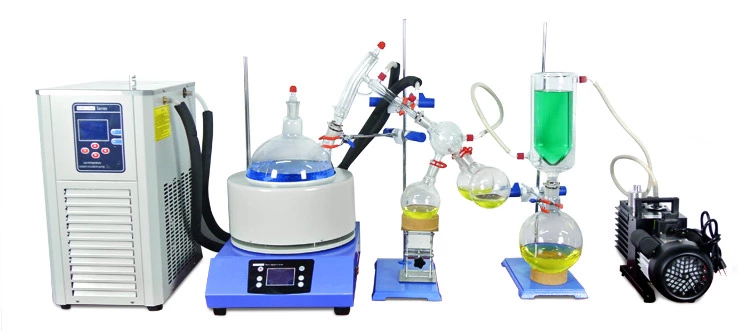

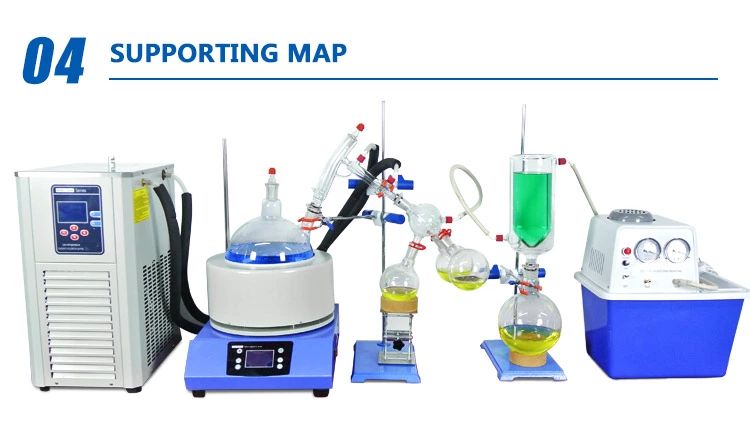

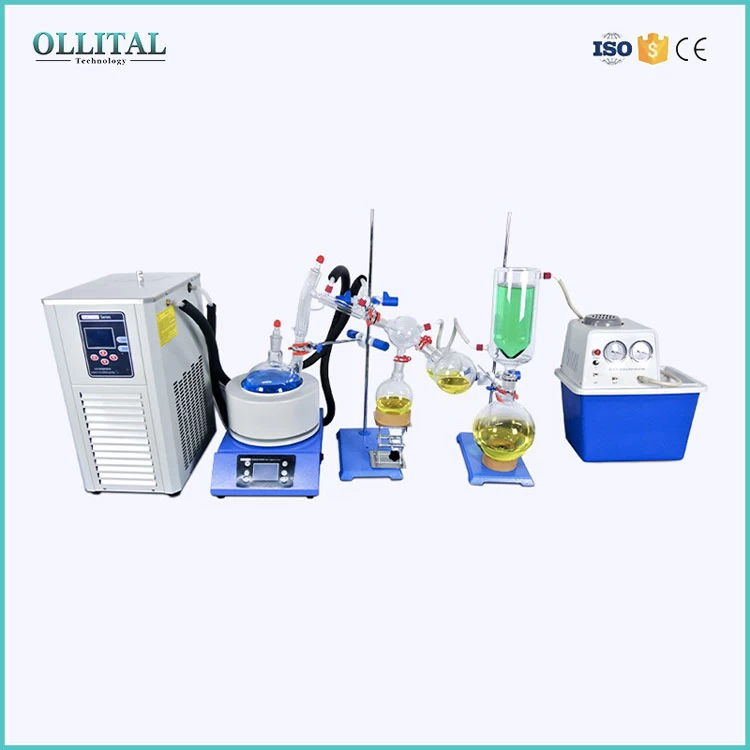

Ancillary equipment:

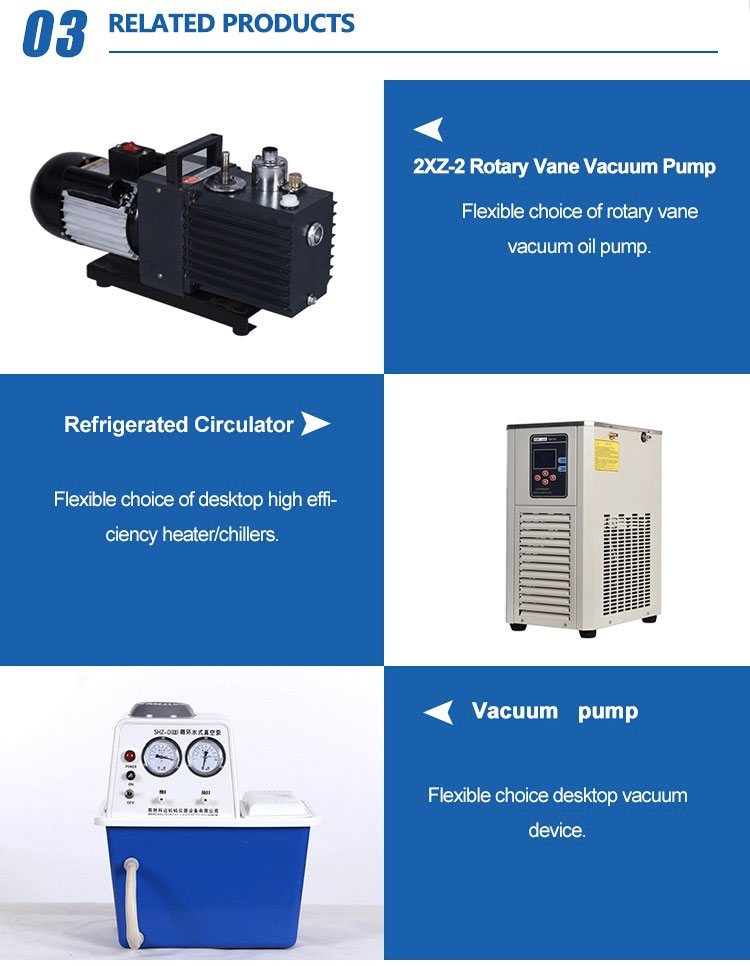

Rotary Vane Vacuum pump: Used to provide a vacuum source.
Cooling chiller: For condensation and reducing waste of materials.
