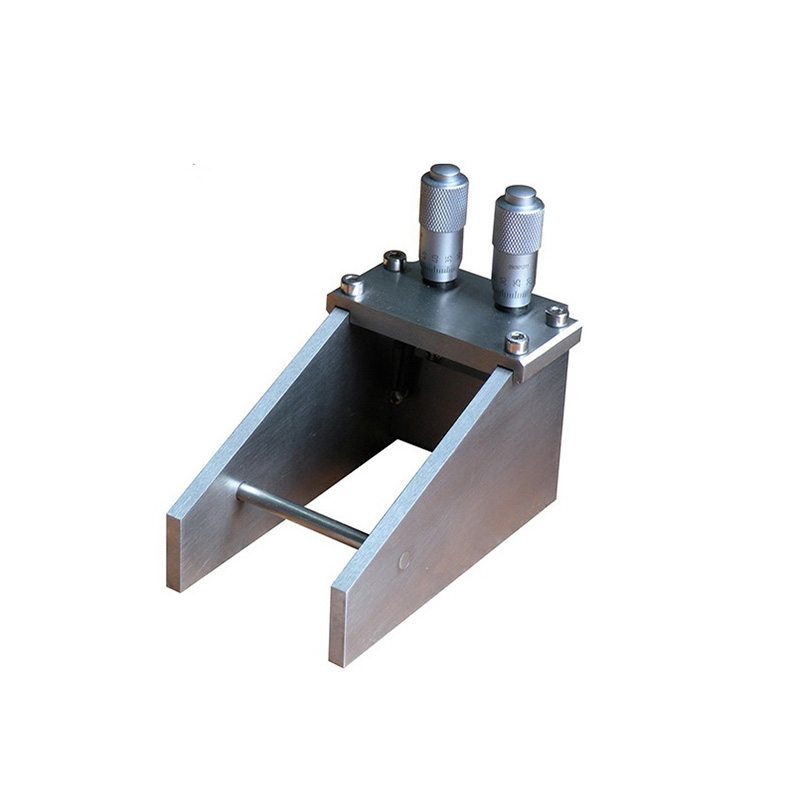

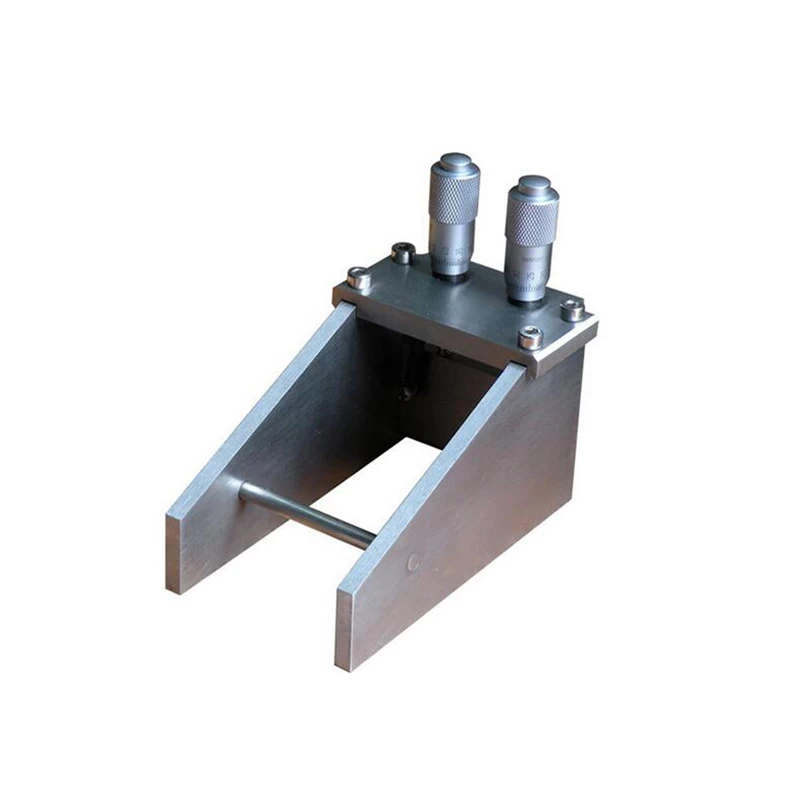

Lab Coating Device Stainless Steel Film Applicator with Micrometer Head

Adjustable stainless steel film applicator is a small lab coating device with 50mm coating width- This unique wet film applicator features micrometer heads for knife blade adjustment.



50mm Width Stainless Steel Film Applicator Doctor Blade for Lab Coating Device

The AOT-KTQ-50 Adjustable Film Applicator is a small lab coating device with 50mm coating width- This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Specifications:

Model

Film Applicator / Doctor Blade AOT-KTQ-50

Standard width

50mm

Wet film coating thickness

0 - 6000 microns

Micrometer head's controllable accuracy

10 um

Material

304 stainless steel

Application

Lab film coting

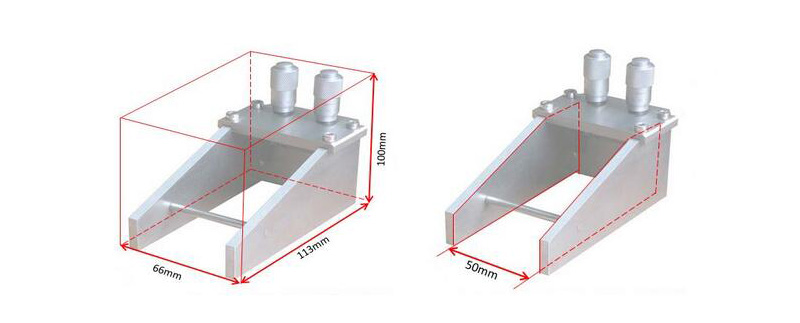

50mm Micrometer Adjustable Film-Applicator

50mm lab Coating Device Film Applicator
