Roll to Roll Lab Coating Machine For Battery Electrode (Max. 180mm Width) with Drying Oven
SPECIFICATIONS
1 TOB-TBJ-200 Lab coating machine is a compact Roll to Roll continuous coater for battery electrode sheets with a small size for battery research labs.
2This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically.
3This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.
4The Lab coating machine is with four Direction wheel in bottom, it can be removed easily for laboratory use.
|
Model
|
Lab coating machine TOB-TBJ-200
|
|
Source voltage
|
AC 110v/220v, 50HZ/60HZ
|
|
Power
|
3000W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Coating mode
|
Continuous coating
|
|
Max coating width
|
180mm
|
|
Applicable matrix thickness
|
Aluminum foil : 11-30um
Copper foil : 8-30um
|
|
Mechanical tape speed
|
≤5m/min, with accuracy ±0.1m/min
|
|
Coating speed
|
0-750 mm / minute, adjustable
|
|
Coating thickness
|
30-200um
|
|
Applicable slurry viscosity
|
1500-15000cps
|
|
Coating roller accuracy
|
≤1um
|
|
Coating accuracy
|
Double dry thickness accuracy error : <±4um
Single side dry thickness accuracy error : <±2um
Double coated alignment error : <±0.5mm
Average length of error : <±0.5mm
|
|
Roller inner diameter
|
3inches
|
|
Tension control
|
Low friction tension system
|
|
Struggle to control precision
|
<±0.3mm
|
|
Oven temperature
|
120°C adjustable, with accuracy ±1°C,
Independent PID adjustable
|
|
Oven Length
|
800mm
|
|
Weight
|
450kg
|
|
Dimension(L*W*H)
|
900*800*900mm
|

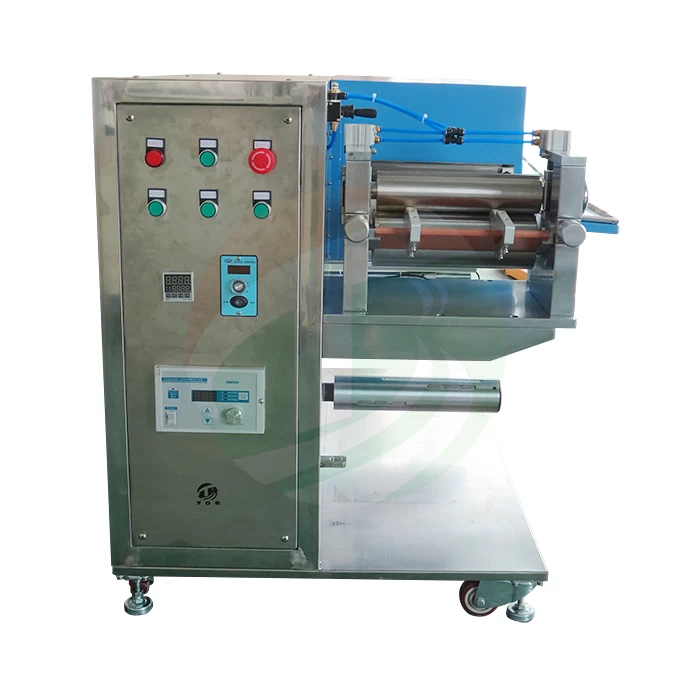

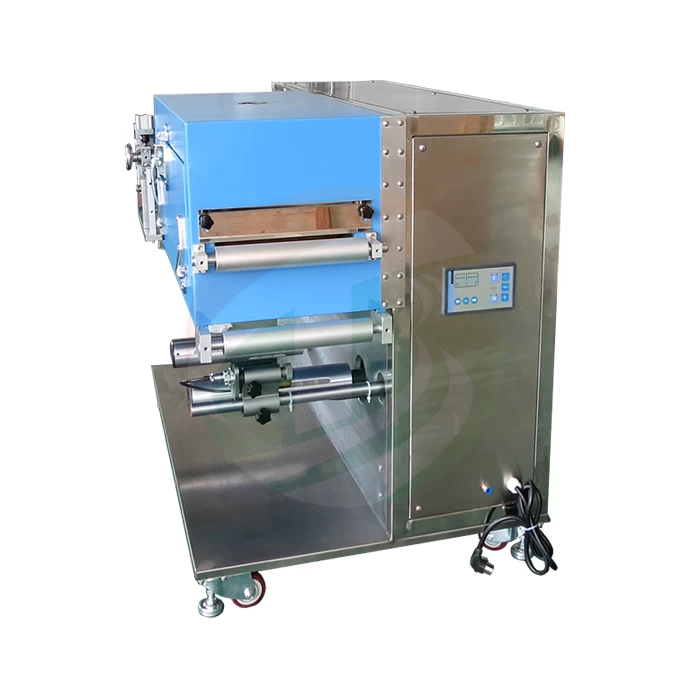

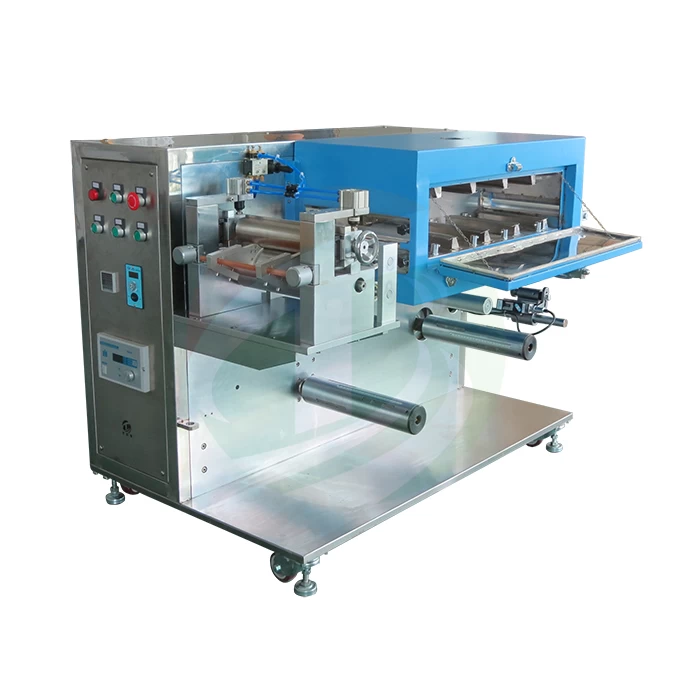

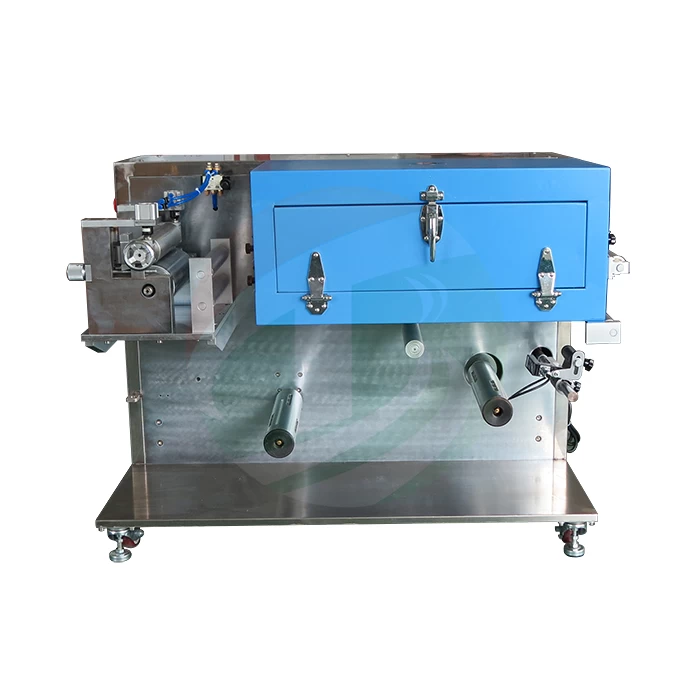

PRODUCT DISPLAY
PACKAGE AND SHIPPING
|
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
|
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
