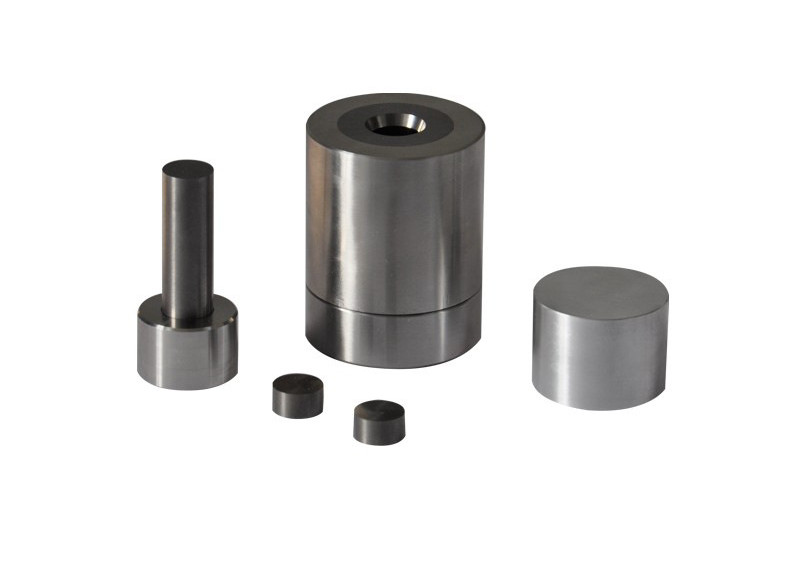

Lab Cylindrical Cemented Carbide Mold
Cemented carbide molds are also called tungsten steel molds and tungsten carbide molds. Cemented carbide is an alloy material made of hard compounds of refractory metals and bonding metals through powder metallurgy. Cemented carbide has high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and other properties, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 ℃. It still has a high hardness at ℃ and is known as "industrial teeth". It is used to manufacture cutting tools, knives, cobalt tools and wear-resistant parts, etc., and is widely used.
Specifications
|
Name
|
Cemented carbide mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Round slices, cylinders, etc.
|
|
Common mold specifications
|
Φ3、Φ5、Φ6、Φ8、Φ10、Φ13、Φ15、Φ18、Φ20、Φ22、Φ25、Φ30mm
|
|
Mold material
|
Cemented carbide: YT15
|
|
Hardness of die indenter
|
HRC85-HRC90
|
|
Sample size (≤)
|
Ф3-Ф13mm
|
Ф12-Ф20mm
|
Ф22Ф30mm
|
Ф31-Ф40mm
|
|
Mold cavity depth
|
30mm
|
40mm
|
45mm
|
--
|
|
Mould dimensions
|
Ф43×93mm
|
Ф53×120mm
|
Ф73×133mm
|
--
|
|
Mould weight
|
0.78KG
|
1.8KG
|
3.8KG
|
14kg
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

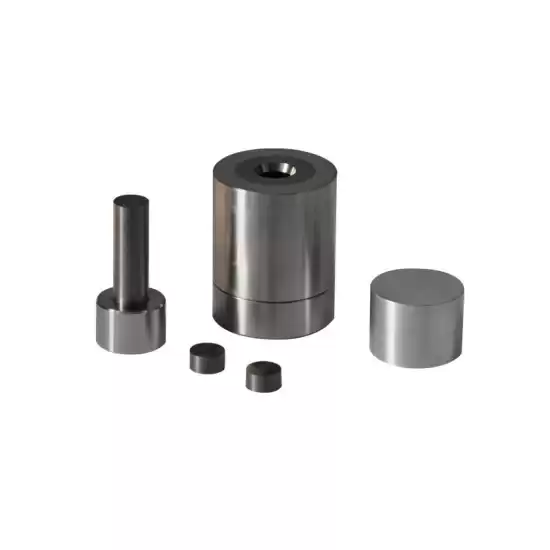

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
