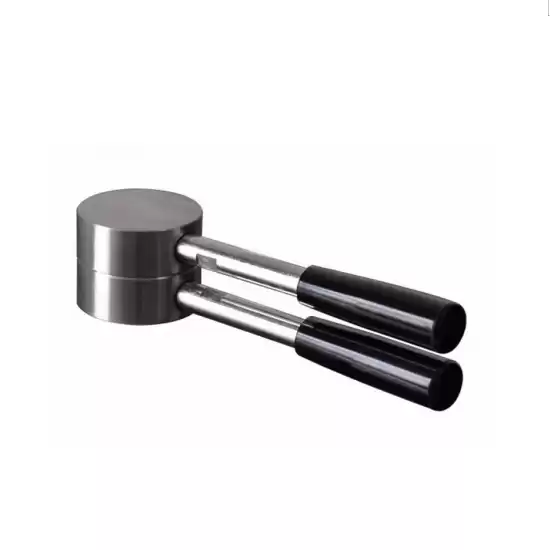

Lab Cylindrical Quantitative Flat Mold With Handle
Cylindrical quantitative flat mold is mainly used for sample preparation of nylon, plastic, PE and other materials. It is used with infrared spectrometer as a tableting accessory for material quantitative analysis. The tablet diameter is Ф20mm and the thickness is 0.2-1mm. It can also be matched with our hot press Used for heating test of samples. Special mold size, specification, shape, material, etc. can be customized according to customer needs
Specifications
|
Name
|
Quantitative flat mold
|
|
Actual drawing of molding sample
|
|
|
Compressible sample shape
|
Cylindrical, circular slice, cylinder, etc.
|
|
Common sample size
|
Generally <Ф20mm, Ф6, Ф8, Ф10, Ф12, Ф13, Ф15, Ф18, Ф20mm, etc.
|
|
Mold material
|
Alloy tool steel:Cr12MoV
|
|
Sample thickness
|
0.1mm, 0.2mm, 0.5mm, 1mm
|
|
Mould dimensions
|
Ф200×60mm
|
|
Mould weight
|
3.2g
|
|
Calculation formula of die pressure
|
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
|
|
Mould remarks
|
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
|

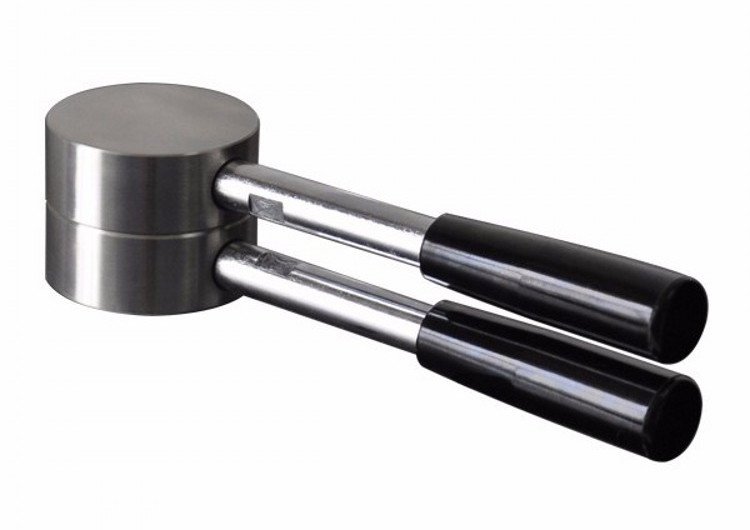

Product Images
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
