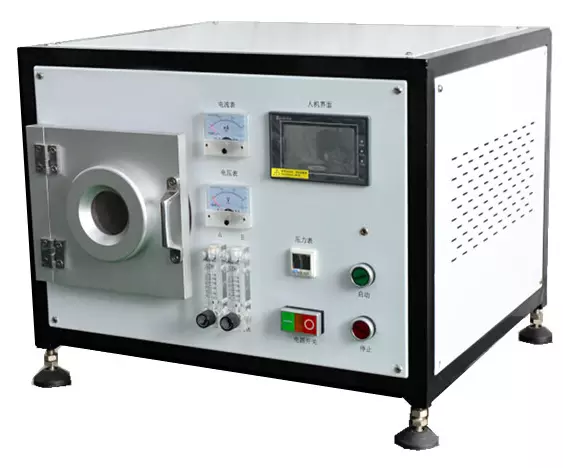

5L vacuum Plasma Cleaner divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.
|
Model No.
|
OLT-PS-5L
|
|
Product Name
|
Plasma Cleaner
|
|
Display
|
LCD touch controller
|
|
Working voltage
|
AC 108V-240V, 50Hz
|
|
RF Frequency
|
13.56MHz (40KHz for optional)
|
|
Coupled mode
|
condenser coupling, without pollute sample
|
|
RF power
|
300 w
|
|
RF offset
|
< 0.2KHz
|
|
Characteristic impedance
|
50Ω, automatic matching
|
|
Vacuum degree
|
10-100Pa, equipped with a mechanical pump
|
|
Gas speed
|
Two way Float Flow Gas Control
10-100ml/min, adjustable
|
|
Control
|
PLC Touch Panel Program control
|
|
Inner chamber size
|
Quartz Chamber Dimension Φ 200*270mm
Capacity: 5L
|
|
Pressure Gauge
|
A simple digital pressure gauge is equipped for reading
|
|
Cooling way
|
Forced cooling
|
|
Outer dimension
|
440*390*200mm
|
|
Gross weight
|
35 kg
|
Our plasma cleaner have two type: 40KHz and13.56Mhz, and 2.45GHz RF Power for optional. Our standard chamber capacity has 2L, 5L,10L which used in laboratory. Basing on different industry, we can do customized chamber dimension with requested RF power.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
