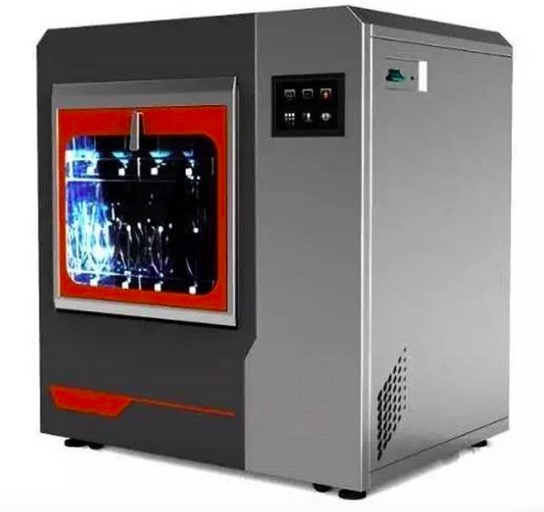

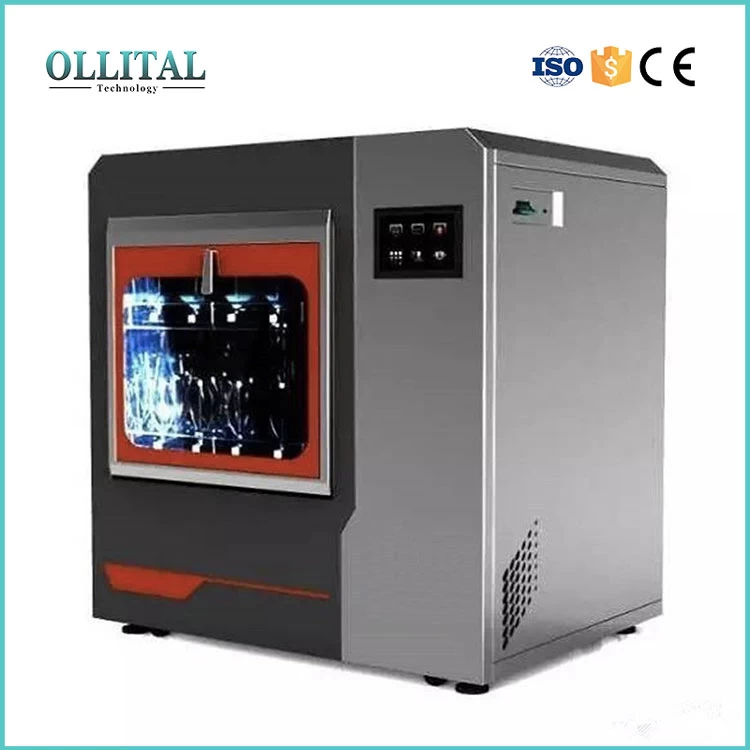

The lab glassware cleaning machine is mainly made of cleaning frame, cleaning system, flushing system and control circuit, etc. It can be connected to cool water, heat water, and deionizedwater to clean, disinfect and dry all kinds of lab glassware.
|
Model
|
OLT-LW120
|
OLT-LW220
|
OLT-LW320
|
OLT-LW420
|
|
Capacity
|
120L
|
220L
|
320L
|
420L
|
|
Water Consumption/Cycle
|
15L
|
25L
|
|
Inlet Water Pressure
|
0.3~1.0Mpa
|
|
Noise
|
<50dB
|
<55dB
|
|
Material
|
Stainless steel
|
|
Overall Power Consumption
|
6KW
|
6.5/16.5KW
|
6.5/18KW
|
18kW
|
|
Power Consumption-Water Washing
|
0.75KW
|
1.5 KW
|
2.8KW
|
|
Power Consumption-Water Heating
|
5KW
|
5/15KW
|
15KW
|
|
Power Consumption-Drying
|
2.1 KW
|
3.6KW
|
|
Power Supply
|
AC108V-220V, 50Hz
|
AC108V-220V, 50Hz; 380V, 50Hz
|
380V, 50Hz
|
|
Cleaning Racks
|
1 pcs
|
2 pcs
|
3 pcs
|
2 pcs
|
|
Standard Accessories
|
One bucket RBS A 150 leaner (1 L), One bucket RBS A 375 neutralizer (1 L)
|
|
Optional Accessories
|
USB interface, printer, Cleaning racks
|
|
External Size(W*D*H)mm
|
960*740*850
|
780*690*1760
|
790*690*1950
|
1100*900*2165
|
|
Package Size(W*D*H)mm
|
1100*950*1050
|
1000*850*2100
|
1000*840*2180
|
1270*1025*2240
|
|
Gross Weight(kg)
|
145
|
330
|
350
|
400
|
* USB interface and printer are optional;
* Price above includes standard volume of detergent and neutralizer

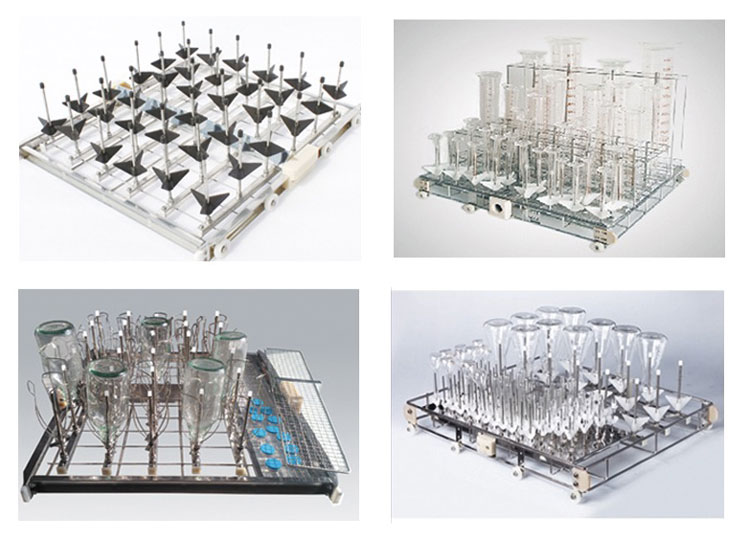

* Washer racks are sold separately and can be customized;

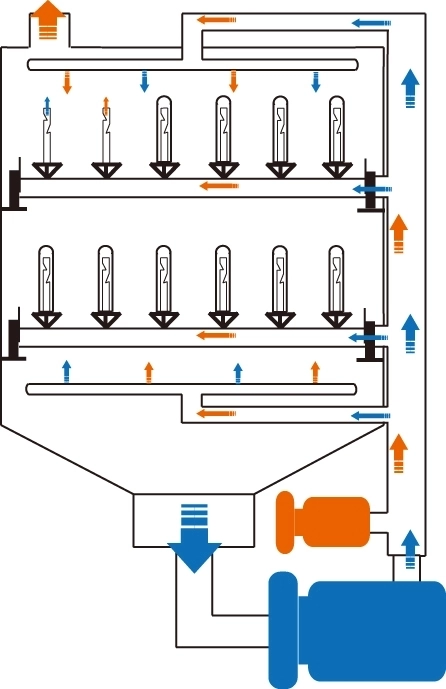

* High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
* Rapid and efficient drying system, designed with independent air heater, HEPA filter and thorough drying process;
* Water heating temperature can be reached 99C, while hot air drying temperature can be reached 120C;
* Professional configuration design—stainless steel for corrosion resistence; two inlets for both tap water and pure water and one outlet in antibackflow design; reinforced glass window mounted to achieve a clear view on washing process;

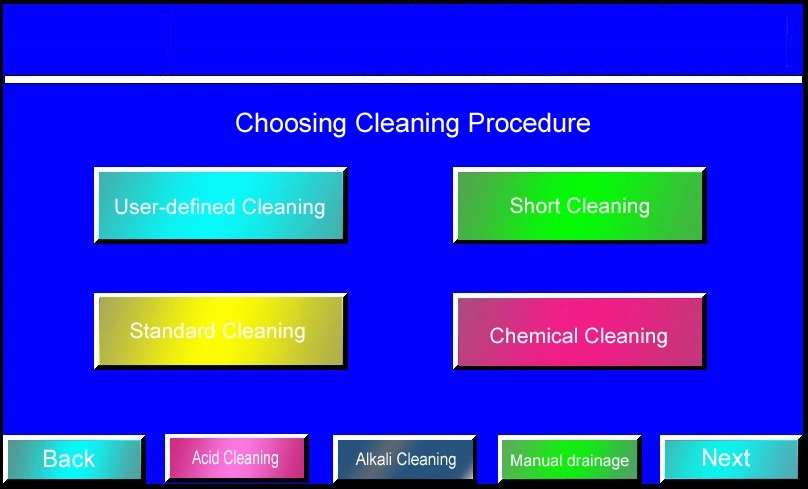

* Excellent control system—PLC touch screen control with preset 6 programs(including one customized program) to monitor all the operation processes;
* Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch;
