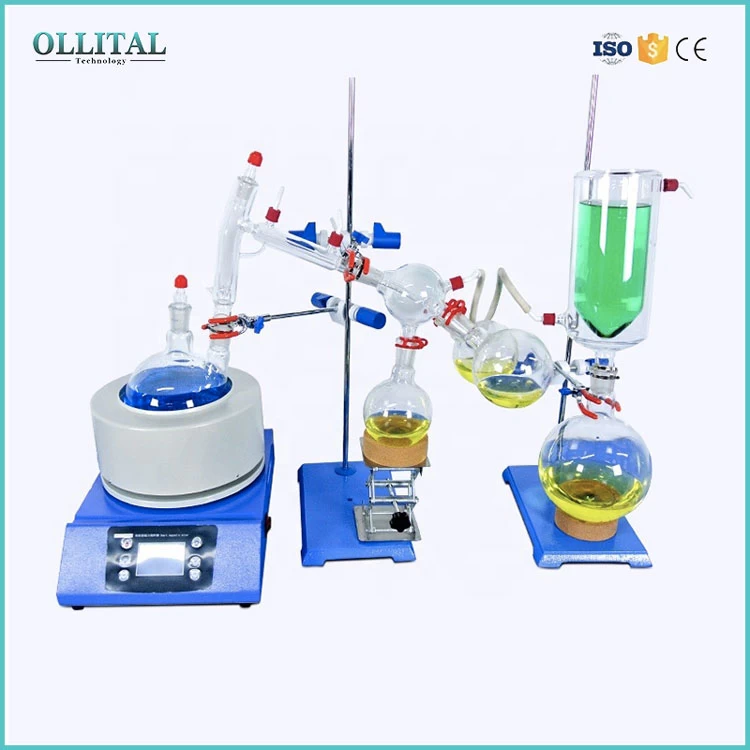

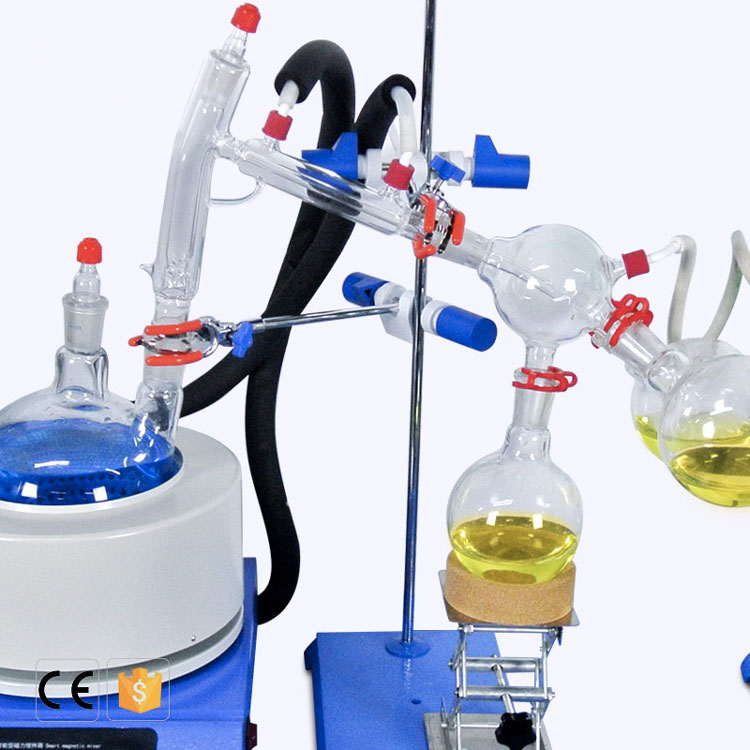

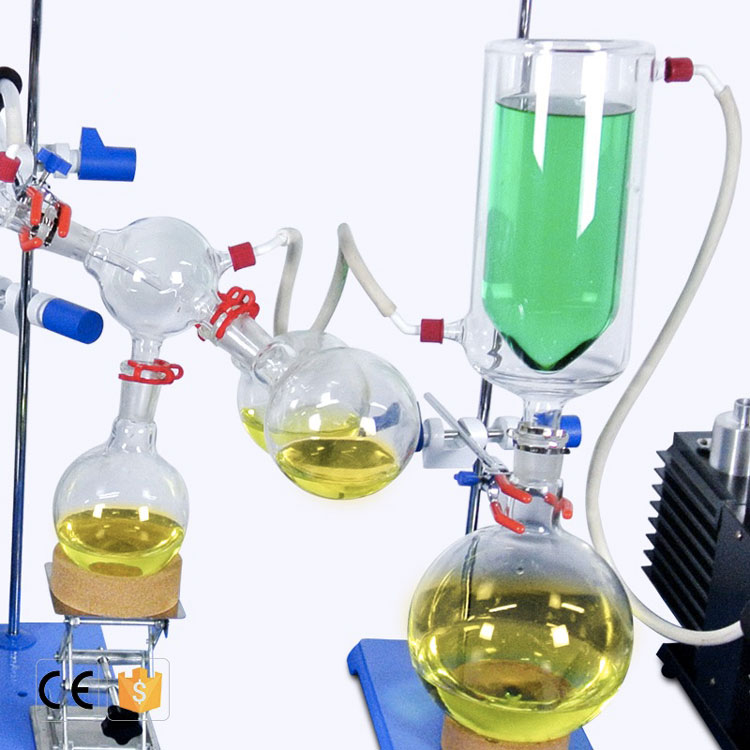

Lab Digital Display 5L Short Path Distillation
|
Model
|
Parts name
|
Parts number
|
|
OLT-SP-5L
|
5000 ml Digital Heating Mantle
|
1
|
|
5000 ml 2 Neck Boiling Flask
|
1
|
|
Short Path Distillation Head
|
1
|
|
Cow Receiver
|
1
|
|
500 ml Round Bottom Flasks
|
3
|
|
Plastic Keck Clips
|
7
|
|
Cast Iron Stand
|
1
|
|
Metal Three Finger Clamp
|
1
|

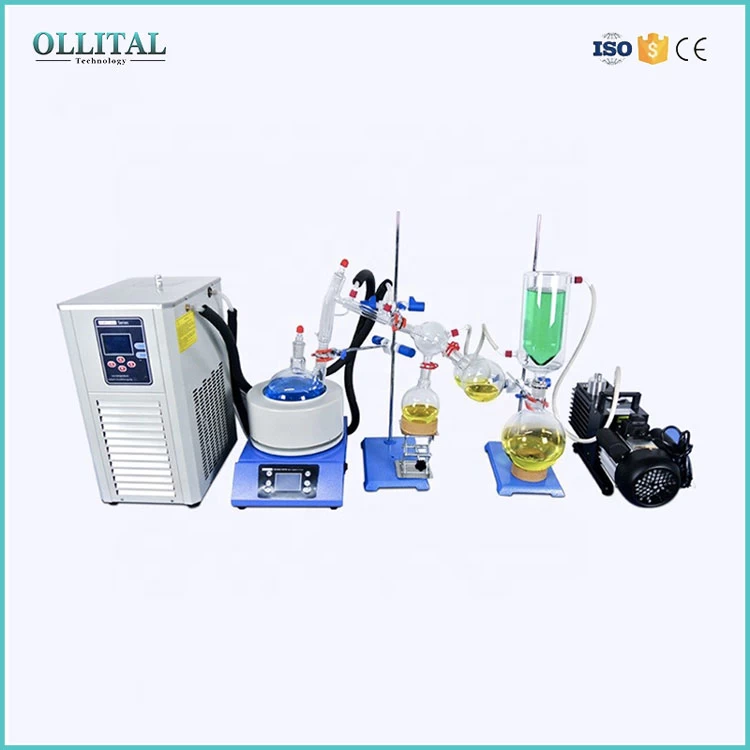

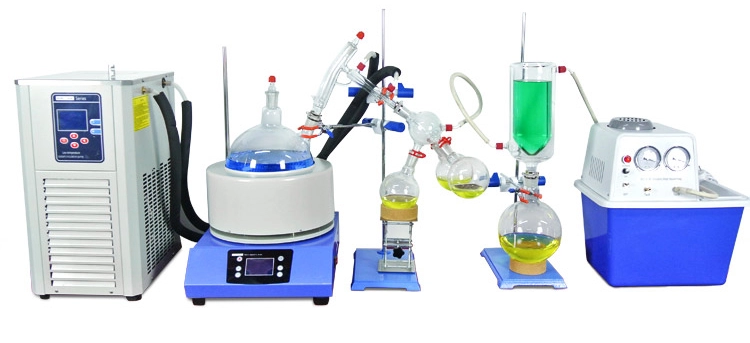

4 Related Product
Refrigerator circulator: for condensation and reducing waste of materials
2Xz Rotary vacuum pump: provide vacuum source
Magnetic Heating mantle : for energy saving heating
Intelligent digital display short ptah distillation for pre setting temperature(pv) and actual setting temperature(av).Refrigerator circulator: for condensation and reducing waste of materials2Xz Rotary vacuum pump:provide vacuum source Magnetic Heating mantle : for energy saving heating
1 What are laboratory short path distillation ?
Short-path distillation is a distillation technique that involves the distillate travelling a short distance, often only a few centimeters, and is normally done at reduced pressure. A classic example would be a distillation involving the distillate travelling from one glass bulb to another, without the need for a condenser separating the two chambers. This technique is often used for compounds which are unstable at high temperatures or to purify small amounts of compound. The advantage is that the heating temperature can be considerably lower (at reduced pressure) than the boiling point of the liquid at standard pressure, and the distillate only has to travel a short distance before condensing. A short path ensures that little compound is lost on the sides of the apparatus.
2 What are short path distillation used for ?
Laboratory vacuum distillation plants are used in R&D Labs, in pilot applications, and for full-scale industrial mass production
