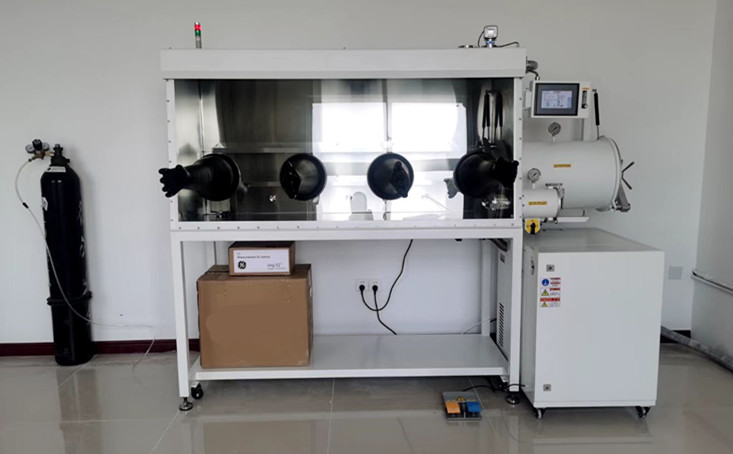

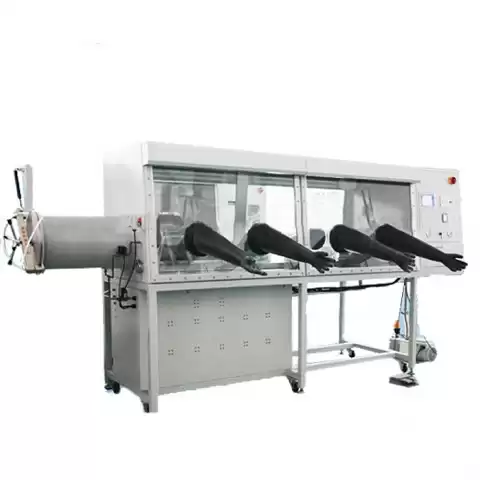

Lab Double Station Vacuum Glove Box for Lithium Ion Batteries Lab Research
|
Working Voltage
|
220V AC, 50/60Hz, Single Phase
|
|
Max. Power Consumption
|
3KW
|
|
Glove Box Chamber
|
· Case Material: Stainless Steel 304
· Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)
· 12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner
|
|
Chamber Condition
|
· Water concentration: <1 ppm (20°C, 1 atm)
· Oxygen concentration: <1 ppm (20°C, 1 atm)
|
|
Leak rate
|
<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)
|
|
Air-lock Chamber
|
· Antechamber Dimensions: 385mm(Dia.) x 588mm(L)
· Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)
· Max. vacuum level: 100 Pa
|
|
Working Gas
|
· Operating gas: Inert gas such as N2, Ar, He
· Regenerating gas: Mixture of H2 (10%) and Operating gas
o For purification system with only water adsorbing function, Regenerating gas will be the same as Operating gas
|
|
Gas Purification System
|
· Automated Regeneration Process
· Automated water and oxygen removal
· Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials
· Moisture removal capacity: 1.5KG
· Oxygen removal capacity: 180L
|
|
Filter System
|
· Organic Solvent Filter System filled with replaceable activated carbon
· Built in HEPA filter can eliminate particle size > 0.3μm
|
|
Control system
|
· Siemens PLC control system with 6" touch screen display
o Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
o Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
o Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa
|
|
Pump
|
· England EDWARDS pump is included for faster vacuum and removing moisture
· Vacuum rate: 8.4 - 12 m^3/hr
|
|
Blower
|
Flow Rate: 90m³/h
|
|
Purification Pipeline
|
304 Stainless Steel, KF40 Port
|
|
Gloves
|
A pair of NORTH butyl glove is included to provide better protection against toxic materials
|
|
Lighting
|
Built in fluorescent lamp
|
|
Slidable Shelf
|
· Three slidable shelves are built 0n top of inside glove chamber with dimensions of 300mm x 250mm
· 300mm away from roof
|
|
Product Dimensions
|
3115mm(L) x 830mm(W) x 1830mm(H) (123" x 33" x 72")
|
|
Shipping Dimensions & Weight
|
Total 2 pallets
#1: 86"x41"x84"
#2: 86"x41"x83"
Total weight 1800 lb
|
|
Warranty
|
· One Year limited warranty with lifetime support
· Rusting and damage due to improper storage condition or maintenance is not covered by warranty
· Gloves are consumable items and are not covered under warranty
|
|
Application Notes
|
· The channel between the glove box chamber and the gas purification system must be unimpeded during the operation of gas purifying
· Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation
· Corrosive gases are prohibited as they will damage the water sensor and oxygen sensor
· The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas
· Coolant water outlet must remain switched on all the time
· System check frequently to replace filters and solvent adsorbents for maintanence and maximum efficiency
|
|
Specifications of Standard Model of Purification Glove Box
|
|
No.
|
Model No.
|
Box Dimensions
|
Total Dimensions
|
Operating Sides
|
Numbers of Gloves
|
Options
|
|
1
|
GBP800S-2
|
1200*800*930mm
|
1915*830*1830mm
|
Single
|
2
|
Single or double purification columns
|
|
2
|
GBP1000S-4
|
1200*1000*930mm
|
1915*1060*1830mm
|
Single
|
4
|
Single or double purification columns
|
|
3
|
GBP1000D-4
|
1200*1000*930mm
|
1915*1060*1830mm
|
Double
|
4
|
Single or double purification columns
|
|
4
|
GBP1200S-2
|
1200*1200*930mm
|
1915*1260*1830mm
|
Single
|
2
|
Single or double purification columns
|
|
5
|
GBP1200D-4
|
1200*1200*930mm
|
1915*1260*1830mm
|
Double
|
4
|
Single or double purification columns
|
|
|
|
|
|
|
|
|
|
6
|
GBP800S-3
|
1500*800*930mm
|
2215*1060*1830mm
|
Single
|
3
|
Single or double purification columns
|
|
7
|
GBP1000S-3
|
1500*1000*930mm
|
2215*1060*1830mm
|
Single
|
3
|
Single or double purification columns
|
|
8
|
GBP1000D-6
|
1500*1000*930mm
|
2215*1060*1830mm
|
Double
|
6
|
Single or double purification columns
|
|
9
|
GBP1200S-3
|
1500*1200*930mm
|
2215*1260*1830mm
|
Single
|
3
|
Single or double purification columns
|
|
10
|
GBP1200D-6
|
1500*1200*930mm
|
2215*1260*1830mm
|
Double
|
6
|
Single or double purification columns
|
|
|
|
|
|
|
|
|
|
11
|
GBP800S-4
|
1900*800*930mm
|
2615*1060*1830mm
|
Single
|
4
|
Single or double purification columns
|
|
12
|
GBP1000S-4
|
1900*1000*930mm
|
2615*1060*1830mm
|
Single
|
4
|
Single or double purification columns
|
|
13
|
GBP1000D-8
|
1900*1000*930mm
|
2615*1060*1830mm
|
Double
|
8
|
Single or double purification columns
|
|
14
|
GBP1200S-4
|
1900*1200*930mm
|
2615*1260*1830mm
|
Single
|
4
|
Single or double purification columns
|
|
15
|
GBP1200D-8
|
1900*1200*930mm
|
2615*1260*1830mm
|
Double
|
8
|
Single or double purification columns
|
|
Notes：
Cabinet water and oxygen content under the standard condition:
Water content ≤1ppm, oxygen content≤1 ppm (Note: Standard condition is that an atmospheric pressure, constant temperature of 20 degree).
Leakage Rate: ≤0.05Vol%/ h (subject to change value of oxygen content in box)
Used Gases
a) Working Gas: N2、Ar、He and etc.
b) Controlling Gas: Compressed air or Inert Gas.
C) Restoring Gas: Mixed gas of working gas and hydrogen.
Restoring gas is as same as working gas if there is only water removal system or oxygen removal system.
Remarks: All Single side boxes of 4 gloves are assembled glove box. Numbers of assembled box can be ordered as per customer’s needs. Quantity of purification columns is also designed to be matched according to customer’s requirements
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
