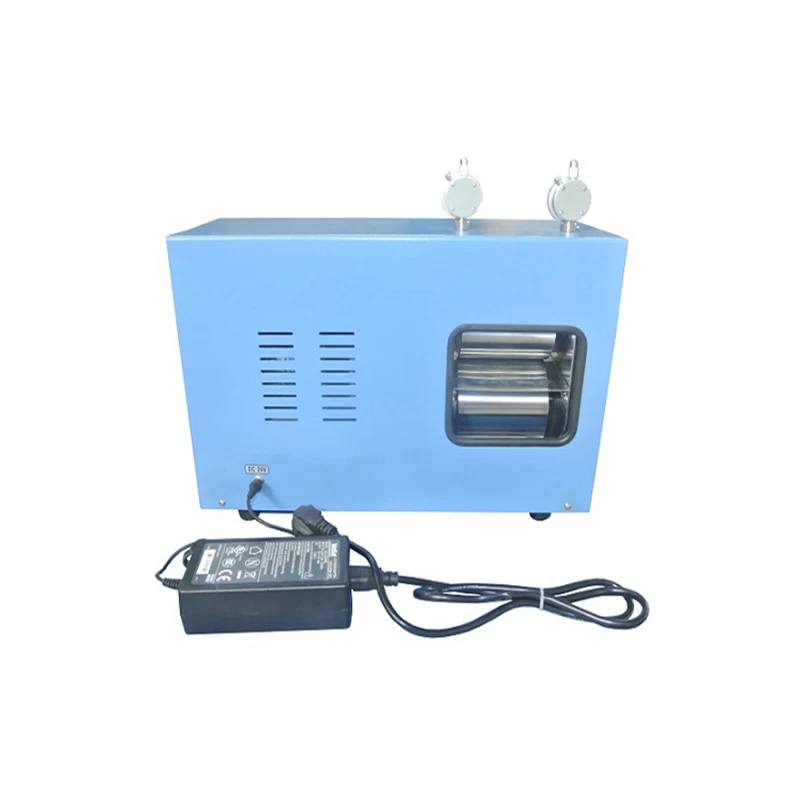

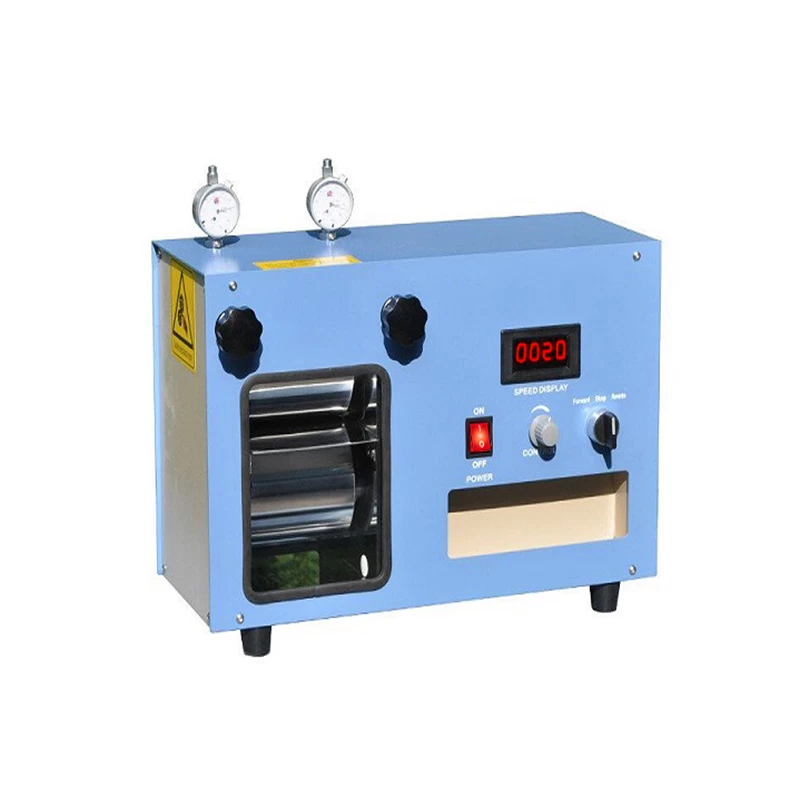

This hot roller press machine is a electric rolling press with variable speed 24VDC gear motor and switch power supply, which can be used from 110V- 220VAC inside glove box. It has dual rollers of 100 mm Diameter * 100mm width. This rolling press machine is an ideal calendering equipment for preparing electrode sheet for Li-ion batteries research after coating and drying.
SPECIFICATIONS:
|
Working Voltage
|
110V - 240V AC, 50/60Hz, automatic switch for worldwide use
UL/CSA/TUV certified power supply is in outside machine for easy
|
|
Motor
|
High Current torque 24V DC motor with reducing gear
1.8 A Max.
Rated power 40W
|
|
Rolling Speed
|
Dimensions: 100mm(Dia.) x 100mm(W)
Rolling Speed: 5-40mm/s or 0.3 - 2.4 Meter/ Minute adjustable
|
|
Standard: Steel Roller
|
Material: Made from hardened tool steel (RC > 62) with Cr electroplated coating
Roller diameter tolerance (TIR): <0.004mm
RA:0.4um
Never roll materials with hardness > 50HRC (bench top rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers.)
Optional: Ceramic coated rollers are available in product option bar
Ceramic coated on hardened tool steel with HRC > 72,
The coating material: 97% is chromic oxide; 3% is aluminum oxide, calcium oxide, and magnesium oxide
This roller is specially designed for rolling Lithium metal sheet, please don't use it for hard material
|
|

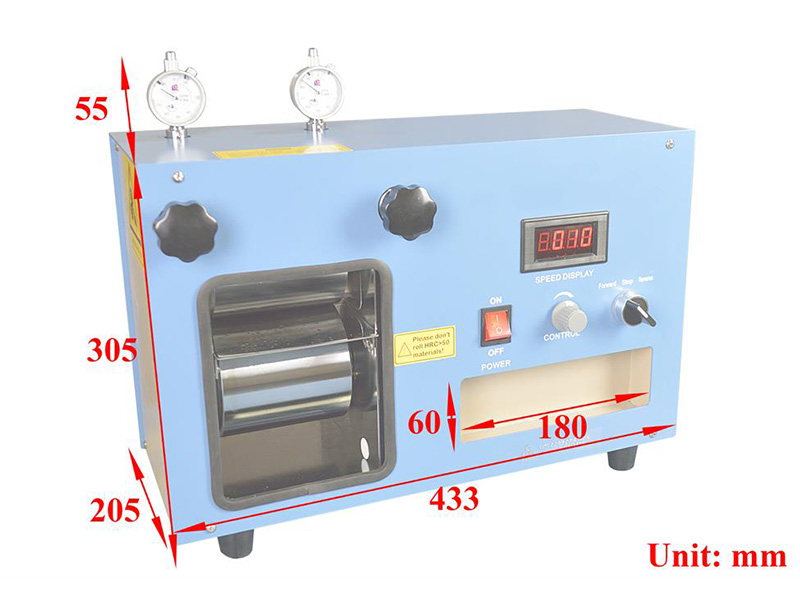

Product Dimensions
|
433 mm(L) x 205 mm(W) x 305 mm(H)
|
|
Compliance
|
CE Certificated
All electric components ( >24V) are UL / MET / CSA certified
The Product is ready to pass TUV(UL61010) or CSA certification at extra cost.
|
|
Warranty
|
One-year limited manufacturer warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance are not covered by warranty
|
|
Warnings
|
Never roll materials with hardness > 50HRC
In order to prolong the lifespan of the roller bearings, regular lubrication is recommended.
Multi-step thickness calendering needed: While calendering the sample sheet, make each calendering decrement of 0.02mm comparing to sheet original thickness.
Never calendering decrement over 0.02mm comparing to original sheet thickness each calendering.
Must clean roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
|
|
Net Weight
|
123 lbs
|
|
Shipping Weight
|
160 lbs
|
|
Shipping Dimensions
|
40"x23"x26"
|
