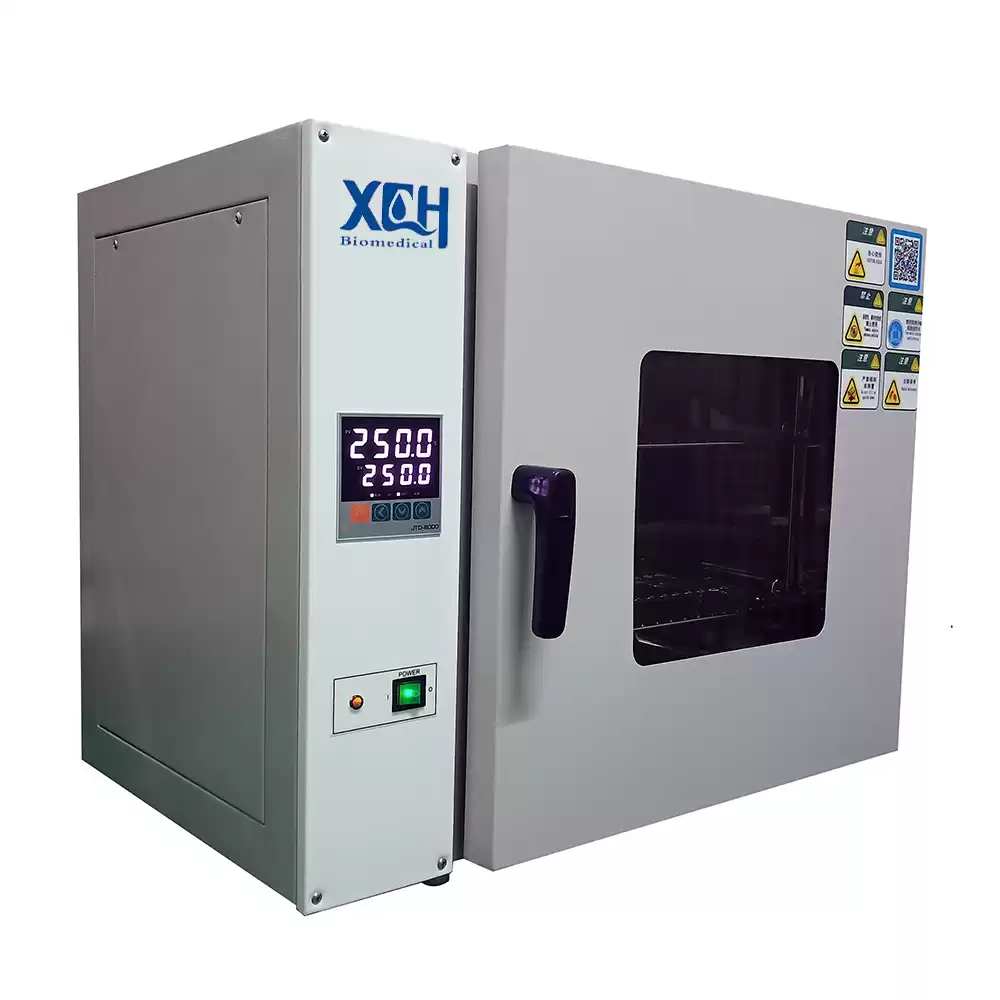

Lab Electric Thermostatic Hot Air Drying Oven
Electric thermostatic drying oven, produced by advanced laser and numerical control processing equipment. It is always used for drying, baking, waxing and sterilization in mining enterprises, laboratories and scientific research institutions.
Key Features:
• The box is made of mirror stainless steel by argon arc welding, and the outside of the box is made of high quality steel plate.
• Adopt microcomputer P.I.D. temperature controller with overtemperature deviation protection digital display, with timing function, accurate and reliable temperature control.
• The hot air circulation system is composed of a fan that can run continuously at high temperature and suitable air duct to improve the temperature uniformity in the working room.
• Using the new synthetic silicon seal strip, can operate at high temperature for a long time, long service life, easy to replace.
• Temperature Control: Constant temperature fluctuation is ±1℃ , Temperature accuracy is 0.1℃ .
• Timing Range: 1-9999min;
• Power: AC 220V±10% 50HZ
• Optional: Independent temperature limit alarm system will automatically stop when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents.
Model & Parameters:
| MODEL
|
TEMP RANGE
|
CAPACITY
|
INTER DIMEN
W×D×H
|
EXTER DIMEN
W×D×H
|
POWER
|
TRAYS
|
|
XCH-9070A
|
RT+10℃ ～ 250℃
|
70L
|
400×400×450(mm)
|
540×530×800(mm)
|
1.0KW
|
2
|
|
XCH-9140A
|
RT+10℃ ～ 250℃
|
140L
|
450×550×550(mm)
|
600×720×900(mm)
|
1.5KW
|
2
|
|
XCH-9240A
|
RT+10℃ ～ 250℃
|
240L
|
550×550×750(mm)
|
750×750×1150(mm)
|
2.5KW
|
2
|
|
XCH-9420A
|
RT+10℃ ～ 250℃
|
420L
|
640×585×1355(mm)
|
780×750×1880(mm)
|
3.1KW
|
3
|
XCH-9620A
|
RT+10℃ ～ 250℃
|
620L
|
780×600×1355(mm)
|
980×800×1880(mm)
|
4.0KW
|
4
|
XCH-9920A
|
RT+10℃ ～ 250℃
|
1000L
|
1000×600×1600(mm)
|
1140×800×2150(mm)
|
5.2KW
|
4
|
Application:
Electric thermostatic hot air drying oven is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc. Mainly include the following departments:
-
Pharmaceutical industry
-
Biochemistry
-
Agricultural science
-
Other scientific research and industrial production departments
Advantages:
Fast induction, small system error
Safe and easy to operate
High temperature uniformity
High precision tempereture control, good insulation
Low cost, Fast shipping
