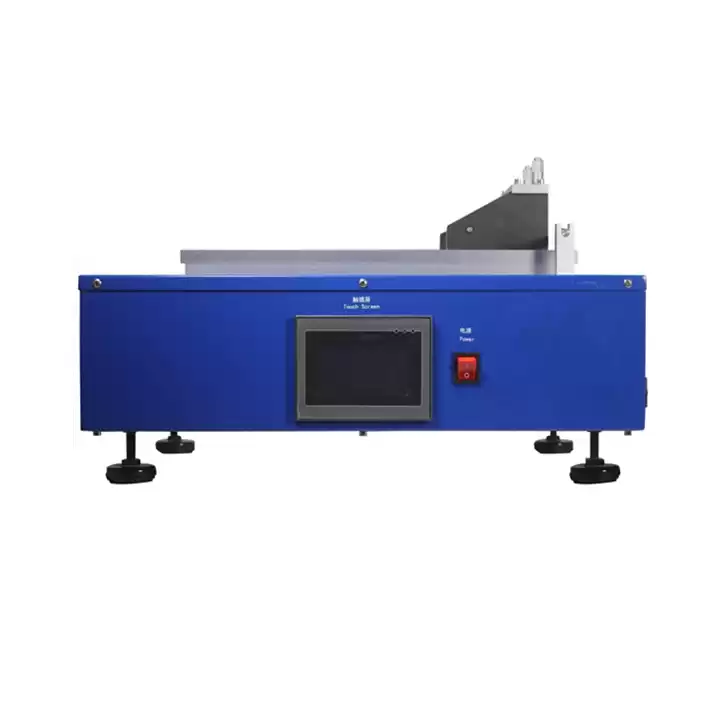

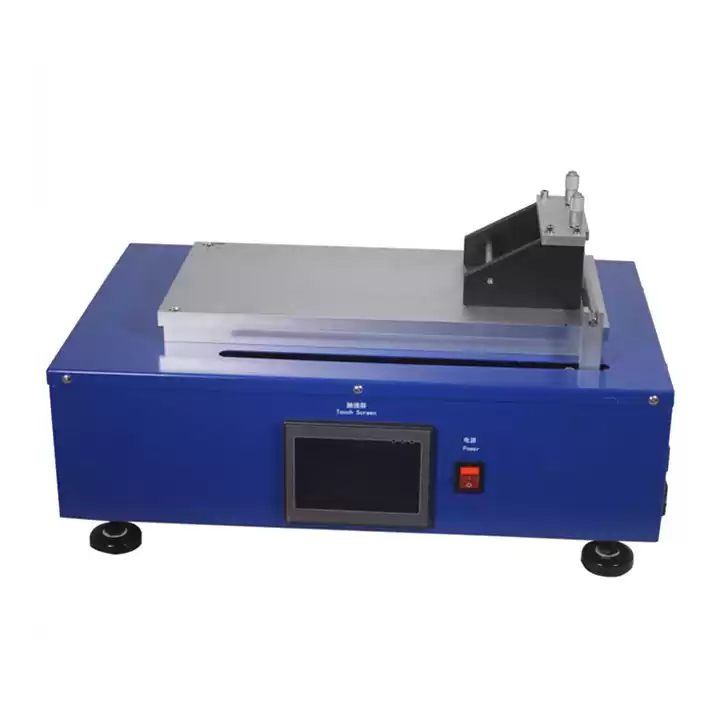

Lab Vacuum Film Applicator Coater Coating Machine With Vacuum Chuck & Doctor Blade
It has an unique driving system to produce smooth coating on all types of materials.

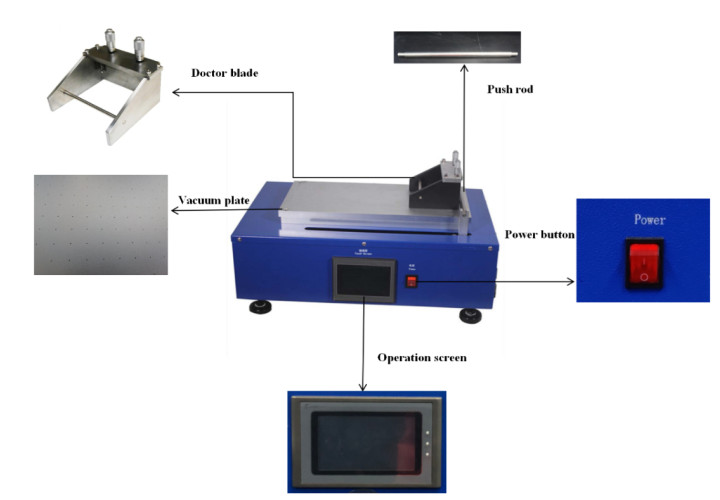

The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly
useful when making thin coatings. One 150 mm width adjustable micrometer applicator
(doctorblade) and an oilless vacuum pump are included for immediate use.
Heating cover with digital temperature controller can dry films after coating up to 200°C
with a temperature accuracy of +/-1°C.
This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.
|
ITEM
|
Data
|
|
Model
|
TMAX-JK-TMJ-220A
|
|
Working Voltage
|
220V ±10% 50Hz
|
|
Feed speed
|
0 ~ 100,the speed can be adjusted
|
|
Stroke Length
|
10 - 250 mm adjustable
|
|
Vacuum plate
|
With vacuum aluminum plate
|
|
Scraper range
|
0.02~0.5mm adjustable
|
|
Vacuum Pump
|
Yes
|
|
Max. Heating Temp.
|
200°C
|
|
Product Dimensions
|
500mm(L)×310mm(W)×330mm(H)
|
|
Heating drying system
|
At room temperature to 200 °C, temperature display
controller and accuracy + / - 1 °C
|
|
Net Weight
|
50 kg (135 lbs)
|
|
Warranty
|
One year warranty and lifetime maintenance
|
