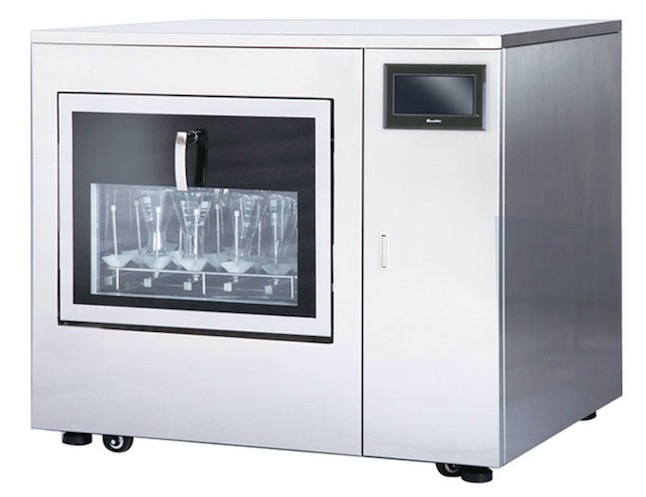

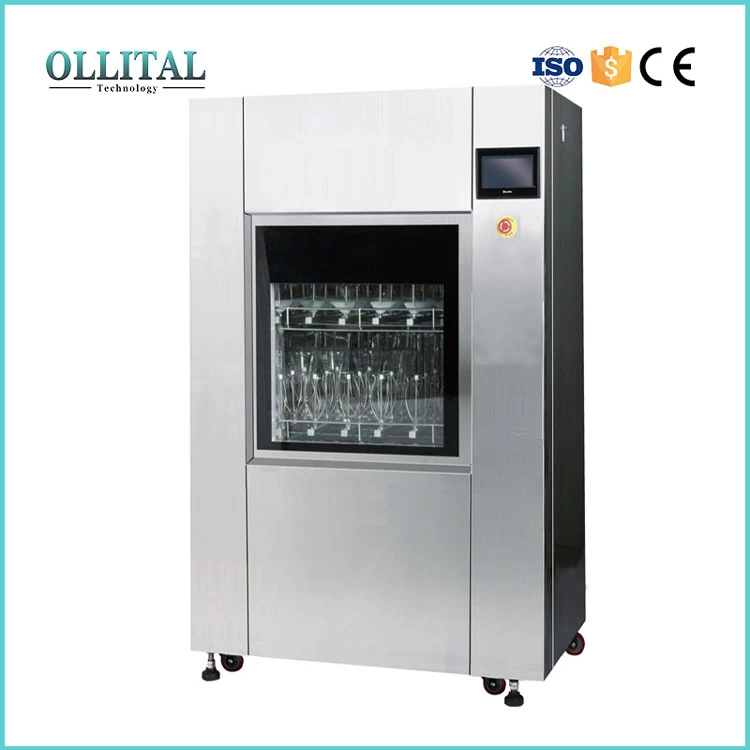

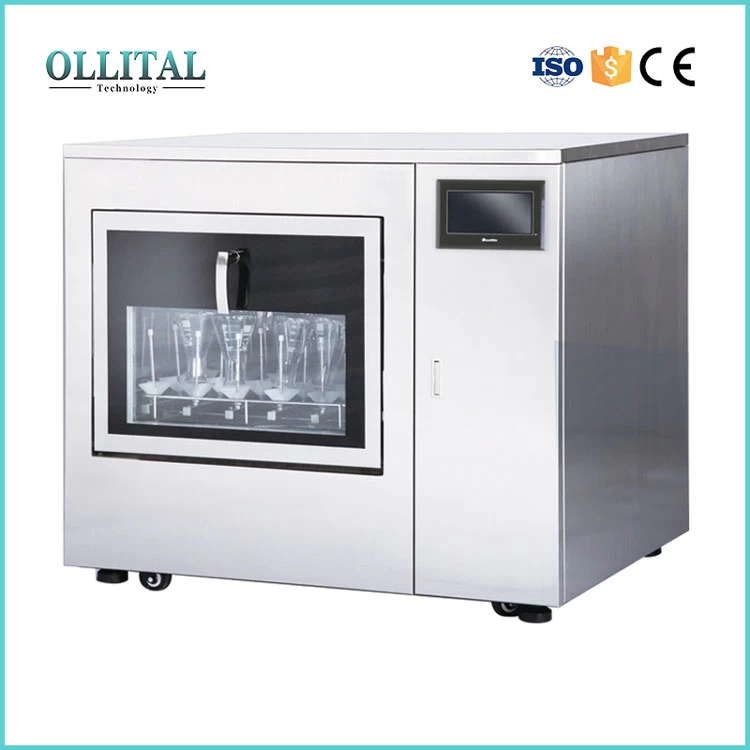

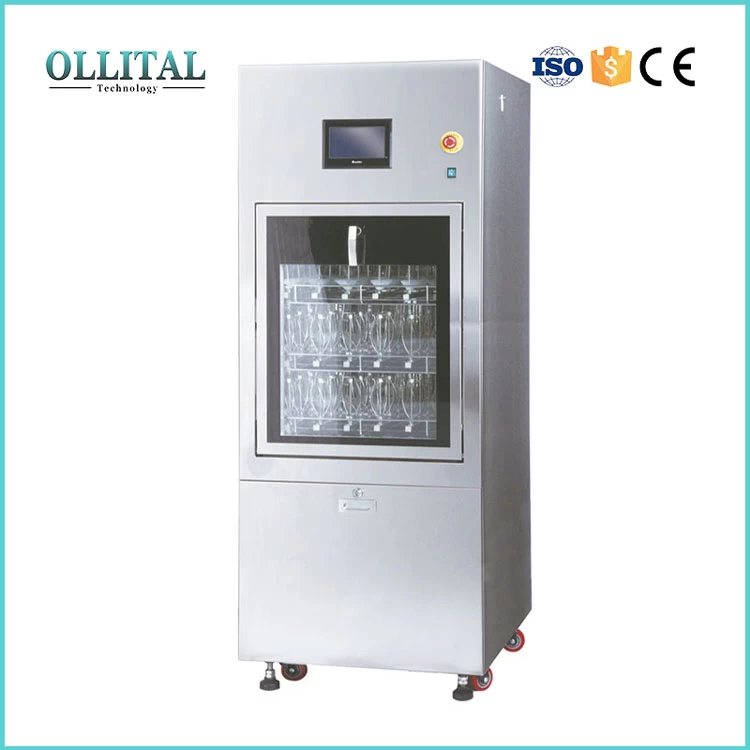

Lab Hospital Automatic Glassware Washer Machine
|
Model
|
OLT-LW120
|
OLT-LW220
|
OLT-LW320
|
OLT-LW420
|
|
Capacity
|
120L
|
220L
|
320L
|
420L
|
|
Water Consumption/Cycle
|
15L
|
25L
|
|
Inlet Water Pressure
|
0.3~1.0Mpa
|
|
Noise
|
<50dB
|
<55dB
|
|
Material
|
Stainless steel
|
|
Overall Power Consumption
|
6KW
|
6.5/16.5KW
|
6.5/18KW
|
18kW
|
|
Power Consumption-Water Washing
|
0.75KW
|
1.5 KW
|
2.8KW
|
|
Power Consumption-Water Heating
|
5KW
|
5/15KW
|
15KW
|
|
Power Consumption-Drying
|
2.1 KW
|
3.6KW
|
|
Power Supply
|
AC108V-220V, 50Hz
|
AC108V-220V, 50Hz; 380V, 50Hz
|
380V, 50Hz
|
|
Cleaning Racks
|
1 pcs
|
2 pcs
|
3 pcs
|
2 pcs
|
|
Standard Accessories
|
One bucket RBS A 150 leaner (1 L), One bucket RBS A 375 neutralizer (1 L)
|
|
Optional Accessories
|
USB interface, printer, Cleaning racks
|
|
External Size(W*D*H)mm
|
960*740*850
|
780*690*1760
|
790*690*1950
|
1100*900*2165
|
|
Package Size(W*D*H)mm
|
1100*950*1050
|
1000*850*2100
|
1000*840*2180
|
1270*1025*2240
|
|
Gross Weight(kg)
|
145
|
330
|
350
|
400
|
The lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program .
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process .
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃ .
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process .
5.PLC touch screen control with preset 6 programs(including one customized program) .
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch .
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
