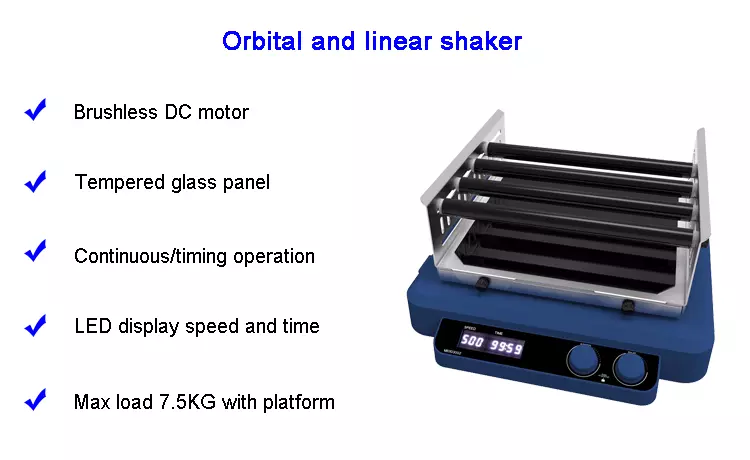

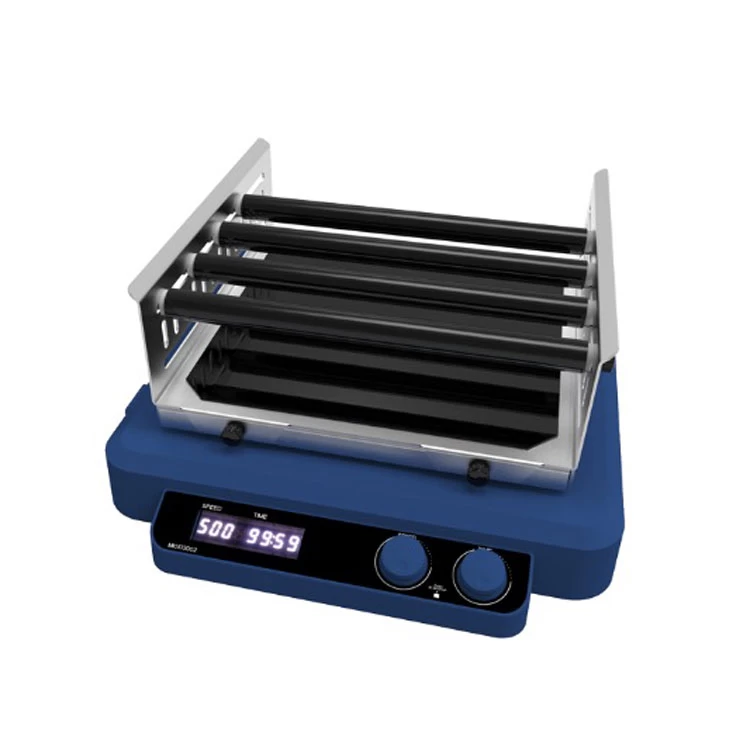

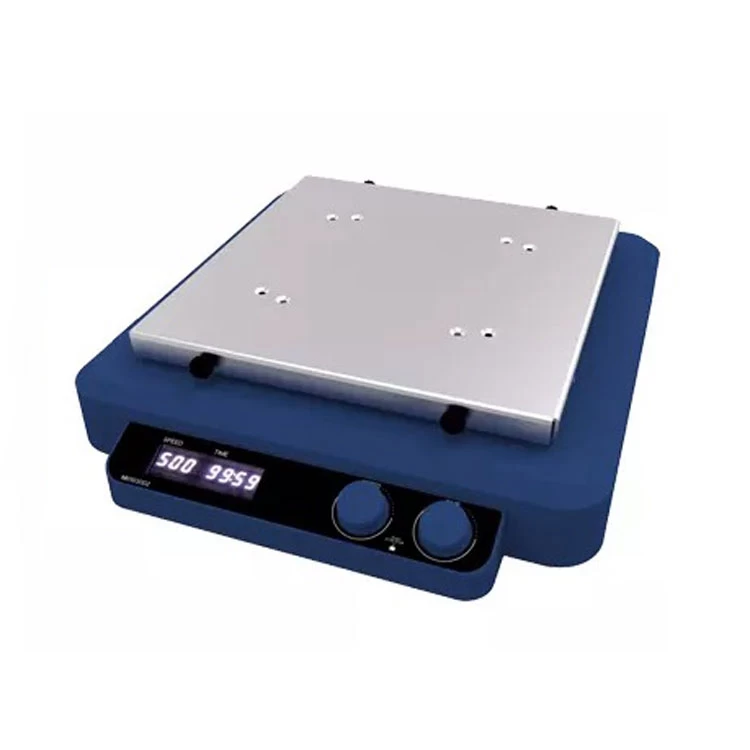

LCD Digital Biochemical Lab Orbital Linear Shaker
- Max. load capacity (with platform) is 7.5kg
- Support orbital and linear shaking
- Fashion design of high strength tempered glass on the front panel
- LED display for easy-reading of speed and time simultaneously
- Digital speed control system and micro-computer control make stable running and prevent sample splashing.
- Brushless DC motor is maintenance-free and provides long service life
- Over-load and over-speed detection and protection
- Supports both orbital shaking and linear shaking and easy to switch the shaking mode
- Continuous operation and timed operation in range of 0-99h59min are available
- Automatic alarm by time controller allows for unsupervised operation

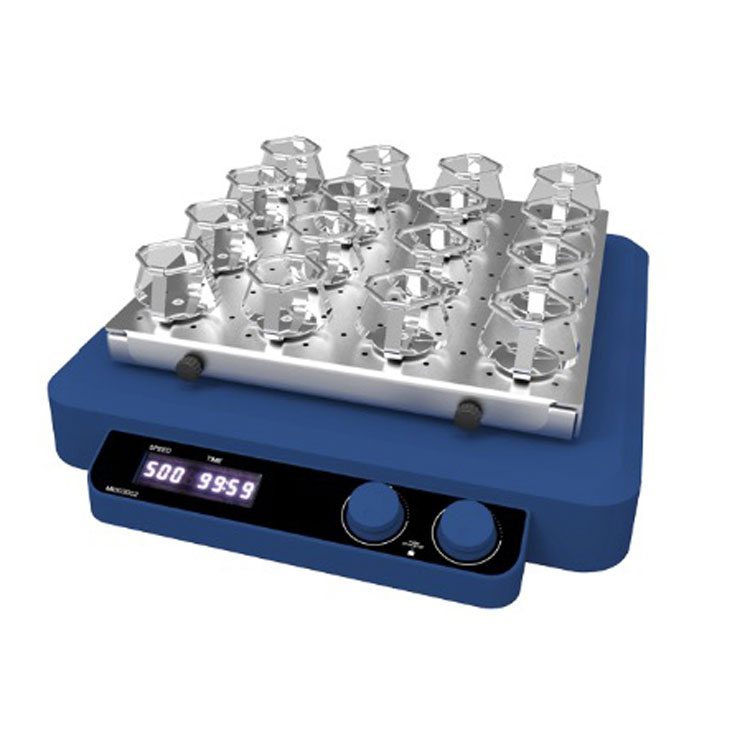

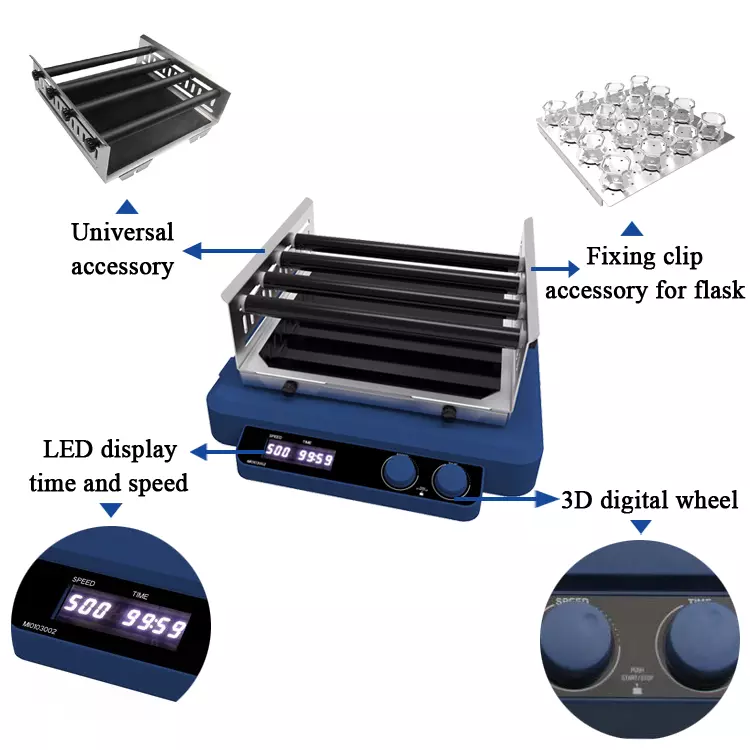

- A wide choice of platforms for various applications
|

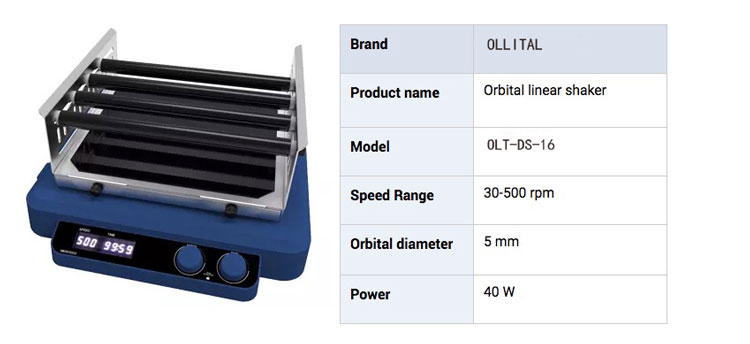

Model
|
OLT-DS-16
|
|
Shaking motion
|
Orbital / Linear
|
|
Motor type
|
Brushless DC motor
|
|
Max. load capacity (with platform) [kg]
|
7.5
|
|
Orbital diameter [mm]
|
5
|
|
Speed display
|
LED
|
|
Speed range [rpm]
|
30-500
|
|
Time display
|
LED
|
|
Time range
|
0-99H59Min
|
|
Operation type
|
Continuous / timed operation
|
|
Permissible ambient temperature [°C ]
|
5-40
|
|
Permissible relative humidity
|
80%
|
|
Protection class acc. to DIN EN60529
|
IP21
|
|
Voltage [VAC]
|
100-240
|
|
Frequency [Hz]
|
50/60
|
|
Power [W]
|
40
|
|
Dimensions [W x D x H, mm]
|
450 x 400 x 105
|
|
Weight [kg]
|
11
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
