Lab Manual 18650 Battery Crimping Machine for Cylinderical Battery Cell Sealing
Product Specification
TOB-CF650 is a compact hydraulic crimper for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
|
Model
|
Hydraulic 18650 Sealing Machine TOB-CF650
|
|
Driving Force
|
Manual hydraulic pressing up to 5T
|
|
Pressure Gauge
|
0-3500 psi (0-250 kg/cm^2)
|
|
Body
|
Stainless Steel
|
|
Crimping Dies
|
Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA
|
|
Warranty
|
One year limited with lifetime support
|
|
Product Dimensions
|
220mm(L) x 170mm(W) x 360mm(H)
|
|
Application Notes
|
Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case by using
the TOB-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model of equipment.
Please select the type of cylinder cell in the Product Options drop box to check the model
number and price for the corresponding crimping die of each cylinder cell type
|
|
Net Weight
|
32 kg
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

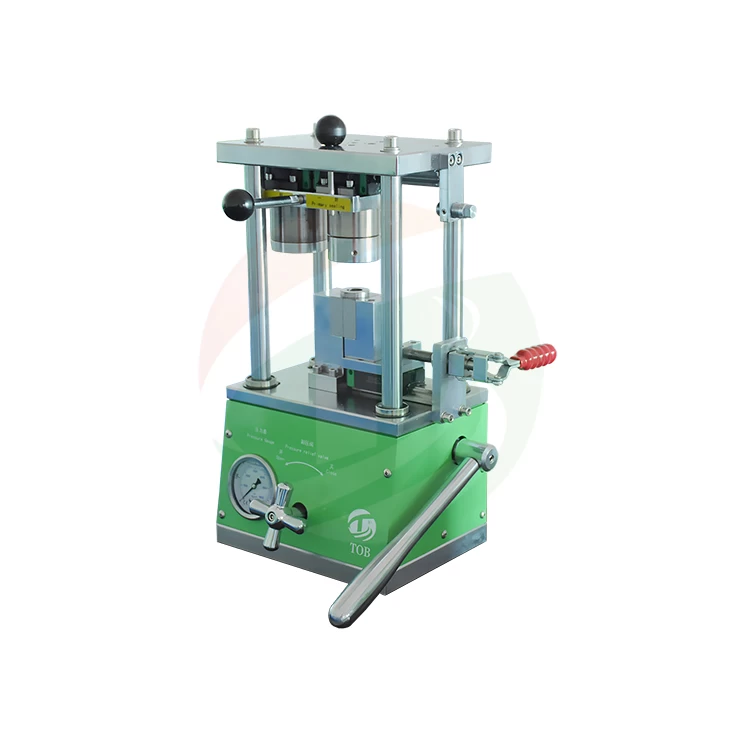

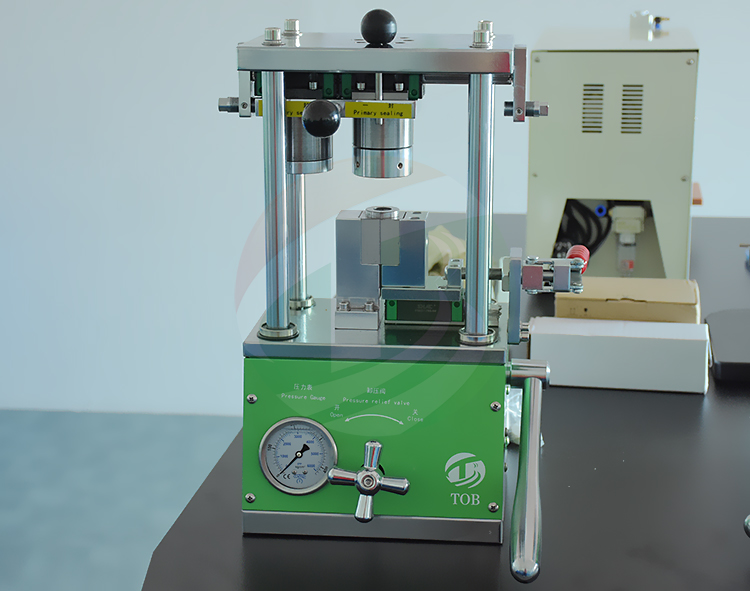

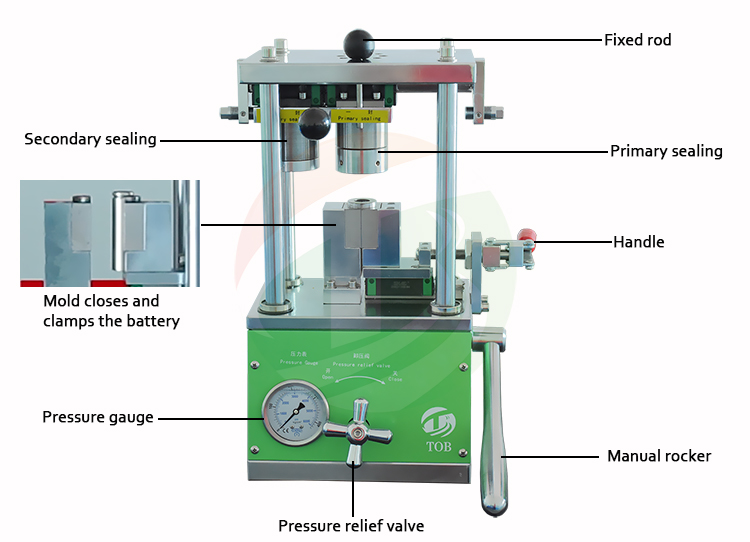

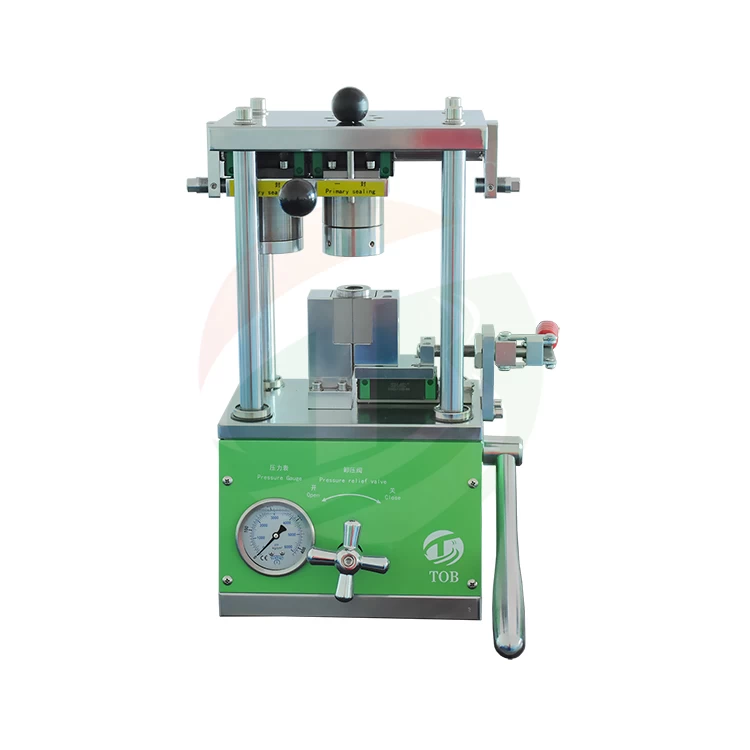

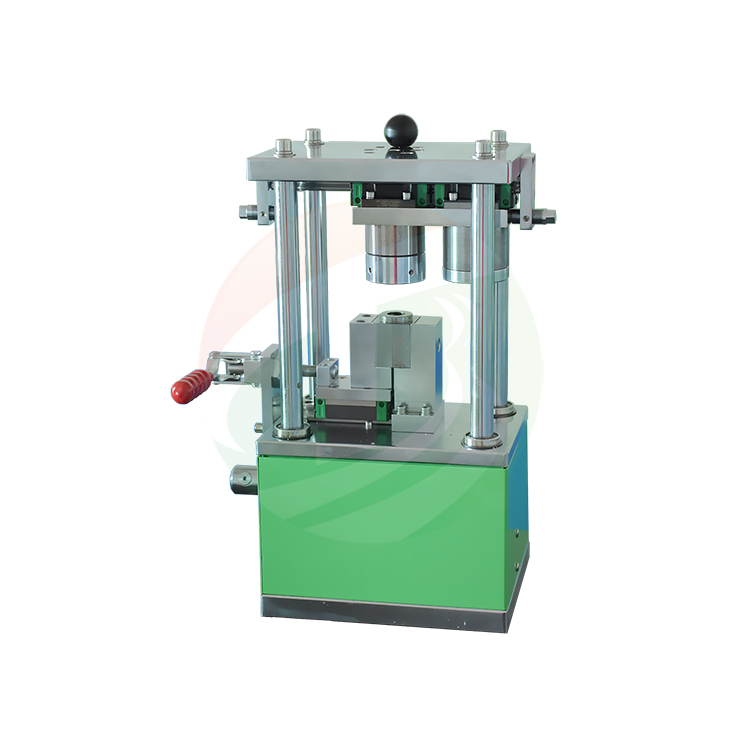

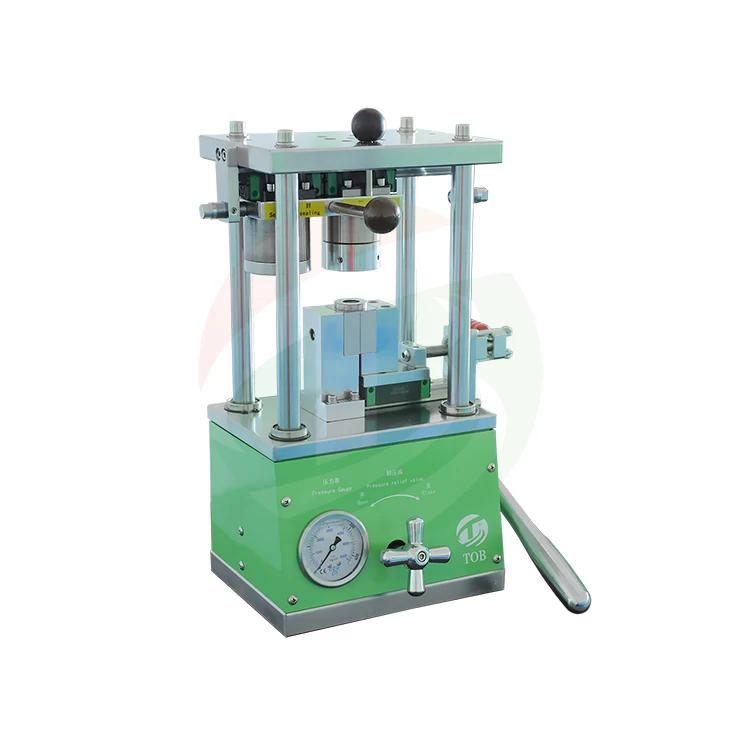

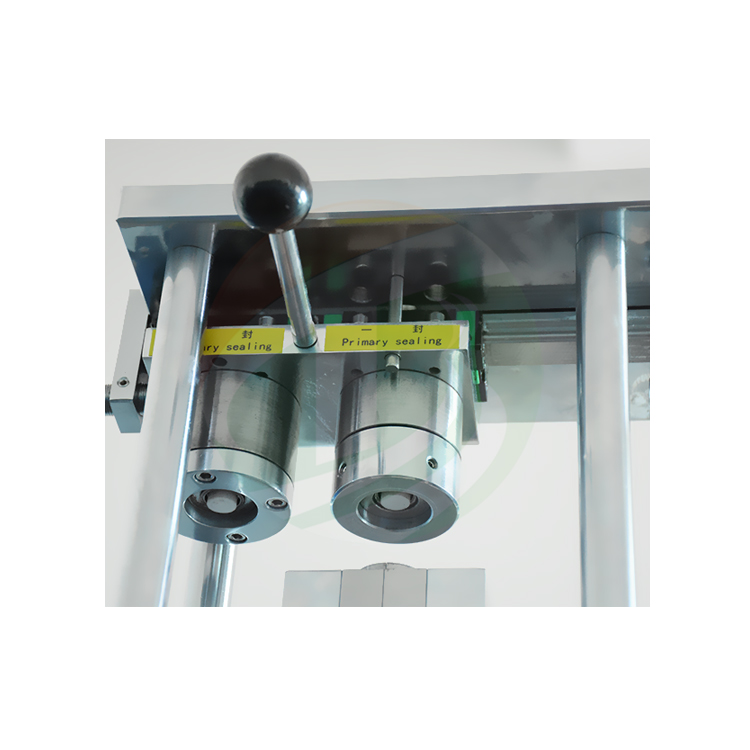

Product Image
Product Packing
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
