Lab Manual Cylindrical Battery Sealing Machine for 18650 21700 32650

This Lab Manual Crimper is a compact hydraulic crimping machine for sealing all types of cylinder cases for battery R&D.



Manual Hydraulic Battery Sealing Machine For 18650 21700 32650

INTRODUCTION:

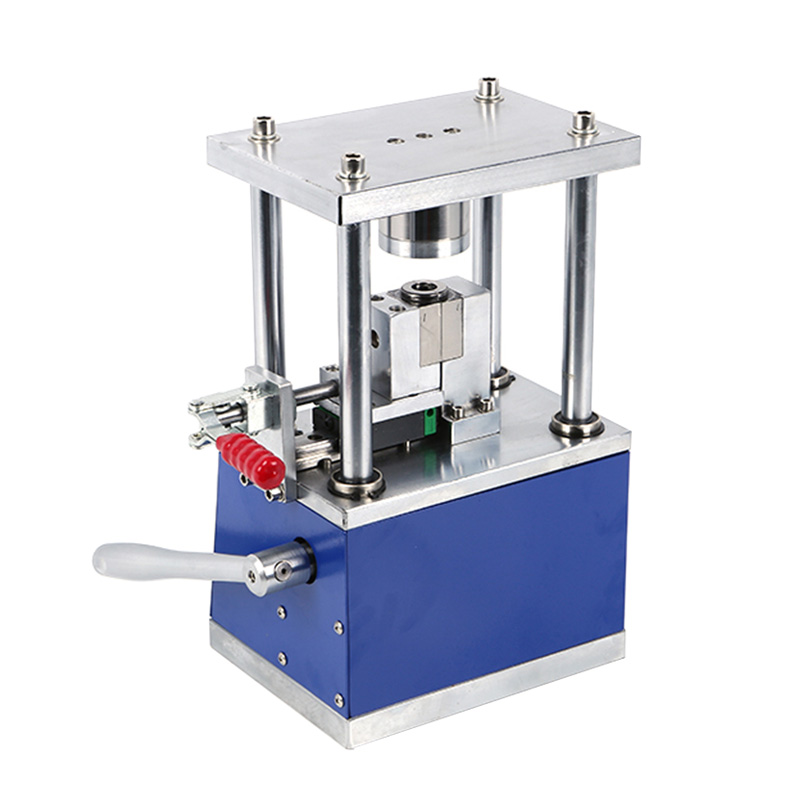

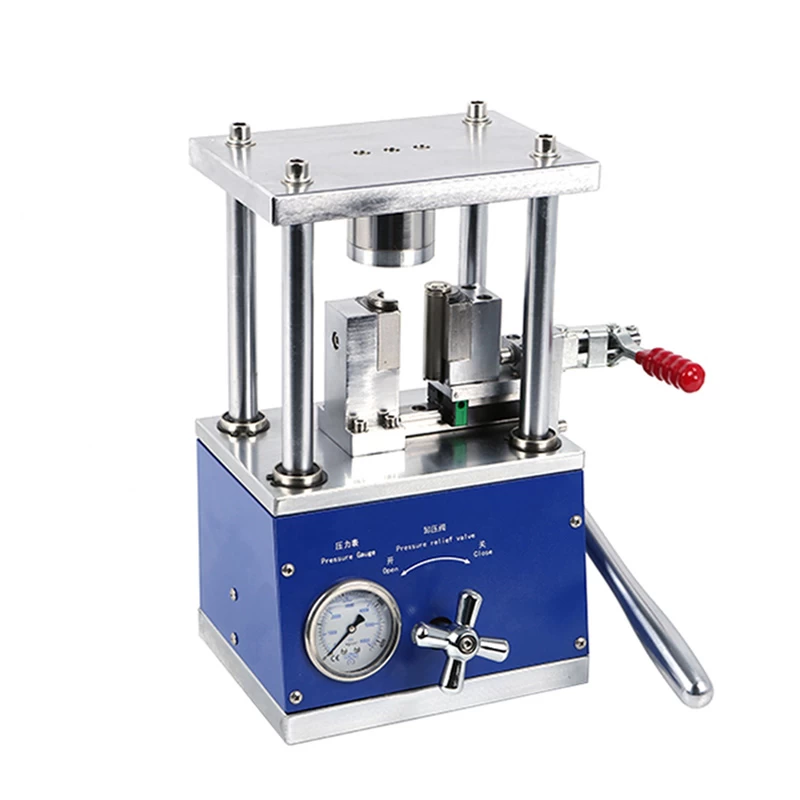

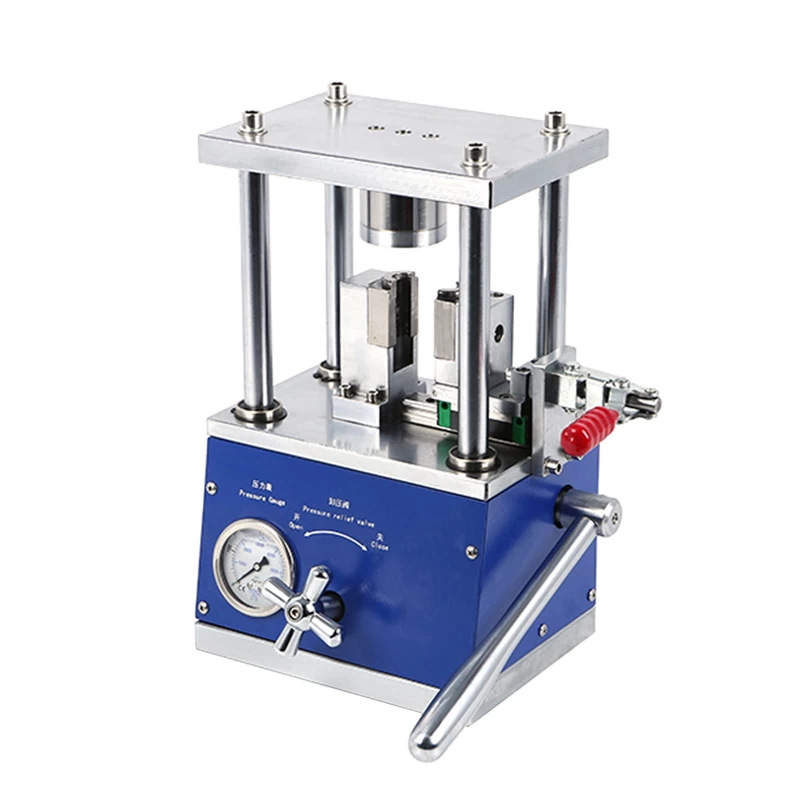

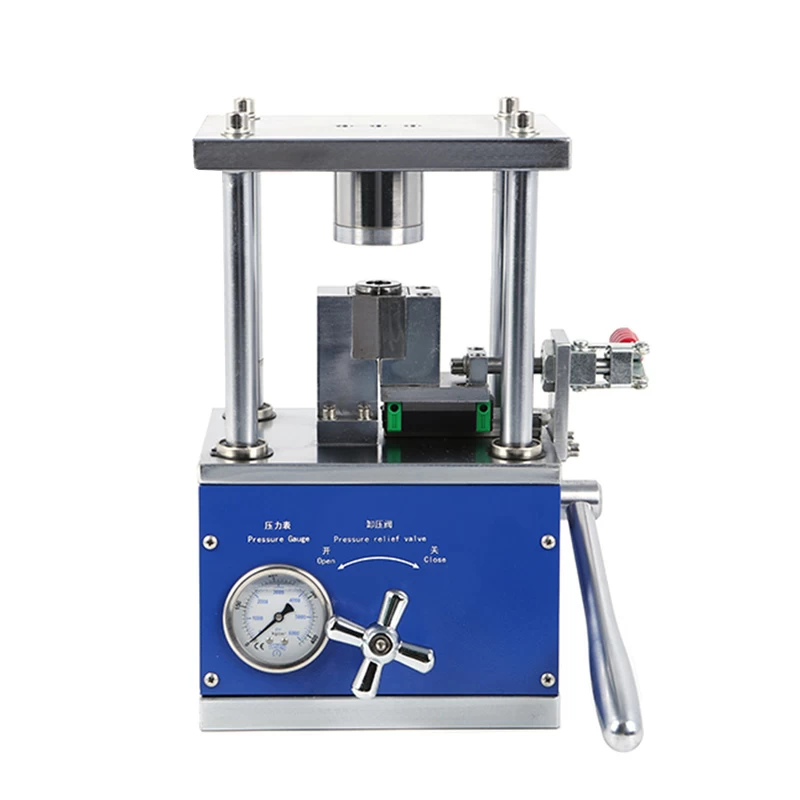

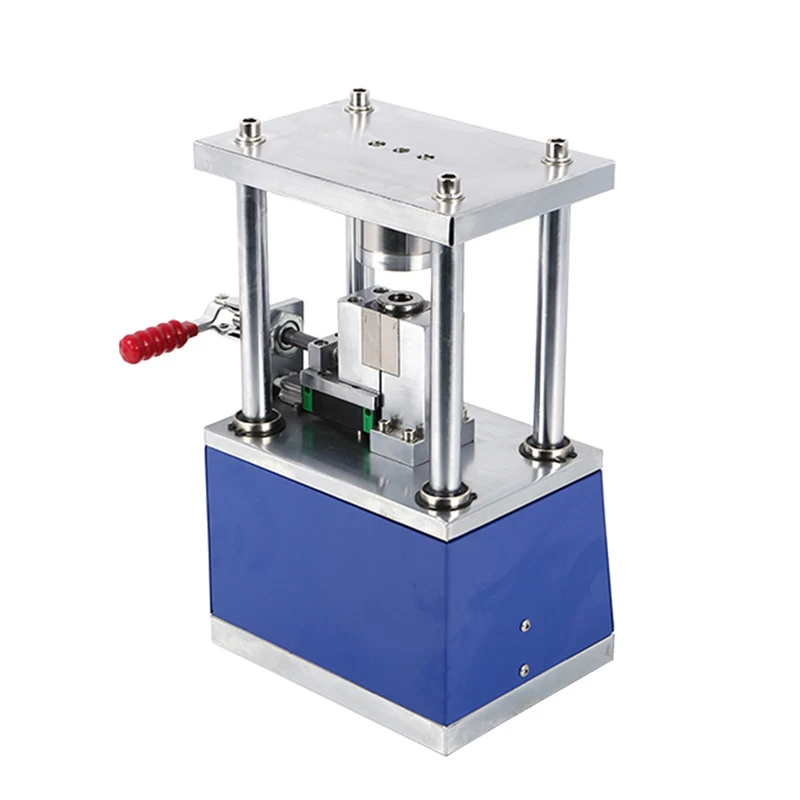

AOT-HSM650 is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.


The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure


SPECIFICATIONS:

Model

Hydraulic Sealing Machine AOT-HSM650

Driving Force

Manual hydraulic pressing up to 5T

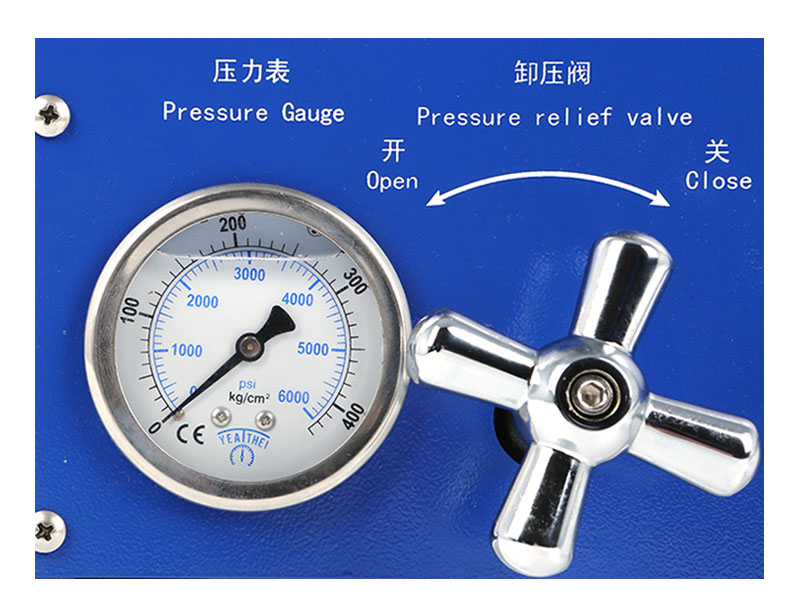

Pressure Gauge

0-3500 psi (0-250 kg/cm^2)

Body

Stainless Steel

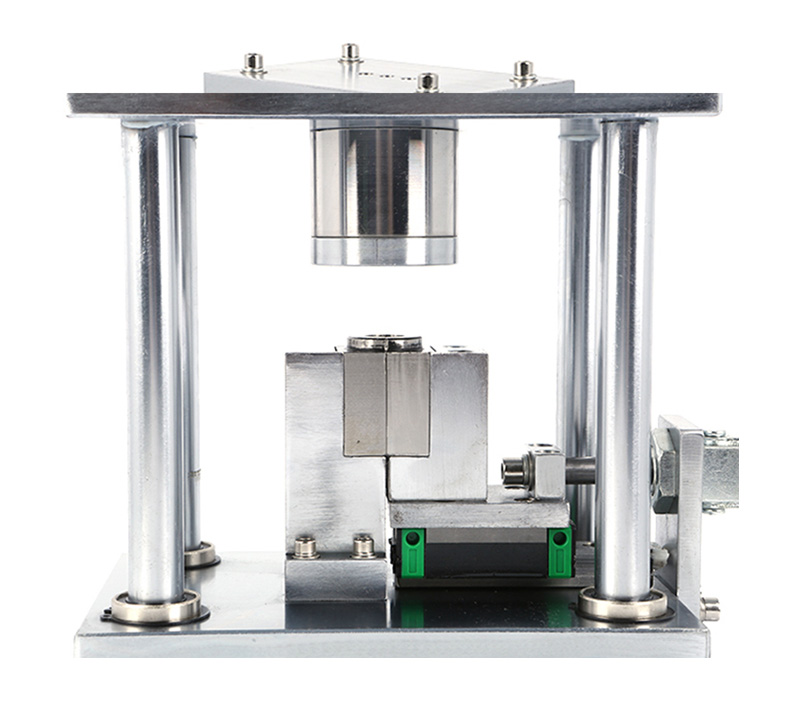

Crimping Dies

Six standard die for your choice: CR123 /18650 / 26650 / 32650 / AA /AAA

Warranty

One year limited with lifetime support

Product Dimensions

330mm(L) x 240mm(W) x 400mm(H)

Application Notes

Customized die for other cylindrical cell types is available upon request


It is necessary to groove the opening end of the cylindrical case by using

the grooving machine before sealing the cap


Each type of cylinder cell can only be sealed specifically by certain model of equipment.

Please select the type of cylinder cell in the Product Options drop box to check the model

number and price for the corresponding crimping die of each cylinder cell type

Net Weight

28kg
