Lab Manual Roller Press Machine for Lithium Battery Electrode
Product Specification
1 TOB-SG-100L Lab Roll Press Machine is a Manual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.
|
Model
|
4" Width(100mm) Manual Rolling Press Machine TOB-SG-100L
|
|
Warranty
|
One year limited manufacture warranty with lifetime support
|
|
Structure
|
1 Heavy duty steel frame, gears and handle
2 Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60) with
Cr electroplated coating

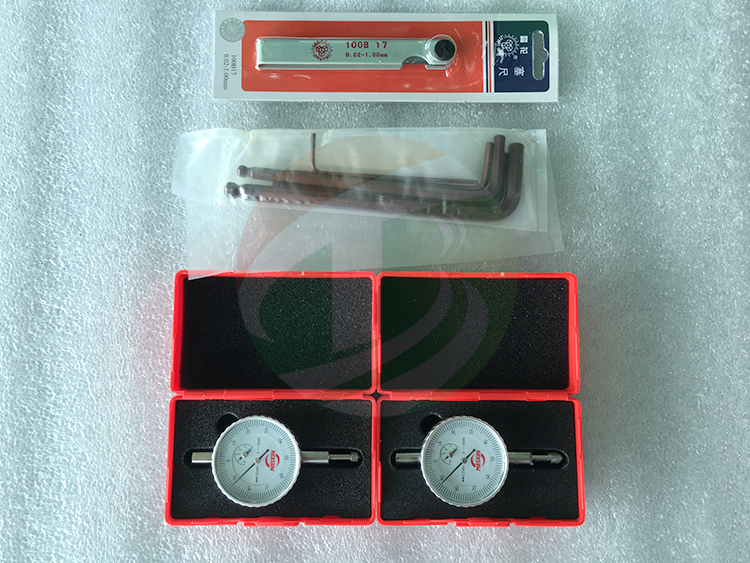

3 Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum
|
|
Roller
|
Dimensions: 96mm(Dia.) x 100mm(W)
Material: Made from hardened tool steel (HRC > 60)
with Cr electroplated coating. With finish > 0.8
|
|
Rolling press accuracy
|
≤±0.005
|
|
Rolling press thickness
|
0-2mm adjusted with Dial gauge
|
|
Rolling press width
|
Max 100mm
|
|
Product Dimensions
|
350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")
|
|
Weight
|
45kg (100 lbs)
|
|
Application Notes
|
This roller is specially designed for battery R&D in terms of its advantages as affordable,
compact and precise.
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2 Coated Rust-proof oil if machine were to be unused for a long period of time
3 The minimum thickness of the rolled sheet should depend on the physical property of
the materials. Here are some results from our test:
|
Electrode
|
Size
|
Original
thickness
|
Finished thickness
|
|
LiFePO4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
LiMn2O4
double sides
|
50mm Width x 260mm Length
|
0.205mm
|
0.09mm
|
|
Copper foil + graphite
(single side)
|
75mm Width x 240mm Length
|
0.09mm
|
0.04mm
|
Sample testing is available upon customer's request
|

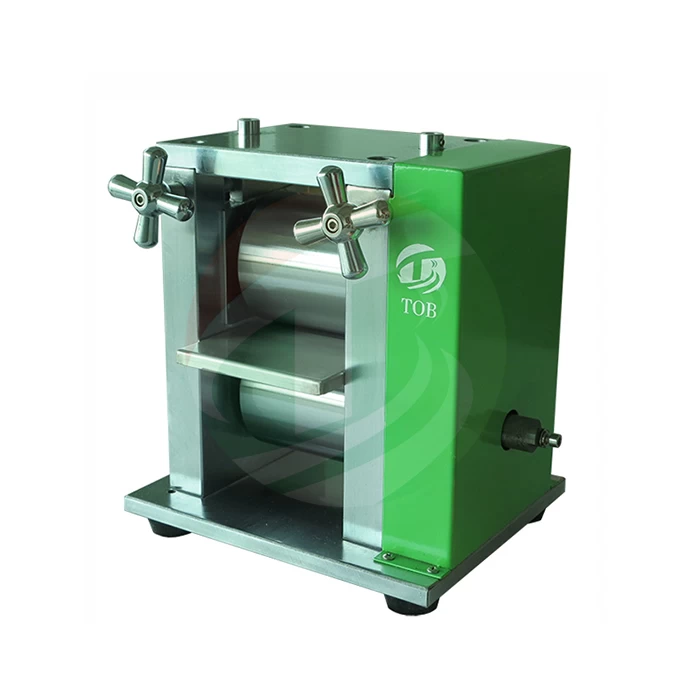

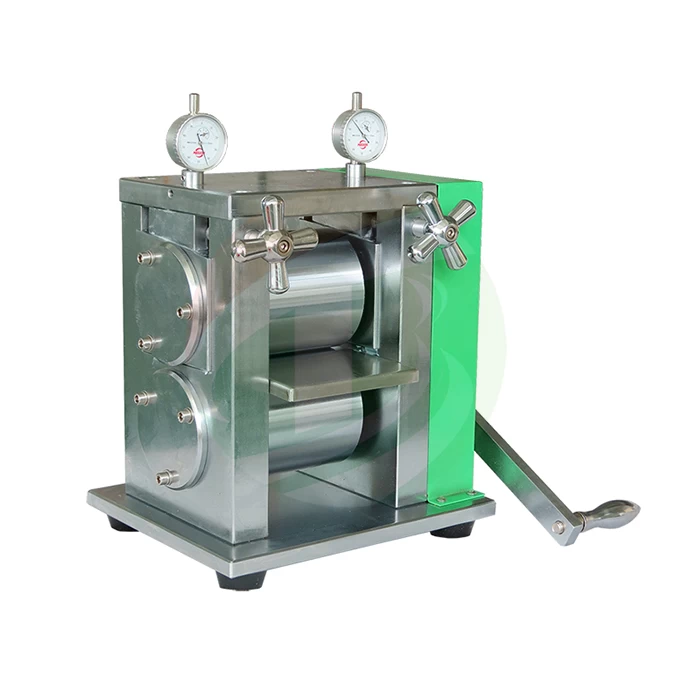

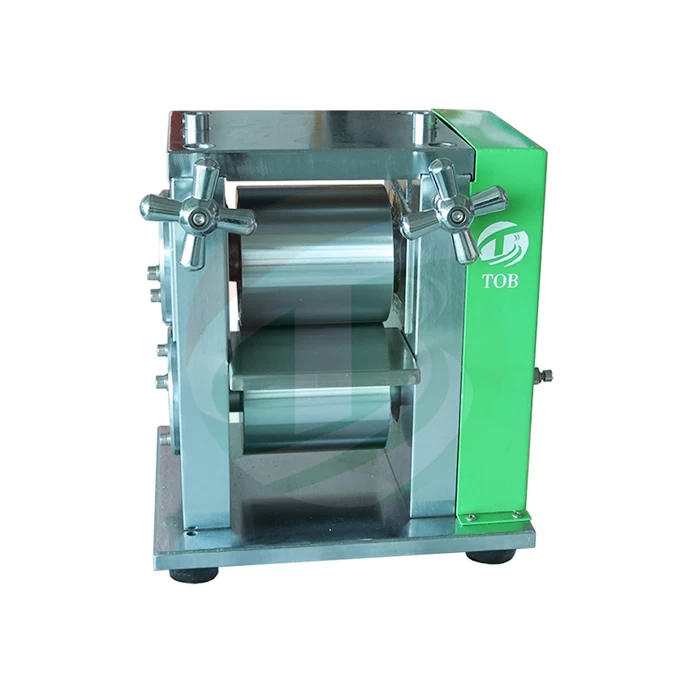

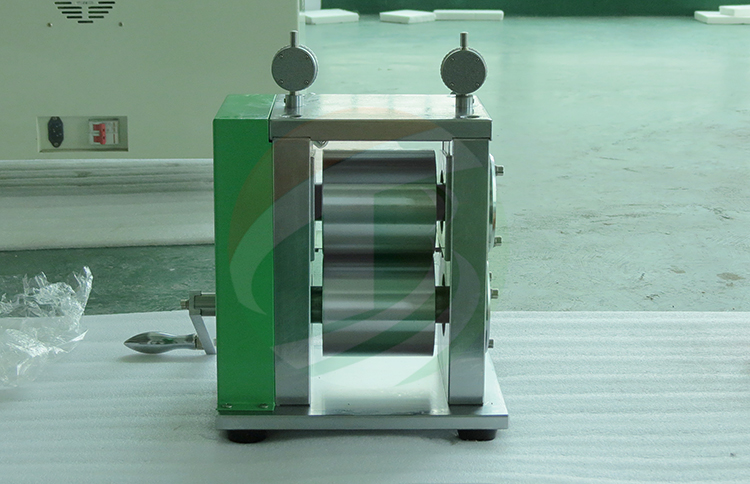

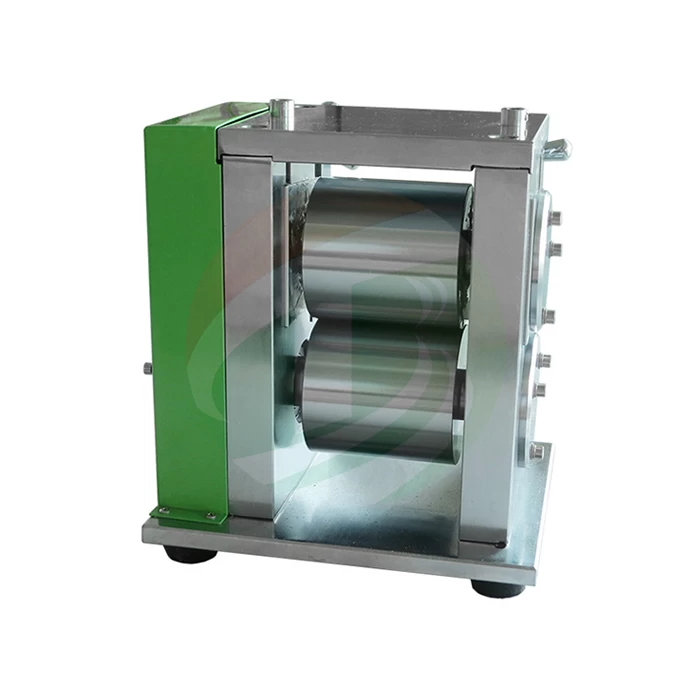

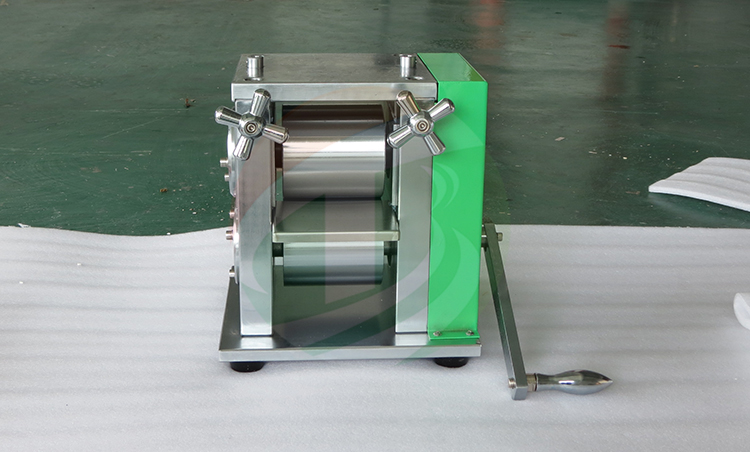

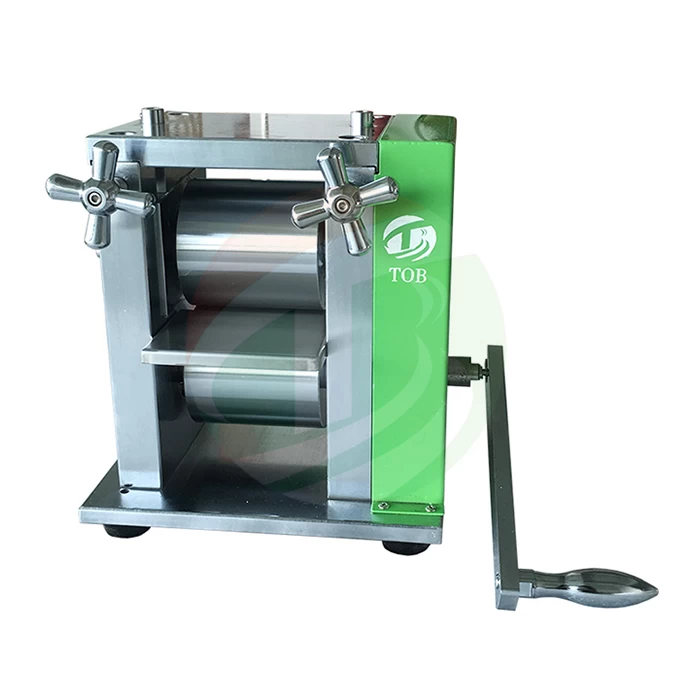

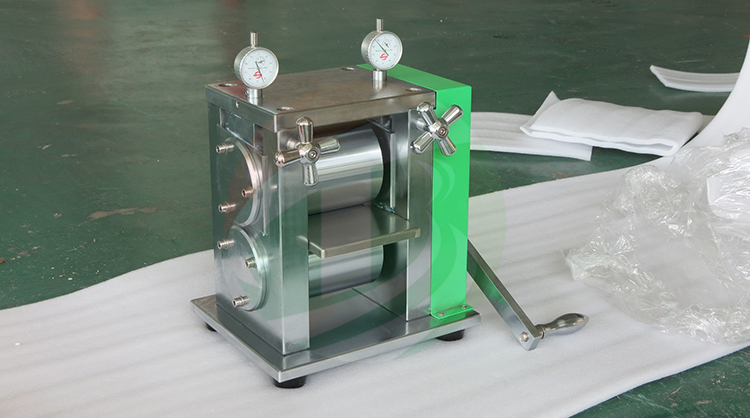

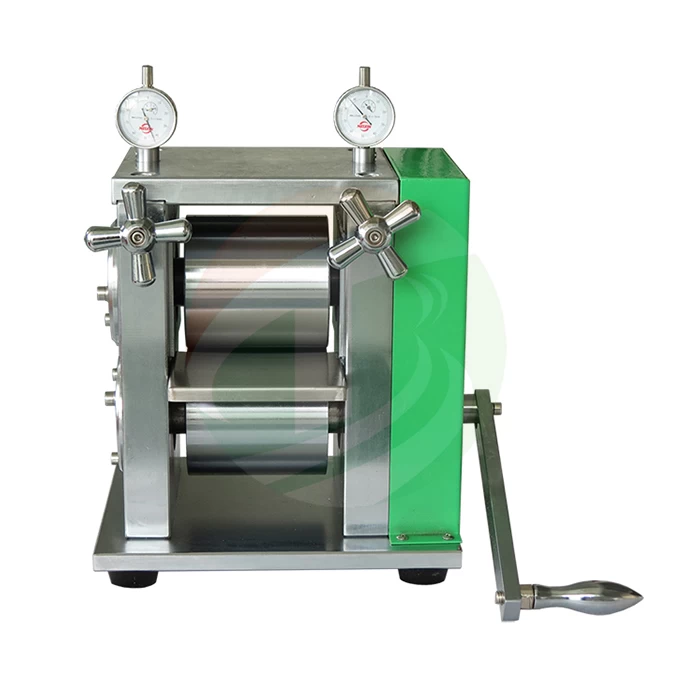

Product Image
Packing
