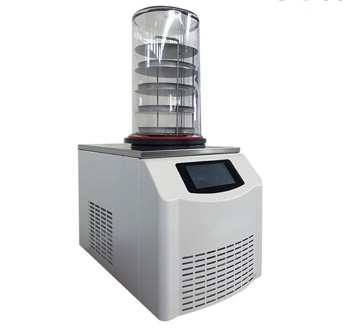

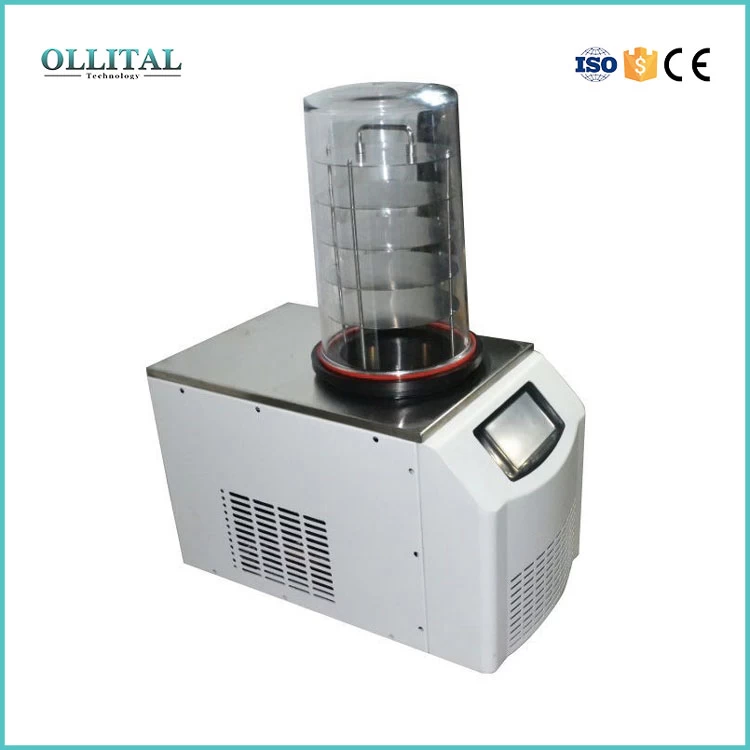

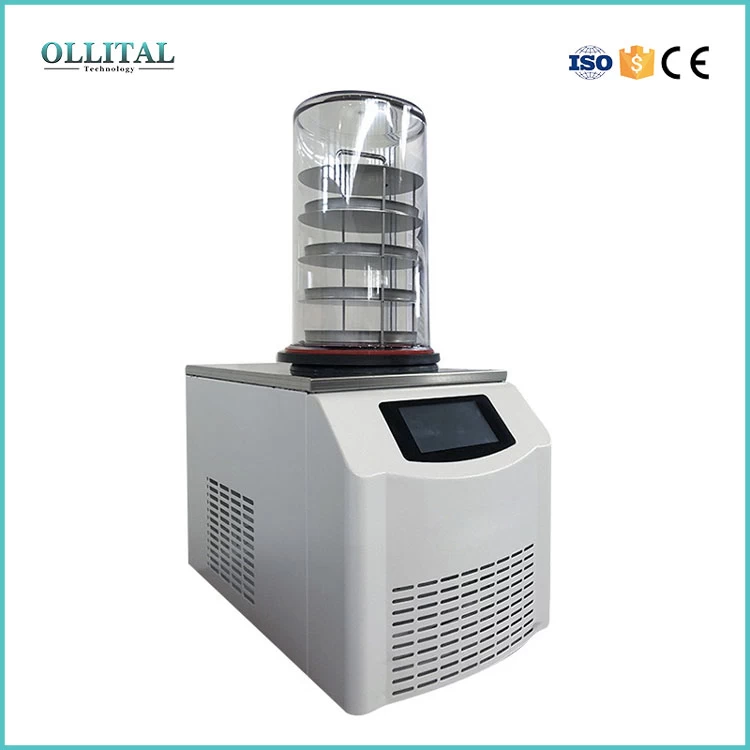

Lab Mini Benchtop Food Freeze Dry Machine
|
OLT-FD-10N
|
Ordinary
|
Top-Press
|
Ordinary Multi-Manifolds
|
Top-Press Multi-Manifolds
|
|
No-load Temperature
|
<-56℃
|
<-56℃
|
<-56℃
|
<-56℃
|
|
Freeze Area
|
0.12 m2
|
0.08 m2
|
0.12 m2
|
0.08 m2
|
|
Plate Load Capacity
|
1.5 L
|
1 L
|
1.5 L
|
1 L
|
|
Ability to Capture Water
|
3Kg
|
3 Kg
|
3 Kg
|
3 Kg
|
|
Vacuum Degree
|
<10Pa
|
<10Pa
|
<10Pa
|
<10Pa
|
|
Machine Dimension
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
|
Sample Tray Size
|
4×Φ200mm
|
Ø 3×180 mm
|
4×Φ200mm
|
Ø 3×180 mm
|
|
Power
|
950W
|
950W
|
950W
|
950W
|
|
Power Supply
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
|
interlayer spacing
|
70 mm
|
70 mm
|
70 mm
|
70 mm
|
|
Cold trap size
|
Ø215×160 mm
|
Ø215×160 mm
|
Ø215×160 mm
|
Ø215×160 mm
|
|
The number of Schering bottles
|
Ø22: 260
|
Ø22: 165
|
Ø22: 260
|
Ø22: 165
|
|
Ø16: 480
|
Ø16: 285
|
Ø16: 480
|
Ø16: 285
|
|
Ø12: 920
|
Ø12: 560
|
Ø12: 920
|
Ø12: 560
|
-
In lines with international standards of green enviroment friendly.
-
LCD display,display drying curve
-
Large opening trap,no coil inside,with samples prefreeze function
-
Refrigeration compressor imported,low noise
-
Cold trap and control panel were made by stainness steel,corrosion-resistant,easy to clean
-
Transparent drying room,secure and intuitive
-

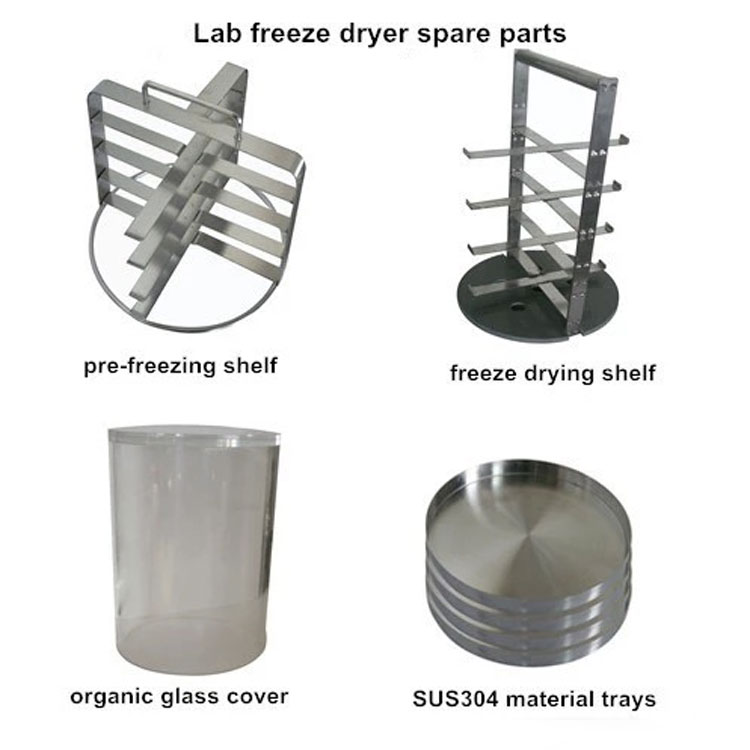

Stainless steel sample holder,common sample plate spacing adjustable
-
Small size and convenient operation
-
Optional nitrogen inflation valve
-
It applies a technical method by which moisure-bearing substances frozen in advance become dry in the cacuum owing to vaporizing away the moisure.
-
The substances frozen can be well-preserved for a long time and returned to their former state once being watered without losing their biochemical properties.
-
The freeze-drying technology is especially ideal for those bio-products sensitive to antibiotic,vaccines,blood products,enzymes and hormones.
-
This machine is also suitable for sample freezing experiments and small-scale production in labs.
-
This series can be categorized as :Normal model,Layer model,Normal model with many pumps,layer model with many pumps.
