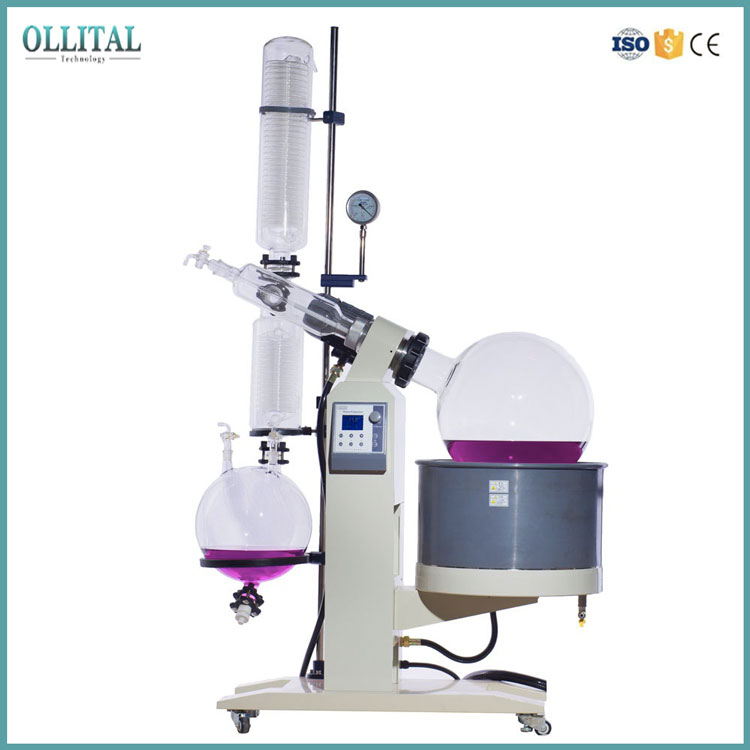

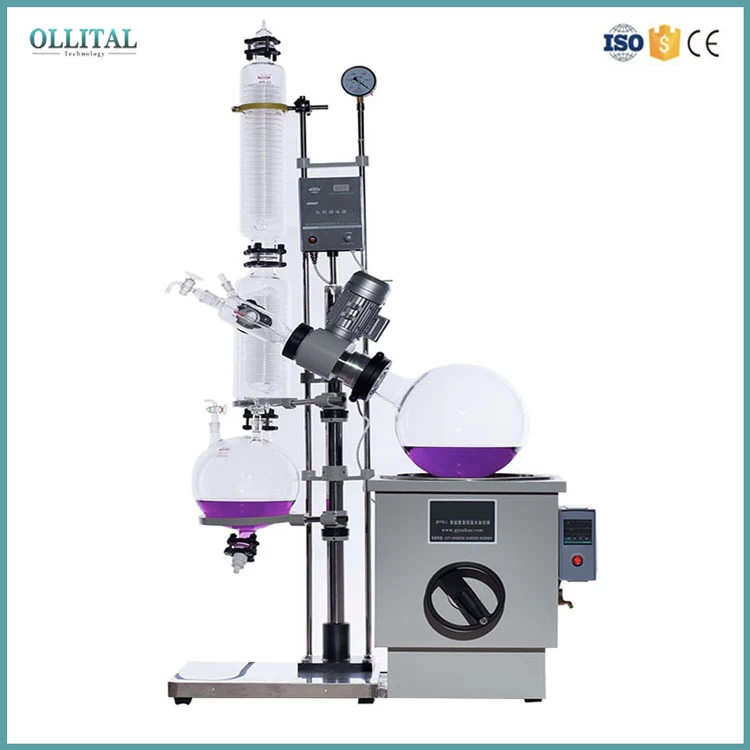

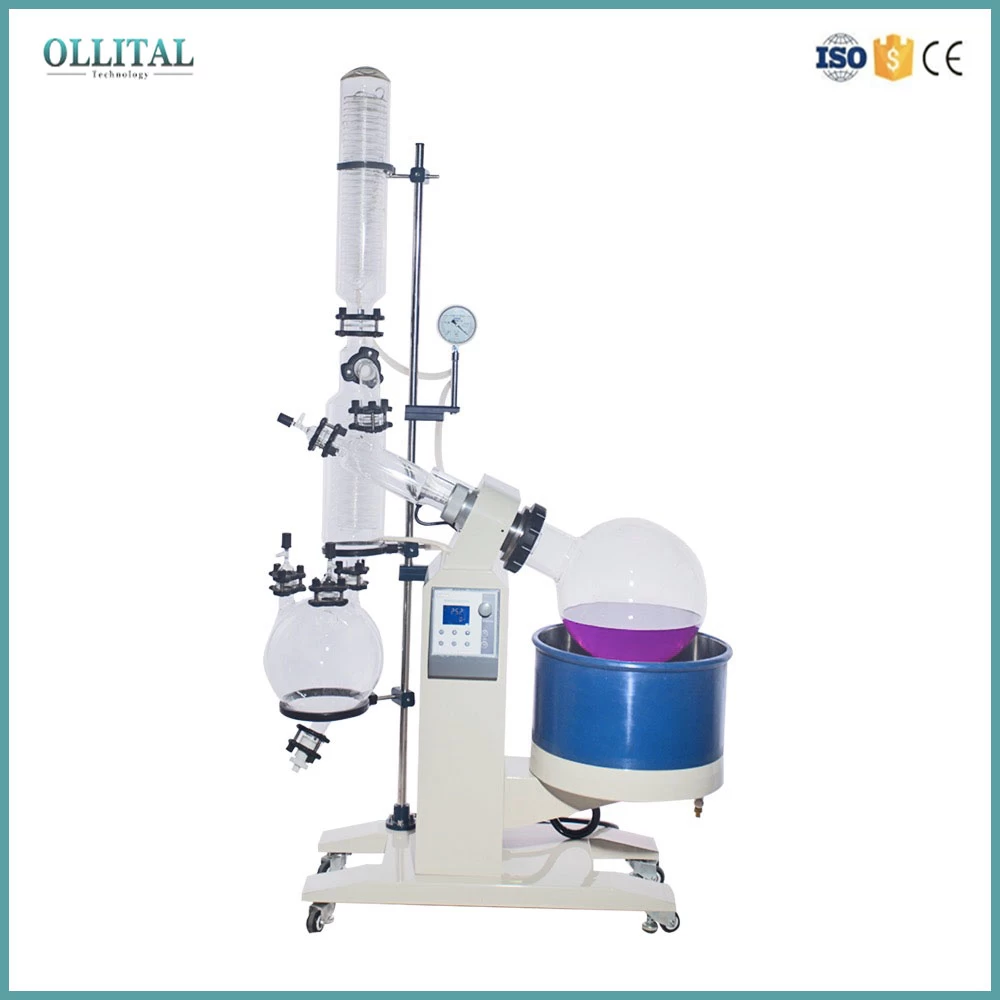

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
|
|
OLT-RE-14
|
OLT-RE-15
|
OLT-RE-16
|
OLT-RE-17
|
|
Glass Material
|
|
|
Shell Material
|
Antisepsis Plastic Spraying
|
|
Evaporating Flask (L)
|
|
|
|
|
|
Receiving Flask (L)
|
|
|
|
|
|
Rotating Speed(R/min)
|
|
|
Water(Oil) Bath Power(W)
|
|
|
|
|
|
Temperature Control Range
|
Intelligent digital/RT-399℃
|
|
Temperature Fluctuation(℃)
|
|
|
Evaporation Rate(H2O)
|
|
|
Condenser
|
The double backflow integration standard condenser
|
|
Lifting Mode
|
Manual Up and Down of Bath Kettle
|
|
Lifing Height(mm)
|
|
|
|
Voltage (V/Hz)
|
|
|
Sealing Mode
|
PTFE, Fluoro Rubber Sealing
|
Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
Standard Glassware Set includes 1.32 gallon (5 liters) round-bottomed evaporating flask, 0.79 gallon (3 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser for are great for distillation of solvents with higher boiling points.
1.use international advanced airtight system, can maintain a high degree of vacuum.Gas liquid separation, no reture.
2.The main performance of double condenser,ensuring a high recovery rate
3.the bottle with the nut connection is convenient for loading and unloading
4.The collection bottle mouth with liquid discharge valve,recovering solvent is very fast.
5.Collecting bottle is arranged with between the side condenser vacuum check valve,liquid discharge does not affect the vacuum evaporation can be continuously.
6.vacuum system with vacuum gauge, on low boiling point materials adjustable optimal working vacuum degree
7.water bath pot electronic temperature control,and can be lifted up and down.
8.Reasonable structure,materials stress. Mechanical structure using a large number of stainless steel and aluminum alloy parts.Glass parts all with GG-17 high borosilicate glass.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
