Product Name
|

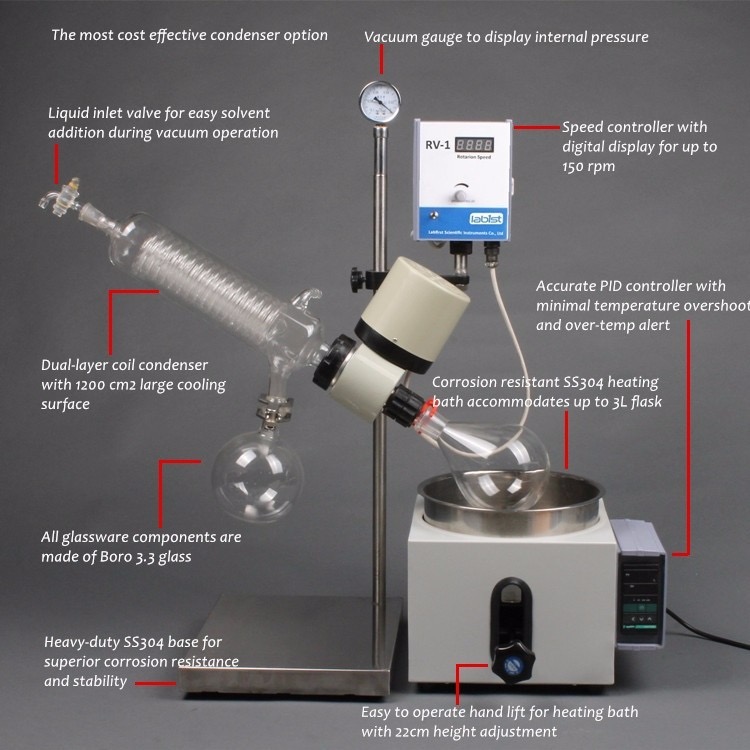

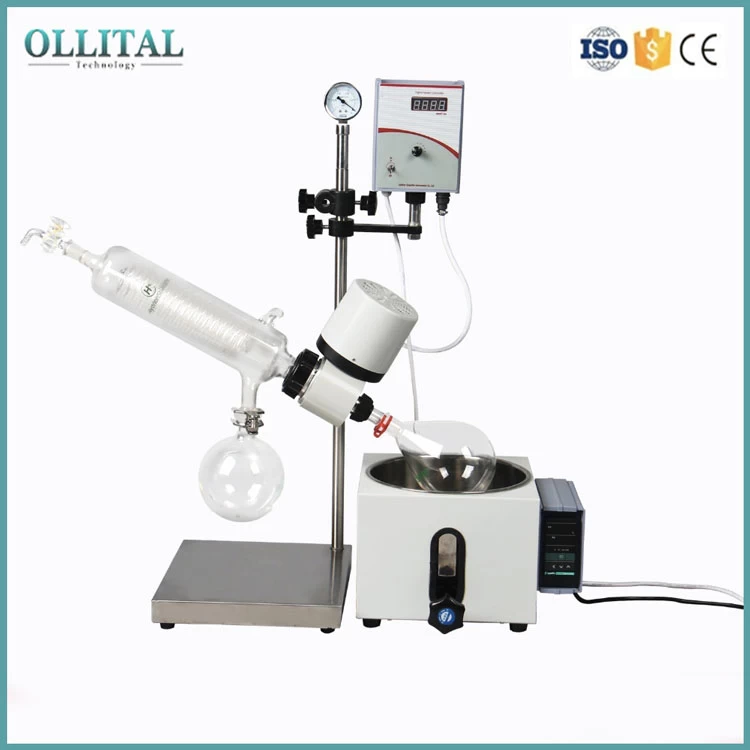

Laboratory Rotary Evaporator, Diagonal Condenser
|
|
Model Number
|
OLT-RE-9
|
|
Type
|
With Oil Bath (Hand Lift on Bath)
|
Condenser
|
Standard Diagonal 2-Layer Coil Condenser, with 10mm O.D Hose Barbs,
Cooling Surface 1200 cm2
|
|
Evaporation Flask
|
Pear-Shaped Flask 1 Liter, 29/32 Tapered Joint (Up to 3 Liter)
|
|
Vacuum Seal
|
PTFE & Viton
|
|
Height Adjustment
|
220 mm
|
|
Rotation Speed
|
Up to 150 RPM
|
|
Drive
|
AC Induction Motor with Electrical Speed Control
|
|
Heating Power
|
1.5 kW
|
|
Temperature Range
|
Up to 180C
|
|
Temperature Accuracy
|
+/- 1C
|
|
Temperature Control
|
Advanced PID Control
|
|
Bath Material
|
Stainless Steel 304
|
|
Bath Internal Dimension (D x H)
|
240mm x 130mm
|
|
Bath Internal Volume
|
5.8 Liter
|
|
Safety on Bath
|
Fuse, Timer & Digital Over-temp Limiter
|
|
Total Dimension (W x D x H)
|
780 x 360 x 850 mm
|
|
Total Weight
|
20 kg
|
|
Power Supply
|
108V-240V, 50/60Hz, 1.5 kW
|
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
